Perlisten X5w On-Wall Speaker; Each

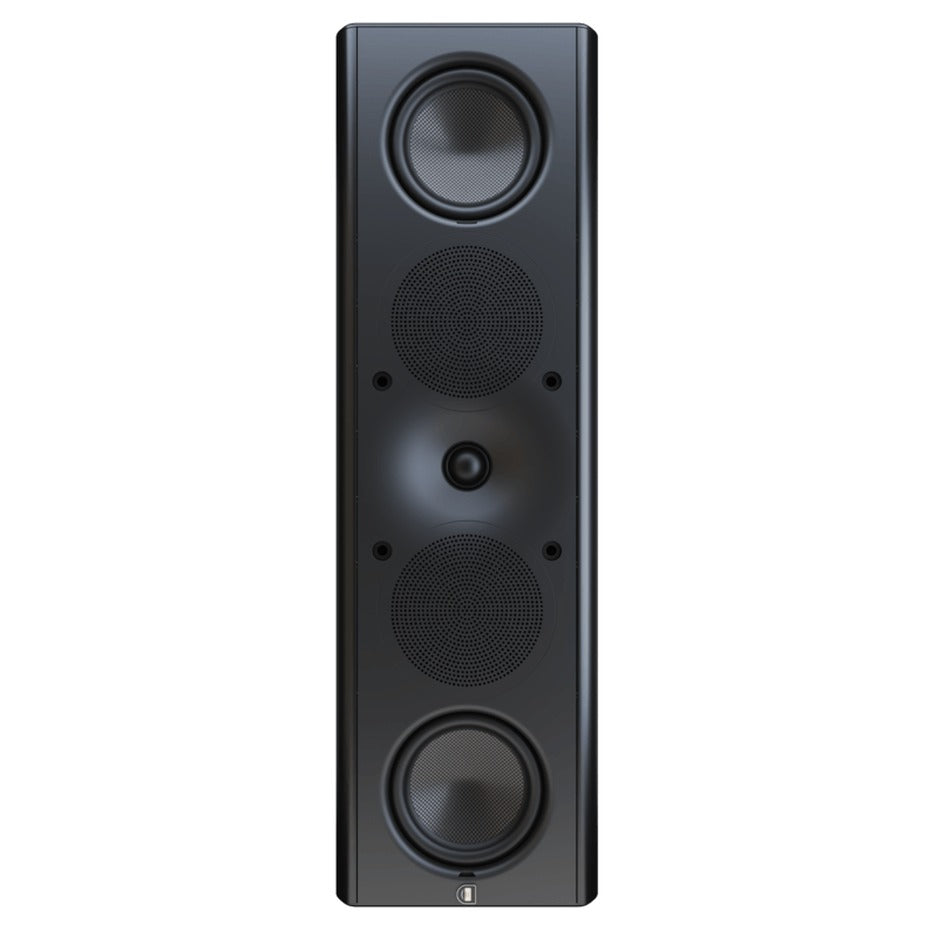

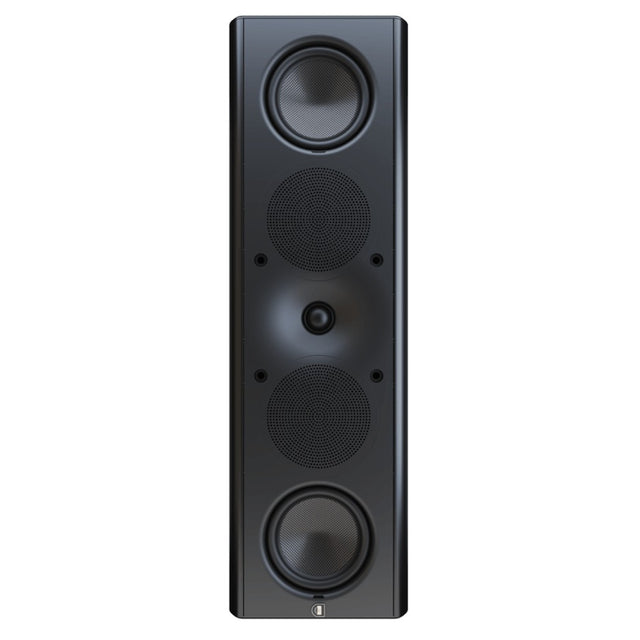

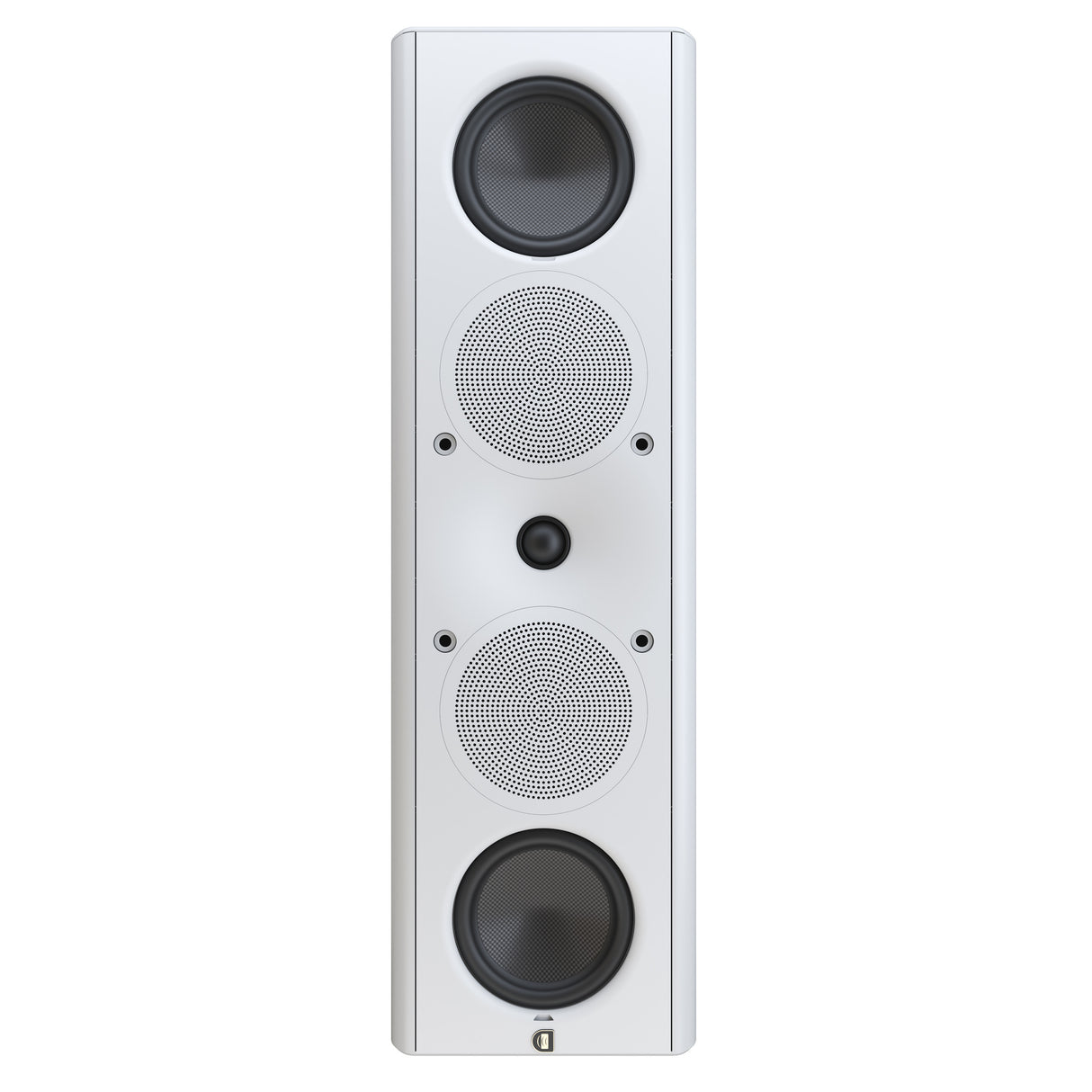

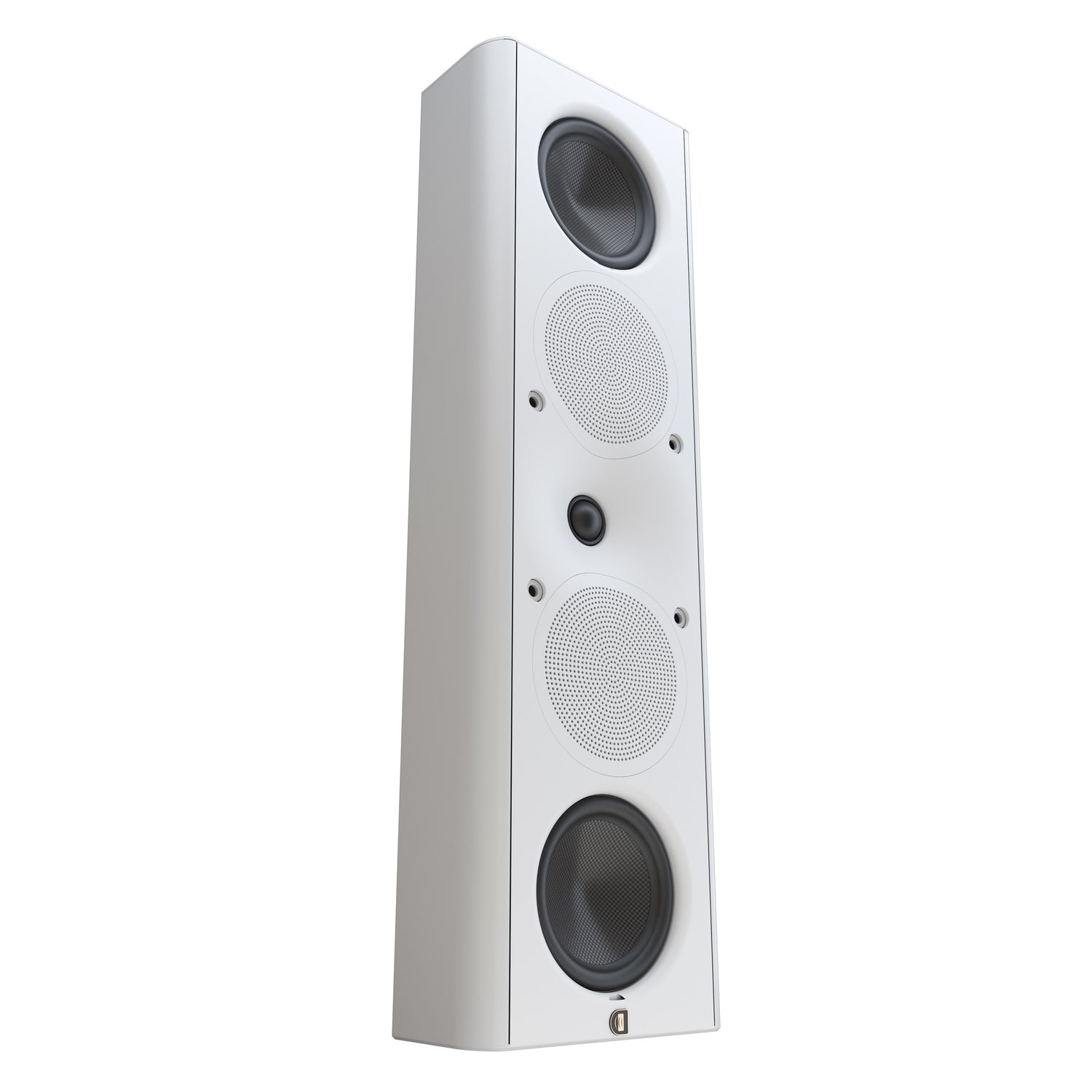

The Perlisten X5w is the flagship on-wall speaker in Perlisten's new X-Series, built around a 3-way acoustic suspension design with four 5.5" carbon fiber woofers and a 38mm silk dome tweeter in a custom waveguide, all packaged in an enclosure only 100mm deep. Per Perlisten, the X5w delivers the most precise vertical and horizontal control in the X-Series lineup.

Key Features of the Perlisten X5w

• 3-Way Acoustic Suspension: True three-way design with dedicated bass drivers, midrange drivers, and tweeter, not a stretched two-way.
• 38mm Silk Dome Tweeter: Mounted in a custom waveguide that tightly controls both vertical and horizontal dispersion, so the sound doesn't smear off-axis or splash off the ceiling.
• Four 5.5" Carbon Fiber Woofers: Two of the four are high-excursion drivers that run without the waveguide grille in front of them, giving real low-end output from a slim cabinet.
• 92dB Sensitivity: Easy to drive with typical AV receivers and modest amplifiers. 50 to 200 watts recommended.
• 100mm Depth: The full driver array fits in a cabinet 100mm deep, so a 3-way mounts flat to the wall rather than standing out from it.

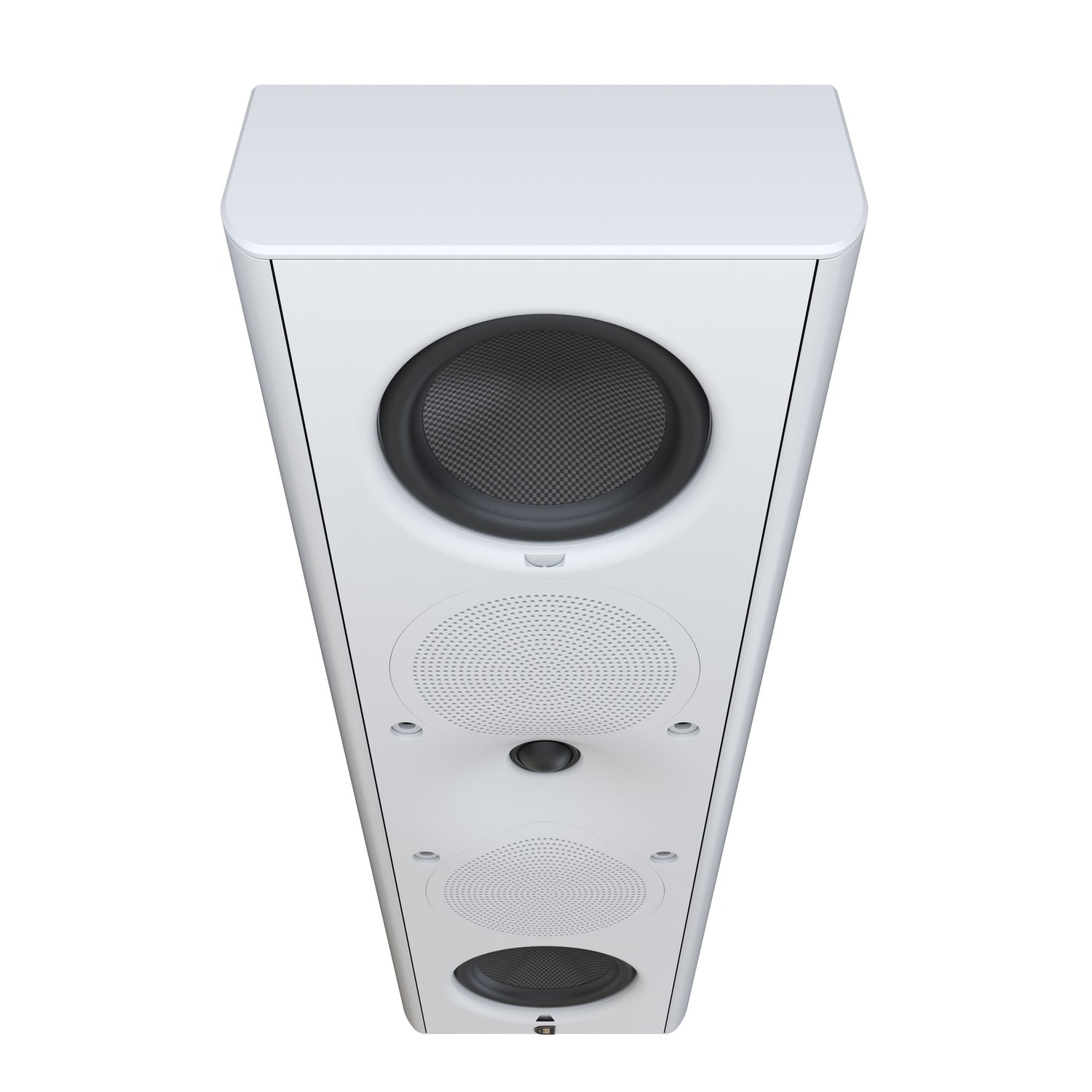

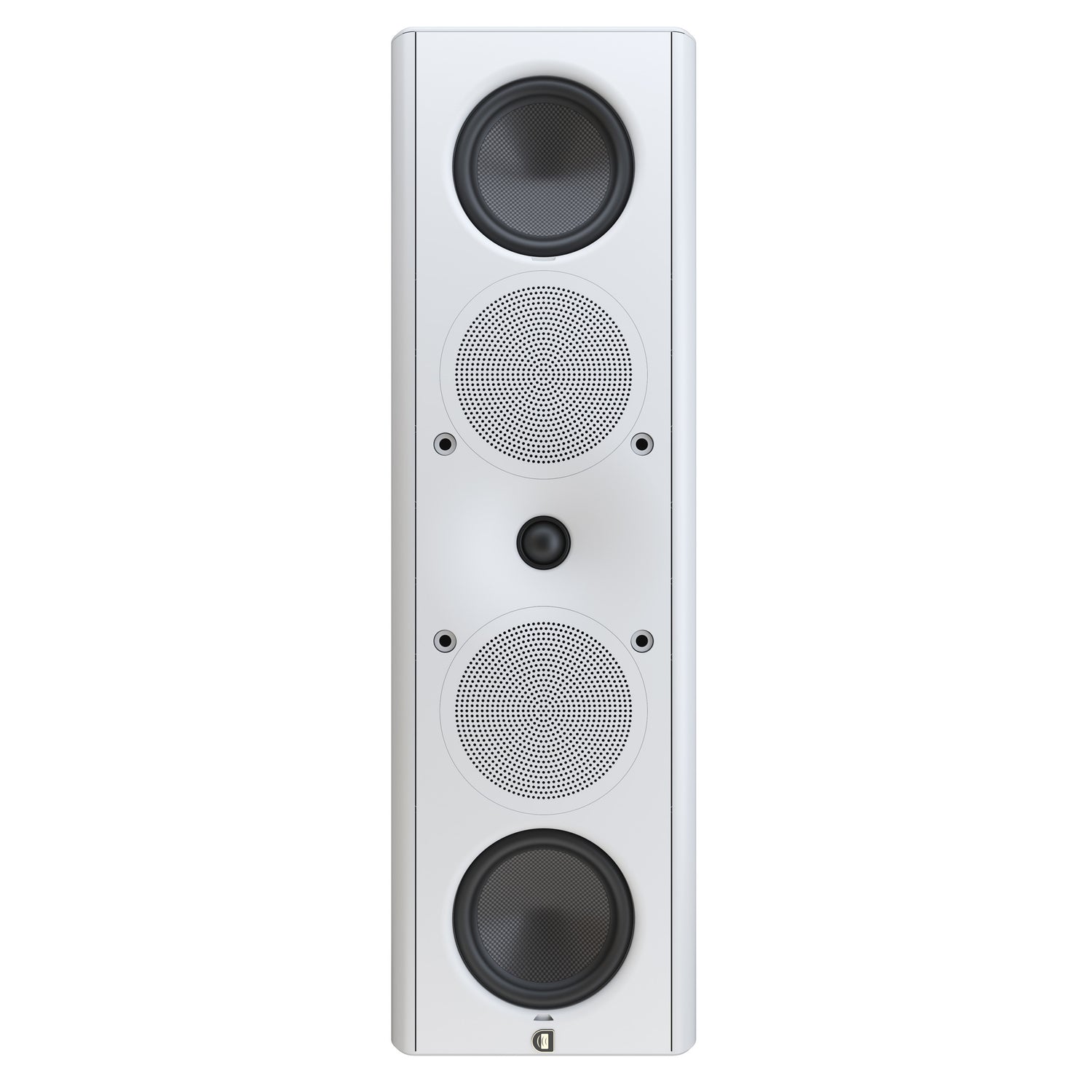

• Satin Black or Satin White: Both finishes ship with matching perforated grills.
• Full Mounting Kit Included: Wall bracket, angle bracket, and grill are all in the box.

About Perlisten Audio

Perlisten is a Wisconsin-based speaker company built by engineers from the pro-audio and home-theater worlds. Controlled horizontal and vertical dispersion is the design goal on every Perlisten speaker rather than a by-product, and the X-Series was held back until it measured the way the rest of the line does. The X-Series extends Perlisten's controlled-dispersion waveguide approach into on-wall and in-ceiling formats without the usual compromises of architectural speakers.

Controlled Directivity in a Slim Enclosure

On-wall speakers historically give up pattern control for depth. Once the cabinet shrinks, the tweeter ends up close to the wall and the midrange drivers start interacting with nearby surfaces, which smears imaging and exaggerates the room's worst bounces. The X5w's tweeter sits in a custom waveguide specified by Perlisten to control vertical and horizontal dispersion, which keeps the direct sound focused at the listener and pushes reflections into a more predictable envelope. The practical effect is a bigger sweet spot and imaging that holds up even when the speaker is mounted off-center on a wall.

Three-Way Driver Array

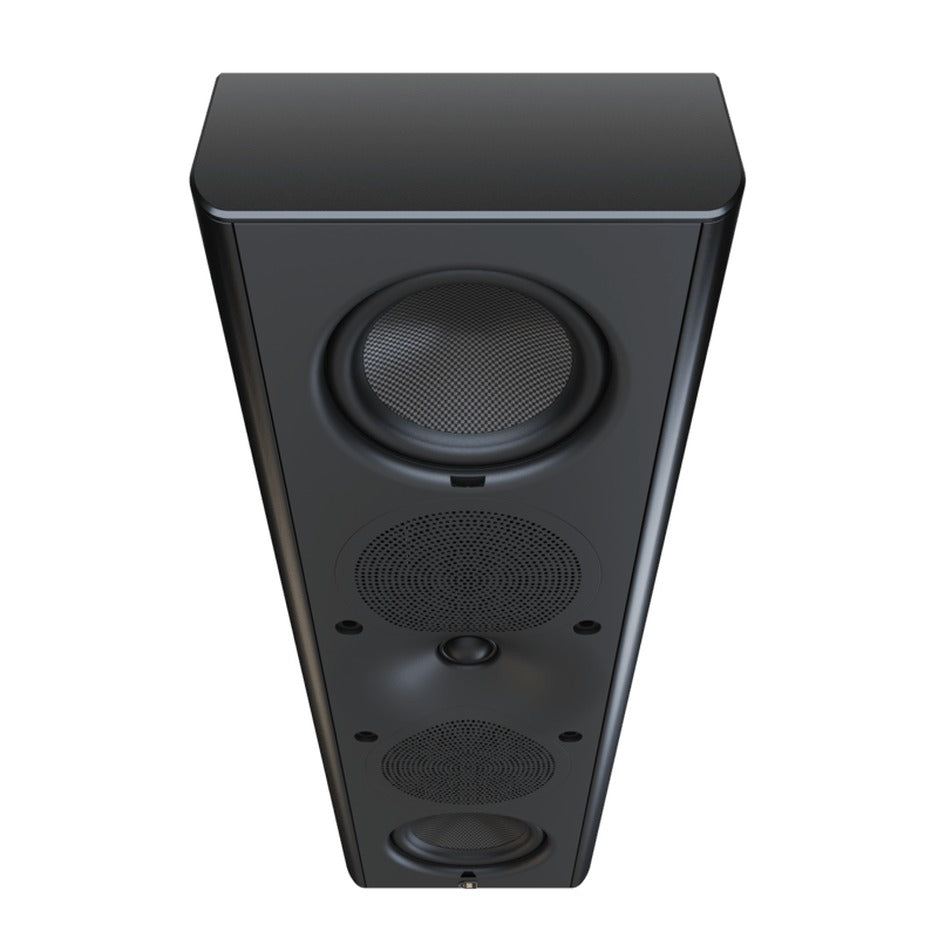

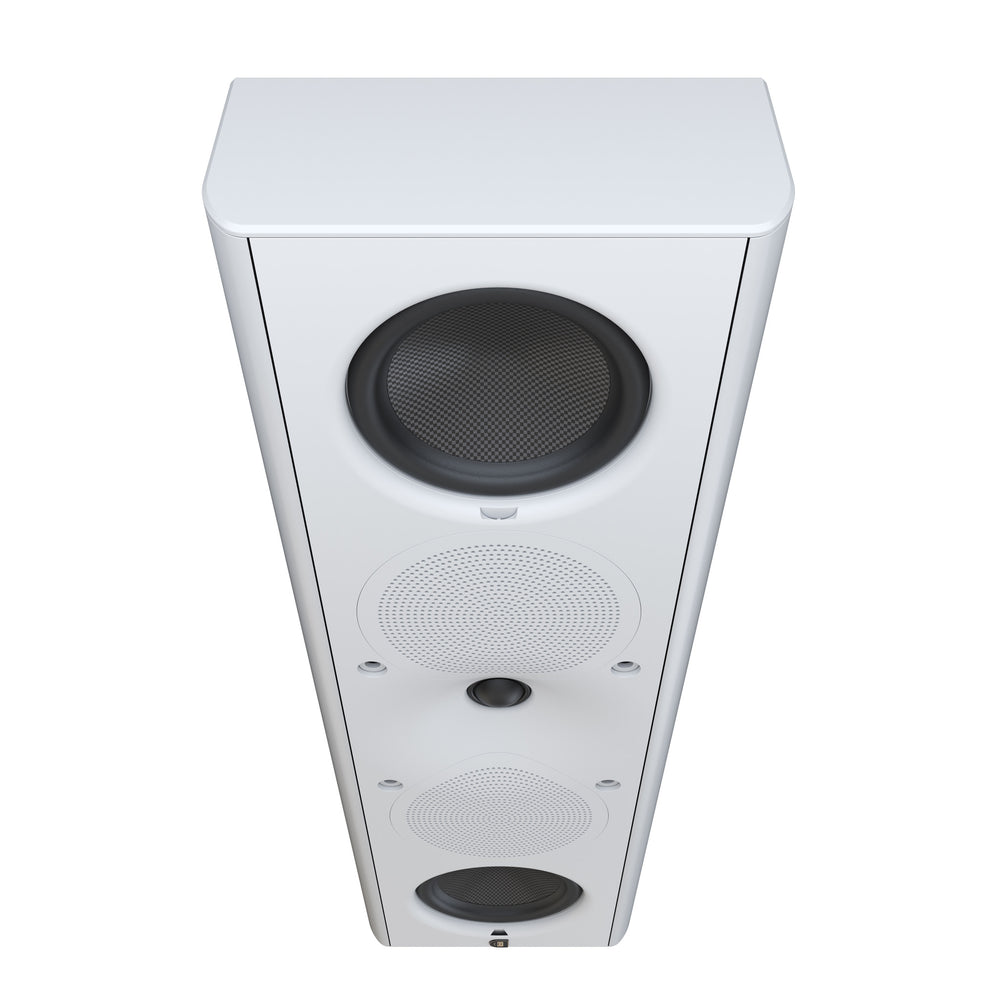

Running the X5w as a genuine three-way lets each driver work in the band where it performs best. Two of the four 5.5" carbon fiber woofers are high-excursion units that run without the waveguide grille in front of them, so the cone can travel further and generate real low-end output from a cabinet this thin. The other two sit behind the waveguide grille and handle midrange duty. The 38mm silk dome tweeter handles the top end through the custom waveguide.

Designed for Stereo, LCR, and Immersive Systems

The X5w is equally at home as a stereo pair, a front LCR array for a 4K or 8K display, or the front three channels in a 7.2.4 or Atmos system. All X-Series on-walls share the same 38mm silk dome tweeter, so mixing X-Series sizes across channels keeps the tonal character of the top end consistent. The X5w pairs with dedicated subwoofers for the low end below 60Hz.

Build, Finish, and Installation

The cabinet is 740mm tall, 200mm wide, and only 100mm deep, and it weighs 20kg. Both Satin Black and Satin White finishes are smooth and low-sheen so the speaker doesn't throw reflections back into the room or pick up glare from a projector. The mounting bracket and angle bracket in the box let you orient the speaker vertically or toe it in slightly where the room calls for it.

The grille is a replacement part rather than a fixed piece of the speaker. A Satin White cabinet ships with a white grille and a Satin Black one with black, but either can be ordered on its own, so you can mix a black grille onto a white speaker or swap out a grille that has picked up dirt.

How the X-Series On-Walls Are Built

The cabinet is aluminum on the sides and the back, with an injection-molded baffle on the front. Perlisten builds every on-wall X-Series model this way, and the enclosure is sealed, which is why the low end stops cleanly instead of loosening up against a wall.

The grille sitting over the woofer is not a cover. It is part of the waveguide. Perlisten tuned the hole size and hole spacing on every model individually, because the grille changes the impedance the woofer sees and how much the cone can travel, and the crossover has to be designed around it.

The Perlisten logo on the grille is a magnet. Lift it off and reposition it so the badge still reads correctly when the speaker is mounted horizontally.

How to Mount the X-Series

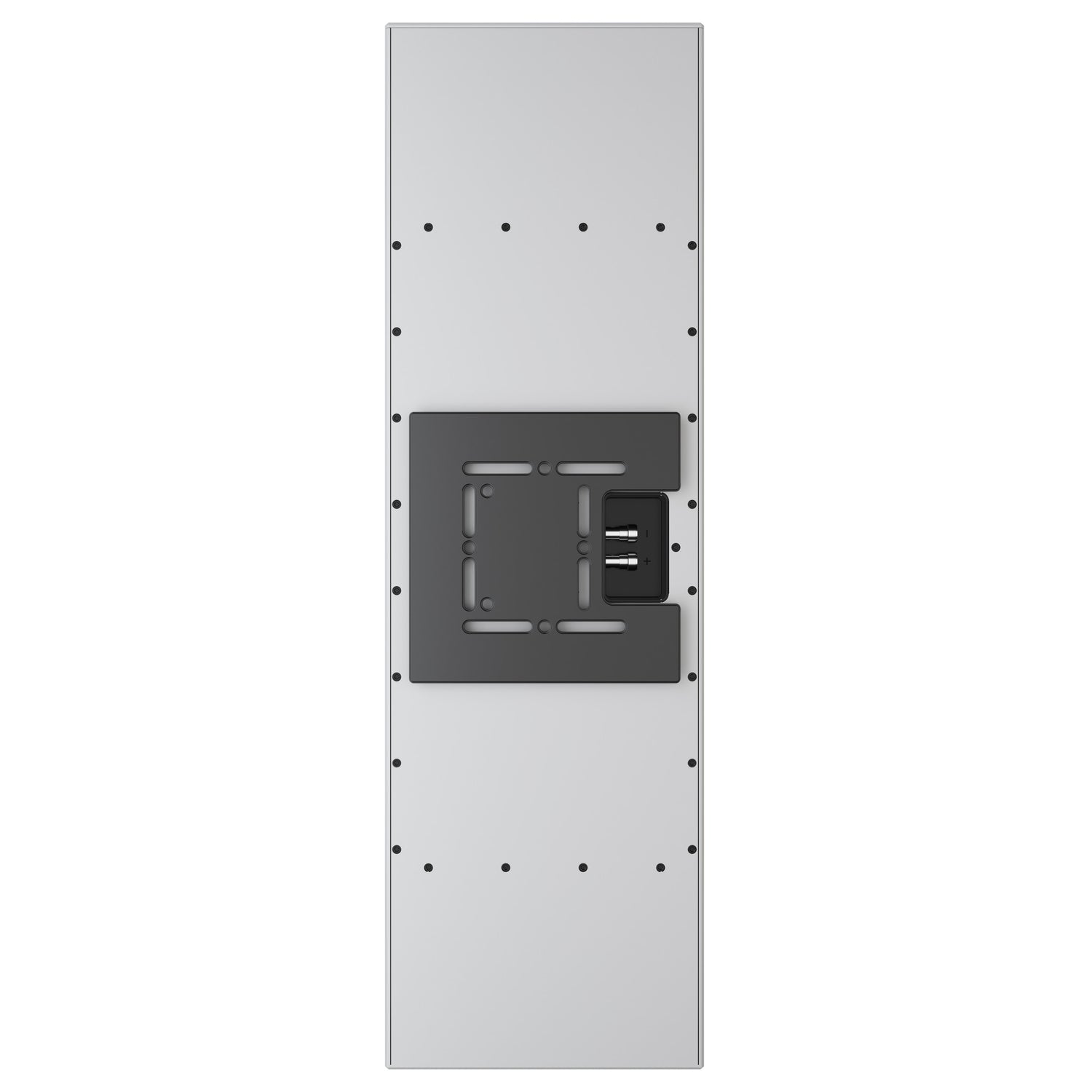

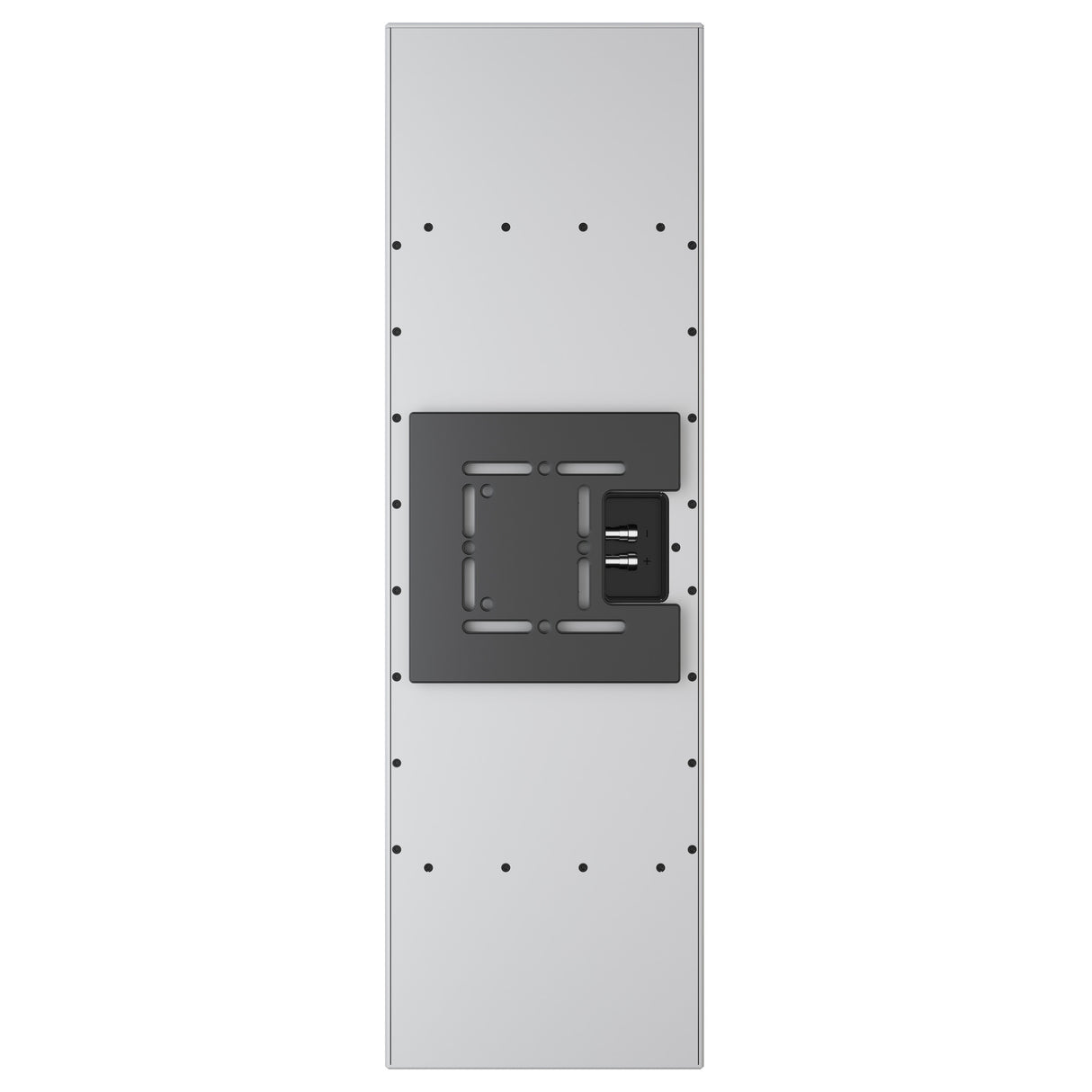

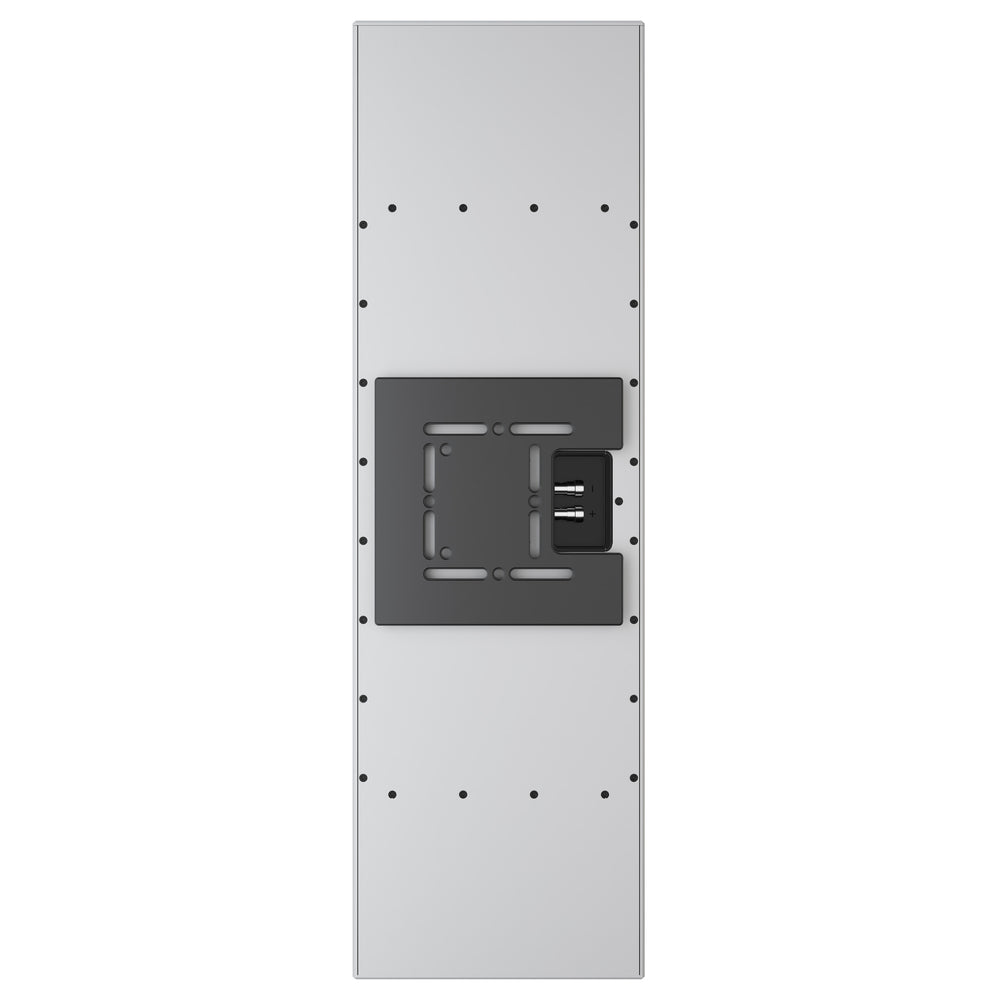

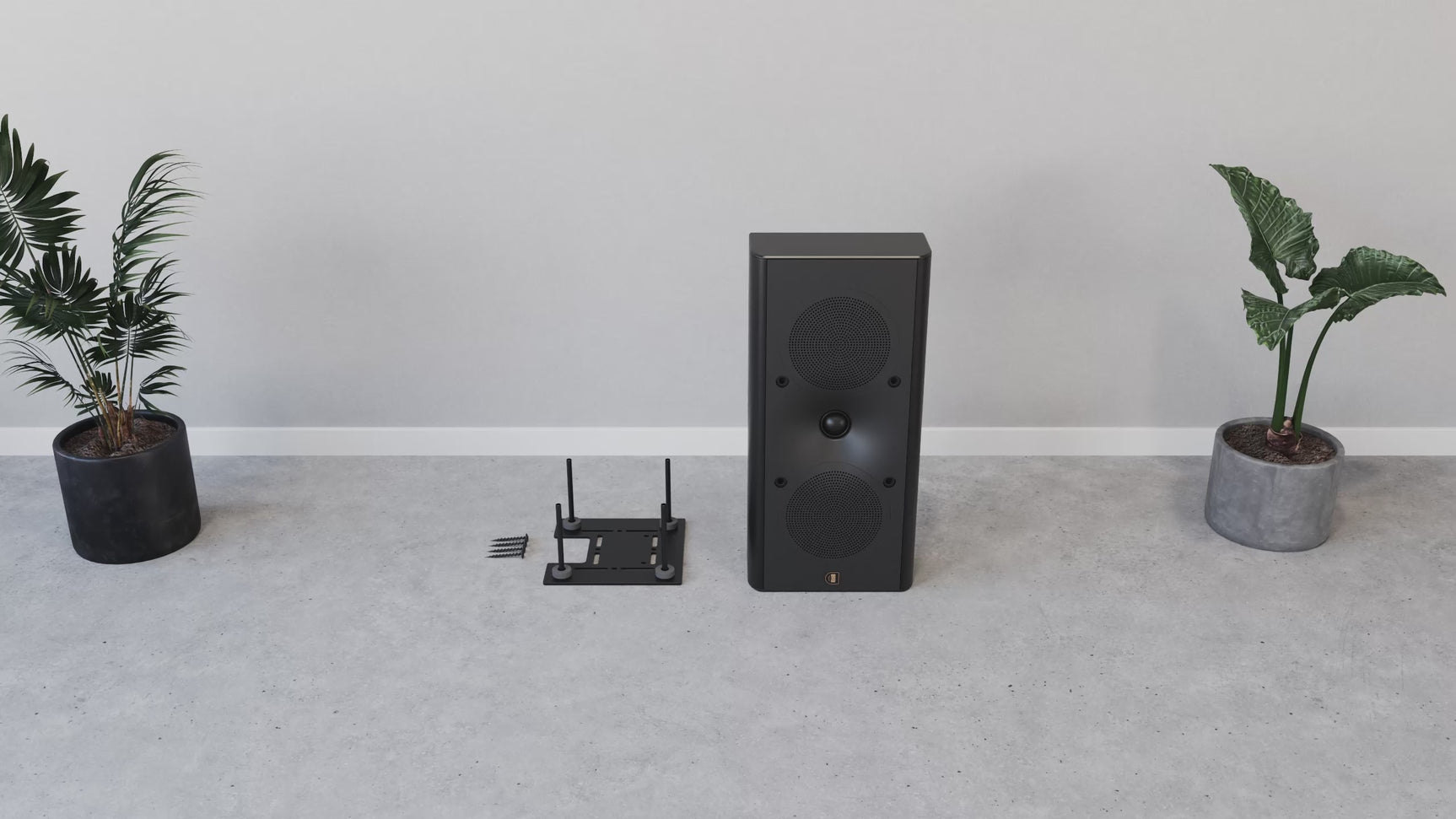

The mounting plate levels and screws to the wall first, then the speaker hooks onto the plate and sits flat against it. Perlisten's animation below runs through the sequence.

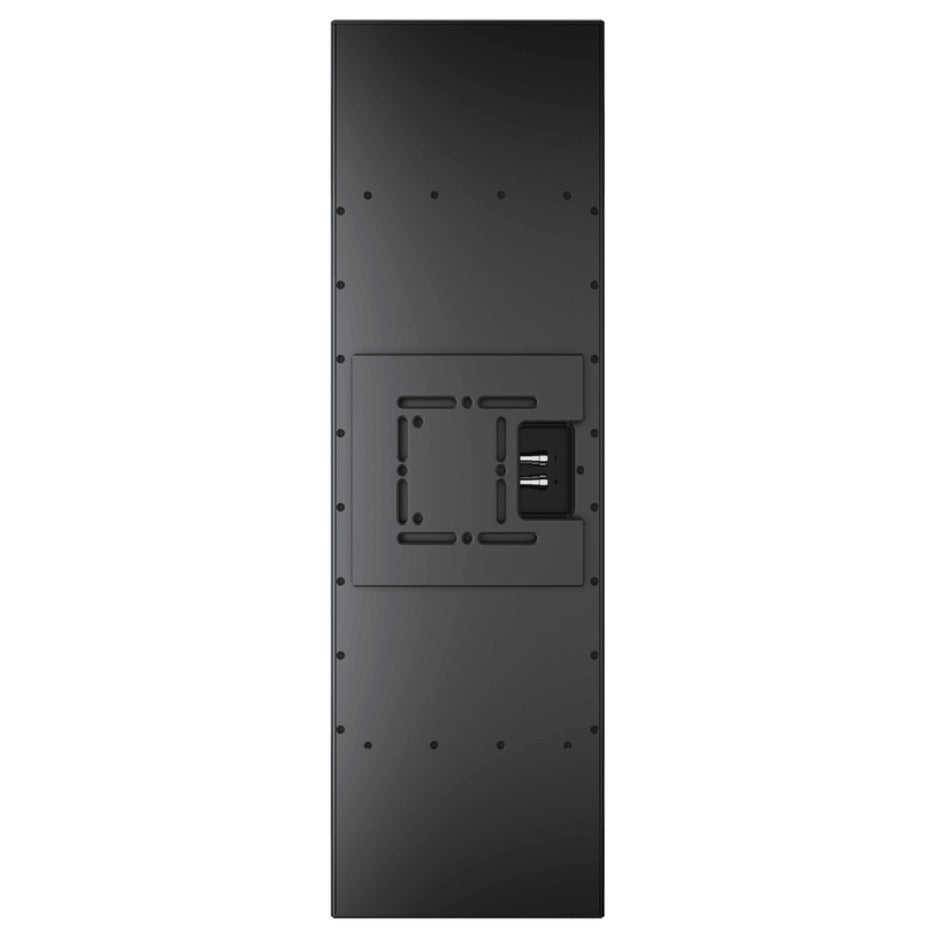

The bracket goes up first and gets levelled on its own, so the speaker is level before it is ever lifted into place. It then slides onto four posts and is held with four screws. Plastic caps are in the box to cover those four screw points, matched to the finish, which matters if you run the speakers without grilles.

A fixed 15-degree angle bracket is also included. It tilts in one direction rather than swivelling, so you rotate the bracket itself to aim the speaker: turned one way it toes in, turned another it points up or down for a speaker mounted low or high. If you use it, the angle bracket mounts to the wall first, then the four-post bracket, then the speaker. The pattern is not VESA.

Matching the X-Series With Other Perlisten Speakers

Every X-Series model shares the same tweeter and woofer hardware, so Perlisten designed the line to be mixed. Larger models across the front, smaller ones for surrounds, the X2ic overhead: any combination holds one voice, and Perlisten's measurements across the line show the same response shape from model to model.

The X-Series also voices with the A-Series, which was the starting point for its large waveguide, and with the R-Series, which uses a silk dome of its own. The S-Series is the exception. Its beryllium tweeter is a different top end, so an S-Series front stage is not the one to extend with X-Series surrounds.

Where the X-Series Fits

The X-Series is a near-field design, engineered for a normal viewing setup: a display, seating at a sensible distance, and speakers on the wall around it. In that role it measures like the rest of the Perlisten line, which is the entire point of the series.

A large dedicated theater asks for more speaker. Perlisten's answer there is the Architectural range: R-Series and S-Series in-walls and in-ceilings with bigger drivers and more of them, up to the S7i. We can help you put a front stage together from either family. Get in touch.

Pairing the X5w With a Subwoofer

Perlisten builds the X-Series to run with a subwoofer and recommends crossing over between 80 and 100Hz. Below 100Hz the roll-off is deliberately the same shape on every X-Series model, and Perlisten counts on the room adding 10 to 12dB back below that point, so the handoff to a subwoofer behaves predictably and calibration software has an easy target to work with.
