Magnepan 30.7x Planar Magnetic Floorstanding Speakers

Description

The Magnepan 30.7x is Magnepan's flagship: a four-panel, four-way planar magnetic floorstanding speaker that builds on the 30.7 with the full X-Series treatment. Every crossover component has been rebuilt with better materials, tighter tolerances, and shorter signal paths. The ribbon/quasi-ribbon driver array is unchanged, but everything between the binding posts and the panels has been rethought from scratch.

Magnepan 30.7x Key Features

Ribbon/Quasi-Ribbon Drivers: True Ribbon tweeter and quasi-ribbon midrange and bass drivers provide unmatched coherence and accuracy.
X Series Component Upgrades: High-quality copper-rich capacitors, precision-matched inductors, and silver soldered connections for reduced distortion and enhanced fidelity.
Refined Circuit Simplification: Fewer components, shorter wiring paths, and reduced mass ensure a cleaner, more precise signal.
Adjustable Midbass Control: Fine-tune the bass response to adapt to room acoustics, ensuring ideal performance in a variety of spaces.
Enhanced Imaging and Sound-Staging: Improved component matching delivers balanced left and right channels for a more natural spatial presentation.

Magnepan X-Series binding posts - upgraded Audio Research terminals

The Listening Room Exclusive Magnepan X-Series Upgrades

Magnepan builds exclusive X-Series versions for The Listening Room with custom parts and enhancements not available from any other dealer.

Audio Research binding posts for a stronger and easier cable connection.
Custom 3D printed base plates for improved stability and cleaner installation.
Enhanced QC and driver matching for tighter tolerances and more consistent performance.
Upgraded packaging on large models (2.7x, 3.7x, 20.7x, 30.7x) with one speaker per box for safer delivery.

Inside the Magnepan 30.7x: Design and Build

The 30.7x retains the striking presence of the original 30.7 while incorporating the X-Series upgrades throughout. Each of the four panels (two per side) has been re-engineered with better materials and tighter quality control.

Better Capacitors: Copper-rich polypropylene capacitors are individually tested and matched within five thousandths for perfect balance across both channels. This results in smoother frequency response and reduced signal degradation.
Better Inductors: High-gauge, air-core inductors are hand-wound and tested to ensure precise inductance values and minimal resistance, further enhancing the purity of the audio signal.
Better Wiring: The use of 15-gauge or higher solid copper wire and optimized layouts reduces overall wire mass and voltage loss, ensuring a cleaner signal path.
Silver Soldered Connections: Eliminates mechanical connections for superior signal integrity and lower distortion.
Enhanced Frame Rigidity: Cross-bracing within the frame minimizes vibrations and preserves the speaker's tonal balance.

Magnepan X-Series Crossover - hand-built with matched components

Magnepan X-Series Wiring - 15-gauge solid copper, silver soldered connections

These upgrades not only improve the speaker's overall performance but also ensure consistency and reliability in every unit.

The Magnepan 30.7x EXperience

The 30.7x offers a listening EXperience that is both precise and emotionally engaging. By simplifying the circuitry and upgrading key components, the 30.7x delivers:

Clearer Highs and Airier Treble: The refined ribbon tweeter captures subtle details with incredible speed and transparency.
More Defined Bass: Adjustable midbass control and optimized crossover design create tighter, more accurate low frequencies.
Improved Instrument Separation: Voices and instruments emerge with enhanced clarity and presence, creating a lifelike soundstage.
Perfectly Balanced Channels: Precise component matching ensures that both left and right speakers operate in harmony, delivering a cohesive and immersive sound.

The result is a speaker system that faithfully reproduces every nuance of the source material, from delicate acoustic performances to complex orchestral compositions.

Technology

The advanced ribbon and quasi-ribbon drivers at the heart of the 30.7x are complemented by the X-Series upgrades:

Capacitor and Inductor Refinements: Each component is individually tested and adjusted to achieve near-perfect specifications. This attention to detail minimizes distortion and ensures smooth frequency transitions.
Optimized Crossover Design: Simplified circuits with reduced component counts result in less signal loss and a more natural tonal balance.
Silver Soldering: Connections are free from mechanical joins, ensuring minimal resistance and superior sound integrity.
High-Quality Materials: Copper wiring, silver solder, and gilded nameplate components contribute to the speaker's performance and durability.

These advancements allow the 30.7x to deliver improved imaging, sound-staging, and overall fidelity at the highest level of planar magnetic reproduction.

Magnepan X-Series Capacitors - copper-rich polypropylene, individually tested

Style Out: Trim Options

The Magnepan 30.7x offers multiple trim options. Contact The Listening Room to discuss your preferred trim option and find the right look for your space. Custom options beyond the standard lineup are available in Gloss Black Aluminum, Red Aluminum, Acorn Oak Wood, and Bamboo Wood. Contact us for details.

The Magnepan X-Series Lineup

The 30.7x is part of the Magnepan X-Series lineup, which includes the .7x, 1.7x, 2.7x, 3.7x, 20.7x, 30.7x, and CCRx. Each model receives the same exclusive X-Series upgrades from The Listening Room.

The Listening Room Difference

We're the #1 Magnepan dealer in the world, and that's exactly why Magnepan builds exclusive X-Series versions for The Listening Room with custom parts and enhancements not available from any other dealer. We don't just sell high-end audio, we provide a level of service that's as refined as the products we offer. When you invest in a speaker like the Magnepan 30.7x, you're getting a speaker built to a higher standard, backed by a team that knows these speakers inside and out.

Owner Michael Hoaston will personally deliver the 30.7x to your home, anywhere in the country. This isn't a curbside drop-off. Mike will ensure every detail of your setup is dialed in perfectly, from room placement and panel spacing to full system integration. When you buy from The Listening Room, you're getting the expertise and dedication of someone who truly understands what it takes to bring a system to life.

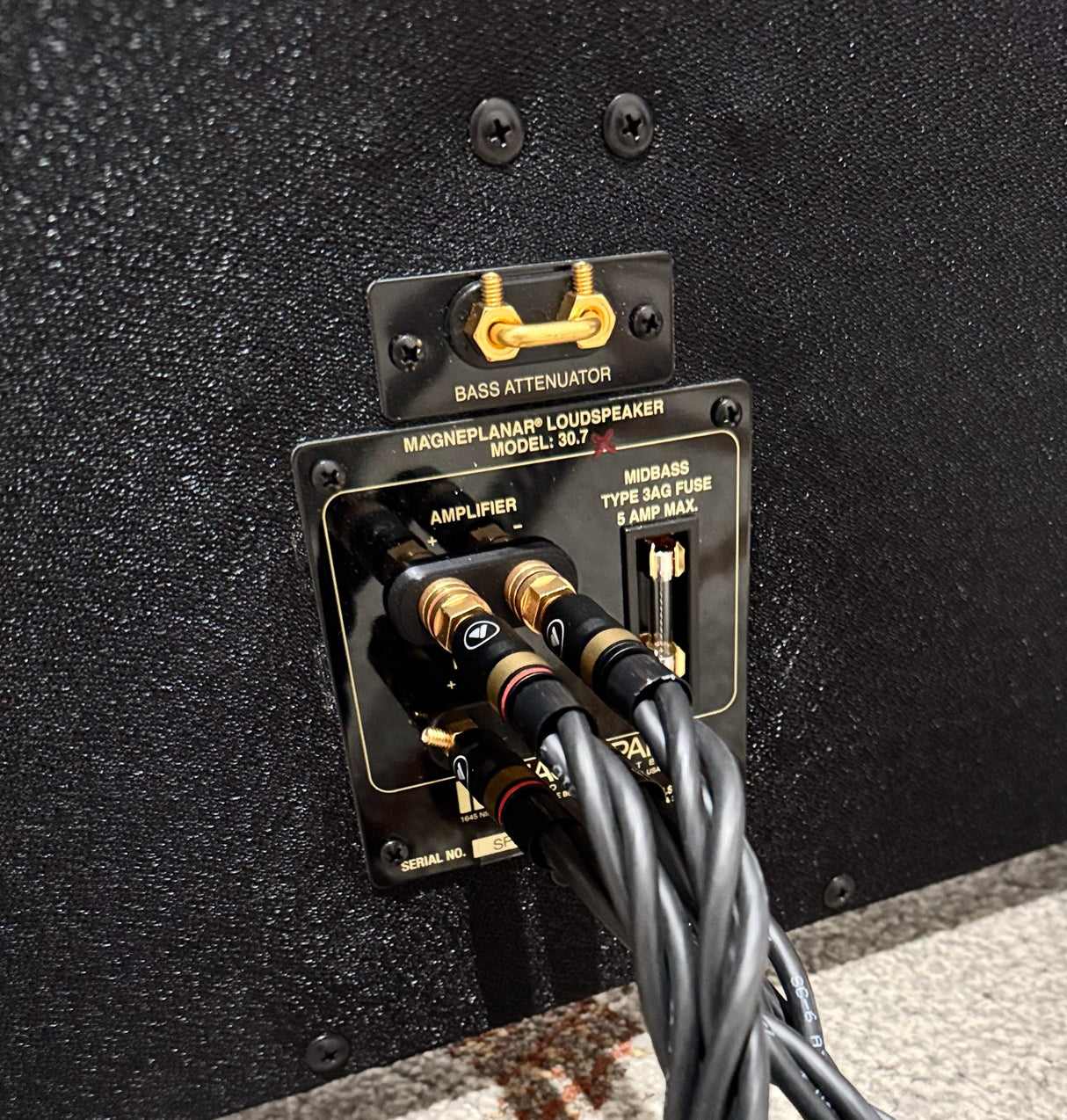

Magnepan X-Series binding post panel with cables connected - The Listening Room

Technical Specifications

Specification	Details
System Description	4-Way / True Ribbon Tweeter, Quasi-Ribbon Midrange and Bass
Frequency Response	25Hz - 40kHz
Recommended Power	See Frequently Asked Questions
Sensitivity	86dB @ 500Hz, 2.83v
Impedance	4 Ohm
Weight	88.2 lbs
Dimensions	29" W x 79" H x 2.062" D

Reviews

This is, quite simply, the most top-to-bottom coherent, highest-resolution, most astonishingly lifelike planar loudspeaker I've ever heard. On acoustic music of any kind, it is very nearly peerlessly realistic, especially through the midband, making almost everything else I'm familiar with sound a little less jaw-droppingly there. Not only are the 30.7s the handsomest-looking large Maggies of all time, they are also among the best deals Maggie has ever offered. Compared to the price of the six-figure speakers they so successfully compete against, it makes them perhaps the greatest bargain in ultra-high-end history.

Jonathan Valin and Jacob Heilbrunn,The Absolute Sound · October 2017

The 30.7s offer up close and personal listening, as in, the speakers lay bare recordings in all their glory while also projecting an expansive and entirely holistic soundstage that fills the room. What actually wowed me, even awed me, was an unbelievable and uncanny sense that the musicians were there, in their correct places, in my room. The 30.7s are among a rare breed of loudspeakers that possess the power potential to reignite the sonic passions of even the most cynical audiophile.

Julie Mullins,The Absolute Sound · November 2017

If I could only point out one of the 30.7's virtues, the one I'd choose would be the speaker's midrange. It's fast, highly transparent, and extremely resolving and yet somehow manages to sound effortless and natural at the same time. The 30.7 takes everything we have ever liked about the Magnepan sound to a whole different level, a level where both the richness and realism of recorded music are raised to extraordinary levels, all for the considerable yet oh-so-justifiable price.

Chris Martens,HiFi+ · December 2018

FAQ

Can the 30.7x work in a smaller room?

Magnepan's Wendell Diller maintains that the 30.7x can perform in modestly sized rooms, and reviewers have confirmed good results in spaces as small as 15x20 feet. However, the four-panel system (two panels per channel, each about 6.5 feet tall) has a significant physical footprint. The key is maintaining proper distance between the listener and the panels so the individual driver sections blend seamlessly. In a smaller room, placement becomes more critical but the results can still be spectacular.

How do you set up the 30.7x four-panel system?

Each channel of the 30.7x consists of two panels: a wider bass/midbass panel and a narrower midrange/high-frequency panel with the True Ribbon Tweeter. The tweeter panel must not be closer to the listener than the bass panel. Start with the panels 4-5 feet from the front wall, spaced about 8 feet apart, and adjust in 6-inch increments. The goal is for both panels per channel to merge into a single, coherent sound source from the listening position.

What amplifier power is needed for the 30.7x?

The 30.7x demands premium amplification with serious current reserves. A minimum of 300 watts per channel into 4 ohms is recommended, with monoblock configurations preferred. Audia Flight Strumento monoblocks and Kora CSA monoblocks are purpose-built for loads like this. These speakers reveal everything in the chain, so amplifier quality is just as important as power. Call or text Mike at 410-239-2020 for system matching at this level.

Is the 30.7x worth it over the 20.7x?

The 30.7x is Magnepan's flagship for a reason. The four-panel, four-way design with dedicated bass and midrange/treble panels per channel achieves a level of top-to-bottom coherence, resolution, and lifelike presence that even the excellent 20.7x cannot match. The Absolute Sound named the 30.7 their Overall Product of the Year. If your room and system can support them, they compete with speakers costing three to five times their price.

What makes the 30.7x different from the standard 30.7?

The 30.7x receives the full X-Series treatment: overhauled crossover with copper-rich polypropylene capacitors matched to 0.005% between channels, precision-wound copper coils, 15-gauge solid copper wiring with shortened signal paths, and silver-soldered connections throughout. On a speaker as resolving as the 30.7, these improvements in component quality and channel matching translate directly into tighter imaging, lower noise floor, and more precise instrument placement.

How long do Magnepan 30.7x speakers last?

Magnepan speakers are engineered for 20-30+ years of service, with some models still performing after 40 years. The 30.7x uses the same durable planar construction Magnepan has refined over five decades. Magnepan offers factory refurbishment for older models and sells repair kits for DIY restoration. The 30.7x carries a 3-year limited warranty to the original purchaser.
