Perlisten DSPx Active Digital Crossover

The Perlisten DSPx is an active digital crossover built so your subwoofers and main speakers arrive at your ears at the same instant. It takes a stereo signal in, hands the mains a high-passed feed and up to four subwoofers their own low-passed outputs, and lets you delay the main speakers to match the subs, something a subwoofer's own DSP cannot do. It works with any speakers, Perlisten or not. Price and delivery are still to be confirmed.

Key Features of the Perlisten DSPx

• Stereo in, 2.4 out: left and right mains plus four independent subwoofer outputs from one box
• True delay on the main speakers, equal at every frequency, so the subs and the mains land at the listening seat together
• Digital and analog on both ends: AES3 or S/PDIF in, balanced or unbalanced analog in, and analog or digital out in any combination
• Proper crossover filters: Butterworth, Bessel or Linkwitz-Riley on the mains and on each sub output, with frequency, gain, delay, phase and polarity per channel
• Setup tools on board: noise and tone generators, a bypass to hear before and after, peak hold, and input and output gain to match 2 V to 14 V sources
• Touchscreen now, app to follow, and a quoted 120 dB signal-to-noise figure
• Works with any speakers: Perlisten shows it under its own subwoofers, but the crossover does not care whose mains it is feeding

What the Perlisten DSPx Does

A subwoofer's built-in DSP can only change what the subwoofer does. It cannot touch the main speakers, so the mains keep running full range and overlap the subs through the whole bass region. The DSPx sits ahead of the amplifiers and works on both sides of the handoff at once: it high-passes the mains, low-passes each subwoofer, and, most importantly, sets when each half of the signal arrives. Walt Zerbe, Perlisten's Director of Global Business, describes "a product made for the stereo world," built "so you can properly integrate subwoofers with main speakers."

Why You Delay the Mains, Not the Subs

Bass from a subwoofer reaches your seat later than the same note from the main speakers. Group delay climbs as frequency drops, the subwoofer's own processing adds latency, and the subs are usually behind the mains or in a corner. You cannot make the subwoofer earlier, so the only fix is to hold the mains back until the two line up. That is what the DSPx does: it delays the mains, not the woofers, until both arrive at the seat at the same time. In Perlisten's own demonstrations, that single change does more for how drums and bass feel than any phase or level adjustment.

Delay Is Not Phase

Most subwoofers offer a phase control and call it delay. It is not. A phase shift is different at every frequency and changes again when you move the crossover point, so it can make the response sum nicely on a graph while the sub still arrives late. The DSPx applies pure time delay, the same at every frequency, on the mains and on each subwoofer output, which very few subwoofers offer. In one Perlisten show demonstration the subs measured 20 milliseconds behind the mains; delaying the mains by 23 milliseconds put all four subs and the mains at the seat together.

Connections, Filters and Setup Tools

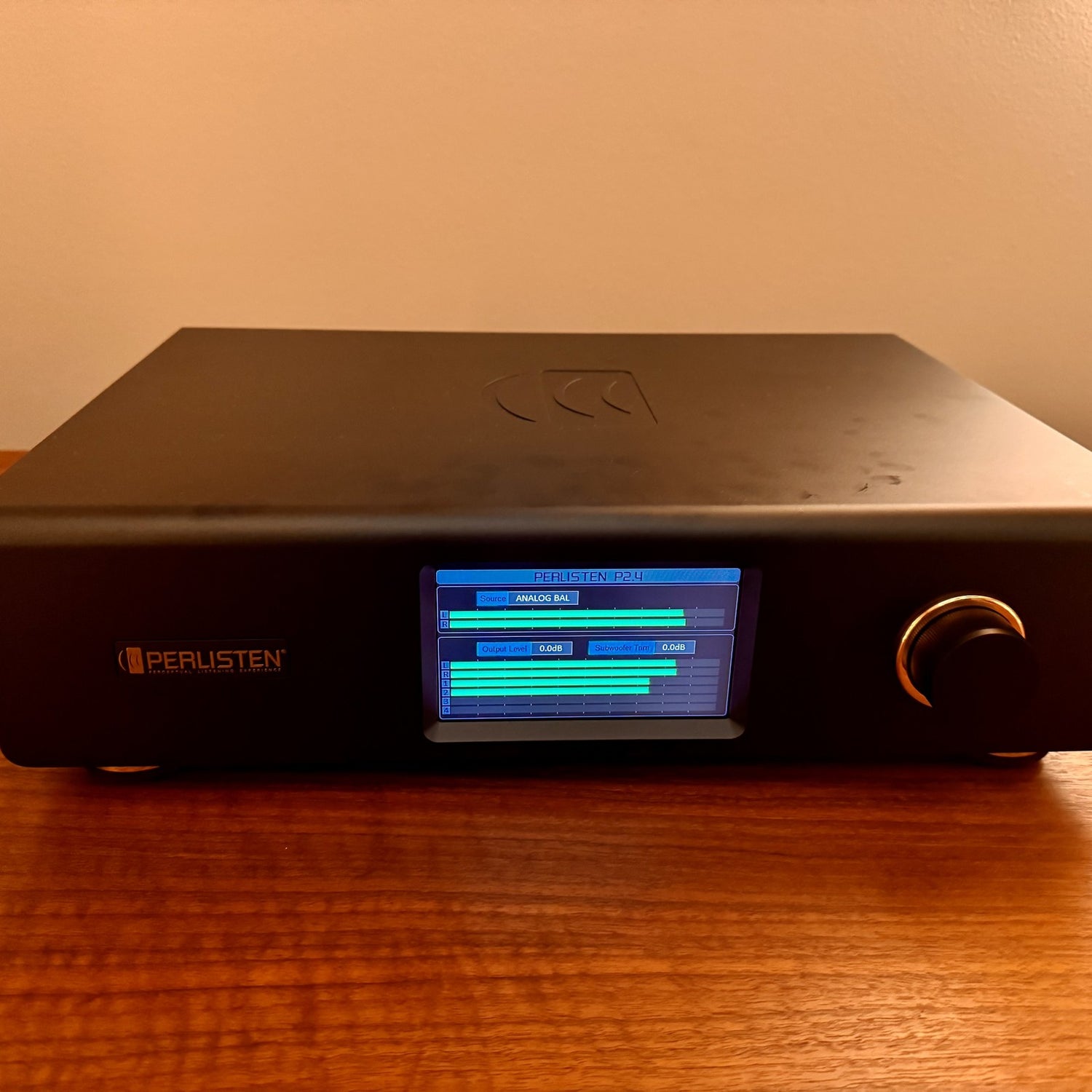

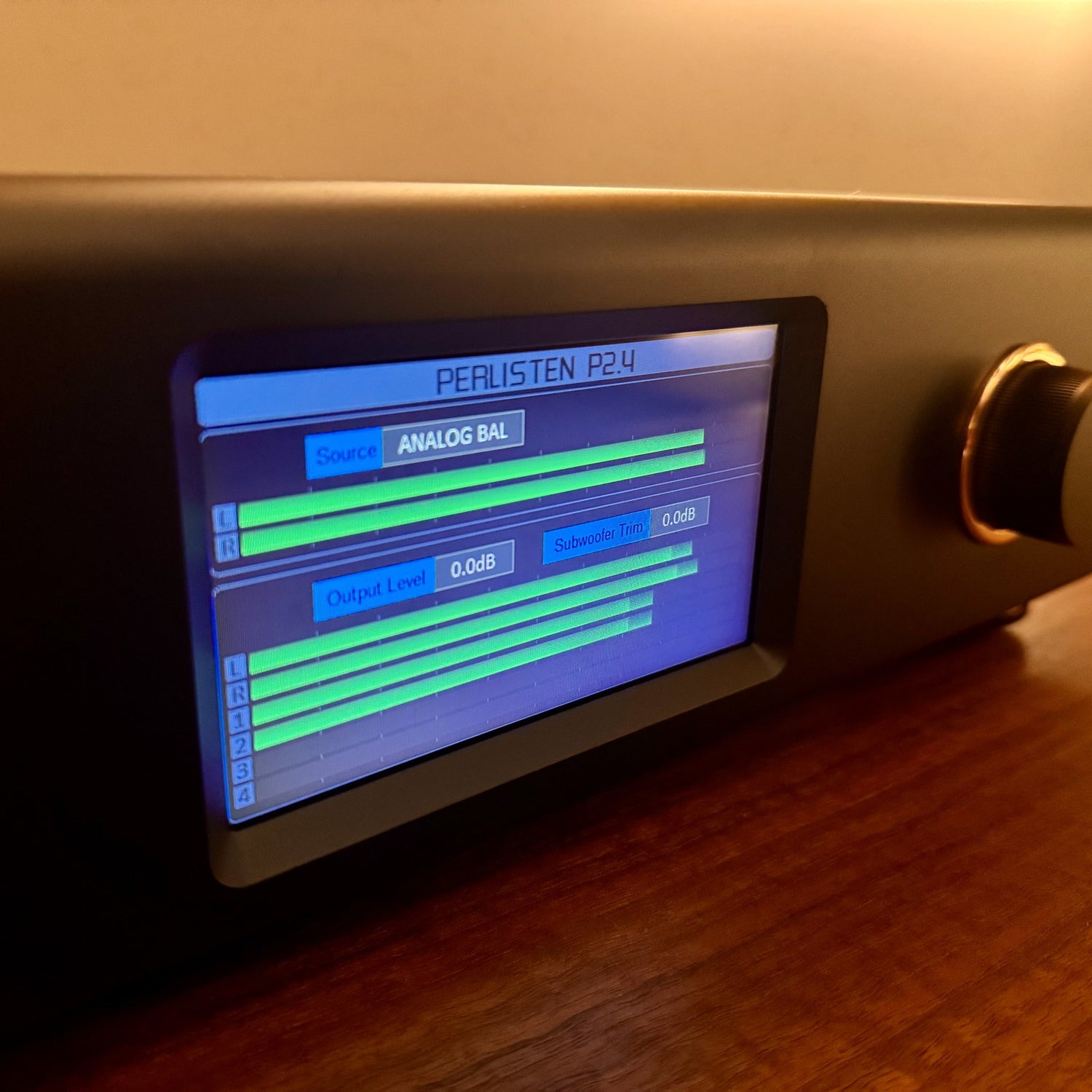

The back panel takes AES3 digital (S/PDIF works on the same input), balanced analog and unbalanced analog, and the outputs can be analog or digital regardless of which input you chose. From the front-panel touchscreen you pick the input, choose a filter family (Butterworth, Bessel or Linkwitz-Riley) and slope for the mains and for each of the four subwoofer outputs, and set frequency, gain, delay, phase and polarity per channel. Parametric EQ is available on the mains and on each subwoofer output, with individual gain per sub. Input and output gain are adjustable so a 2 V preamp and a 14 V preamp both land at the right level. There is a noise generator and a tone generator for measuring, a bypass so you can hear the system with and without the filtering, and peak hold. A full app is planned; the touchscreen runs everything today.

Room Correction, Applied Before the Amplifiers

Time alignment is the headline, but the DSPx also carries room correction. Every room adds peaks and dips in the bass that no speaker can design its way around, and a correction stage that sees the whole system can address them where they start. Perlisten has not yet published how the correction is measured or applied beyond the parametric EQ on the mains and subwoofer outputs, so we are not going to guess. What Perlisten has said is that the DSPx means "having some room correction in there," for the imperfect rooms it points out we all listen in.

Proven Under Perlisten's Own Speakers

This is not a slide-deck product. The DSPx has been running in Perlisten's own two-channel listening room, and Perlisten has demonstrated it in public managing four D8is subwoofers around a listening area beneath a pair of S7t Black Edition towers, mains high-passed in the 60 to 75 Hz range and the DSPx handling the time alignment for all four subs. That is the use case it was built for: several subwoofers, one set of mains, and every driver arriving on the same beat. Perlisten has been taking the prototype to shows to find out what works and what needs improving before it ships.

Where the DSPx Fits in the Perlisten Line

The DSPx is the piece that ties Perlisten subwoofers to whatever sits above them. Perlisten has shown it with the big S-Series towers and four subs, and in a far smaller footprint with the X5w on-wall speaker and the D3is on-wall subwoofer, where the whole system disappears into the wall. It is not limited to Perlisten, either: the crossover does not care whose speakers it is feeding, so it earns its place in any system running subwoofers. Browse the full range of Perlisten subwoofers to plan the system around it.

The Listening Room Difference

We're a third-generation family business with a brick-and-mortar showroom in Chestertown, Maryland, and a reputation built on exceptional service and relentless passion for hifi. Whether you're visiting in person or ordering online, we bring decades of experience, personalized service, and honest guidance to every interaction. We don't just ship boxes. We help build systems, answer your questions like real humans, and make sure every detail of your setup is right, from the cables to the final connection. Our passion is helping you get the most out of your gear, with support that lasts well beyond the sale.

Perlisten DSPx Specifications

Final specifications, connectivity and pricing will be confirmed when Perlisten releases the production unit. Add your email above and we will tell you the day it lands.
