Grimm Audio LS1i USB Interface

The Grimm Audio LS1i is the USB bridge between your computer and the LS1 loudspeaker system. It delivers two-channel digital audio over USB at resolutions up to 384 kHz/24-bit PCM (DXD), DSD64, and DSD128, while also serving as the configuration and firmware update interface for the entire LS1 system. An AES/EBU output lets you route the same digital signal to an external DAC or audio meter.

Key Features of the Grimm Audio LS1i USB Interface

• High-Resolution USB Audio: PCM up to 384 kHz/24-bit (DXD), DSD64, and DSD128. Native support on Mac and Linux; Windows driver available.
• System Configuration: Connect to a Mac, PC, or Linux computer to access all LS1 system parameters through the LS1 Control software.
• AES/EBU Digital Output: Routes the USB audio signal to an XLR output for connection to external DACs, digital meters, or other AES-equipped devices.
• Firmware Updates: Required interface for LS1 system firmware updates.

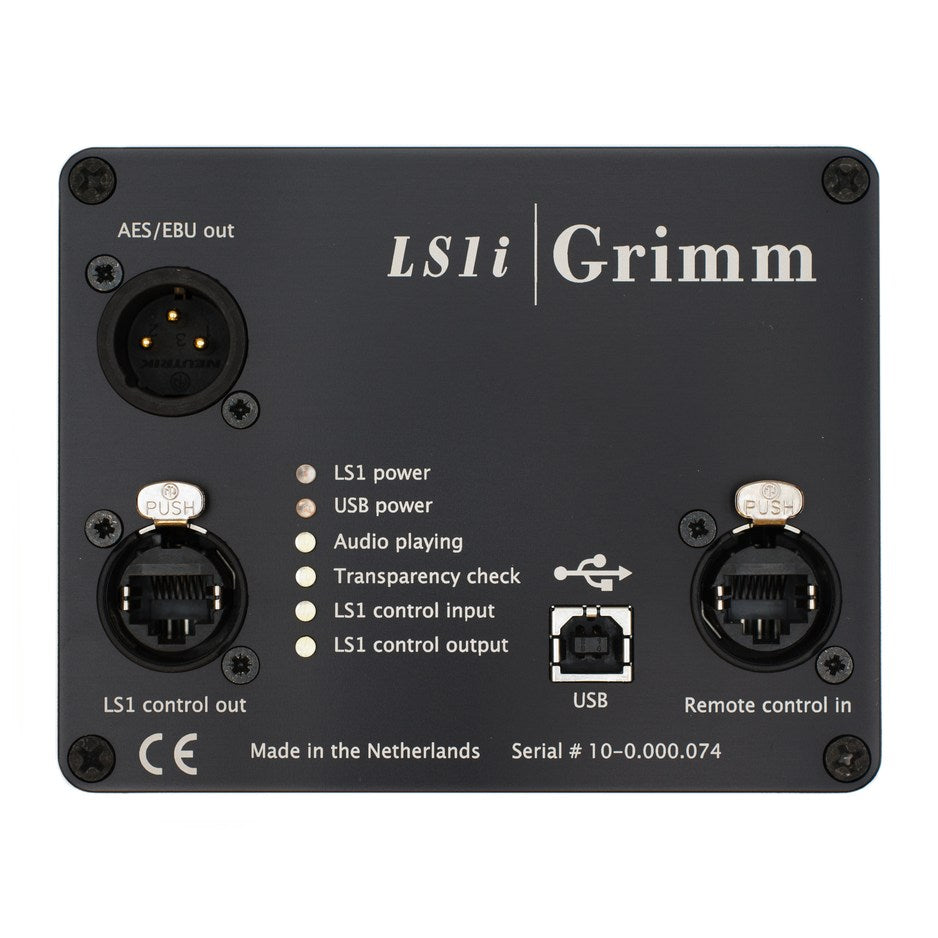

• Status LEDs: Front panel indicators for LS1 power, USB power, audio playing, transparency check, and control link status.

Compatibility

The LS1i connects to the LS1c, LS1v2, and LS1a loudspeakers via a proprietary CAT5 cable carrying both audio and control data. It works alongside the LS1r remote controller, connecting through the LS1r's "Remote Control In" port. For streaming, pair the LS1 system with the MU1 or MU2.

The Listening Room Difference

We're a third-generation family business with a brick-and-mortar showroom in Chestertown, Maryland, and a reputation built on exceptional service and relentless passion for hifi. Whether you're visiting in person or ordering online, we bring decades of experience, personalized service, and honest guidance to every interaction. We don't just ship boxes. We help build systems, answer your questions like real humans, and make sure every detail of your setup is right, from the cables to the final connection. Our passion is helping you get the most out of your gear, with support that lasts well beyond the sale.

Grimm Audio LS1i USB Interface Specifications
