Magnepan Replacement Fuses
Genuine Magnepan replacement fuses, the same Eaton/Bussmann fast-blow fuses Magnepan fits at the factory. Each order ships as a matched set of two, one fuse for each speaker in your pair. This is the part that stands between a power spike and a burned-out ribbon or midrange element, rated to the value Magnepan specified for your model.
Why a genuine fuse matters

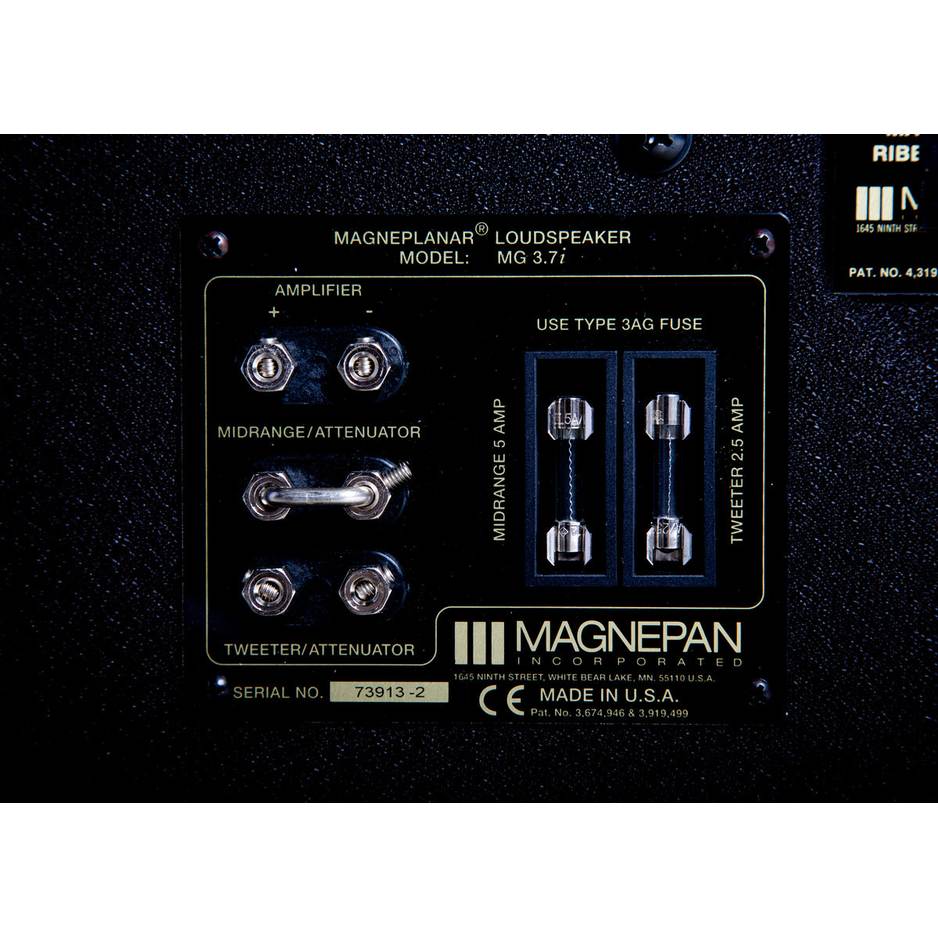

The fuse in a Magnepan is not a place to experiment. Magnepan ships every speaker with Eaton/Bussmann fuses, the certified industry standard, and the terminal plate on the back of your speaker states the maximum value it will accept. Fit the wrong value, a slow-blow where a fast-blow belongs, or bypass the fuse entirely, and you remove the one thing protecting the driver. A blown fuse is a cheap fix. A melted ribbon is a repair bill. We would rather sell you the correct fuse and earn your business on service than watch a bypass mod cost you a panel.
Find your model, order that value
Every fuse ships in a set of two. Models that use two different values (a midrange fuse and a separate tweeter fuse) need one set of each. For example, a pair of MG-3.7 takes one 5 amp set for the midrange and one 2.5 amp set for the tweeter. Models with a single fuse list it under Tweeter, with Midrange marked N/A. The x and i variants of a model use the same value as the base model (a 1.7, 1.7i, and 1.7x all take the same fuse).

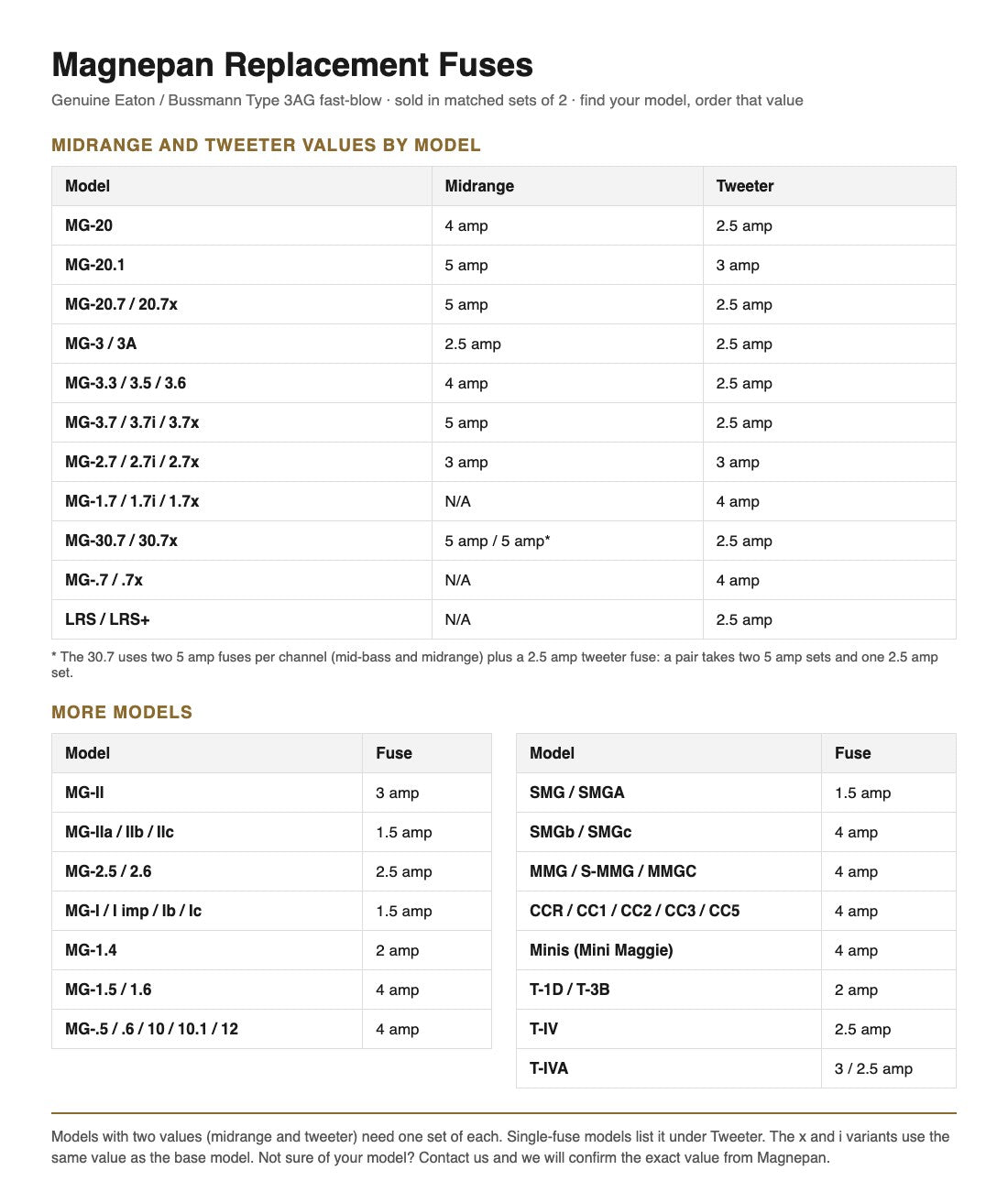

Midrange and tweeter values by model
*The 30.7 uses two 5 amp fuses per channel, one for the mid-bass and one for the midrange, plus a 2.5 amp tweeter fuse. A pair takes two 5 amp sets and one 2.5 amp set.
More models
| Model | Fuse value(s) |
|---|---|
| MG-II | 3 amp |
| MG-IIa / IIb / IIc | 1.5 amp |
| MG-2.5 / 2.6 | 2.5 amp |
| MG-I / I imp / Ib / Ic | 1.5 amp |
| MG-1.4 | 2 amp |
| MG-1.5 / 1.6 | 4 amp |
| MG-.5 / .6 / 10 / 10.1 / 12 | 4 amp |
| SMG / SMGA | 1.5 amp |
| SMGb / SMGc | 4 amp |
| MMG / S-MMG / MMGC | 4 amp |
| CCR / CC1 / CC2 / CC3 / CC5 | 4 amp |
| Minis (Mini Maggie) | 4 amp |
| T-1D / T-3B | 2 amp |
| T-IV | 2.5 amp |
| T-IVA | 3 amp (midrange), 2.5 amp (tweeter) |
Do not see your model? Reach out before you order and we will confirm the exact value from Magnepan so you fit the right fuse the first time.
Magnepan Replacement Fuses Specifications
| Manufacturer | Eaton / Bussmann |
| Fuse type | Type 3AG fast-blow (fast-acting) |
| Body size | 6.3 mm x 32 mm (1/4 in x 1-1/4 in) |
| Available values | 1.5, 2, 2.5, 3, 4, and 5 amp |
| Sold as | Matched set of 2 |
| Fits | Magnepan planar magnetic loudspeakers (see compatibility chart) |
