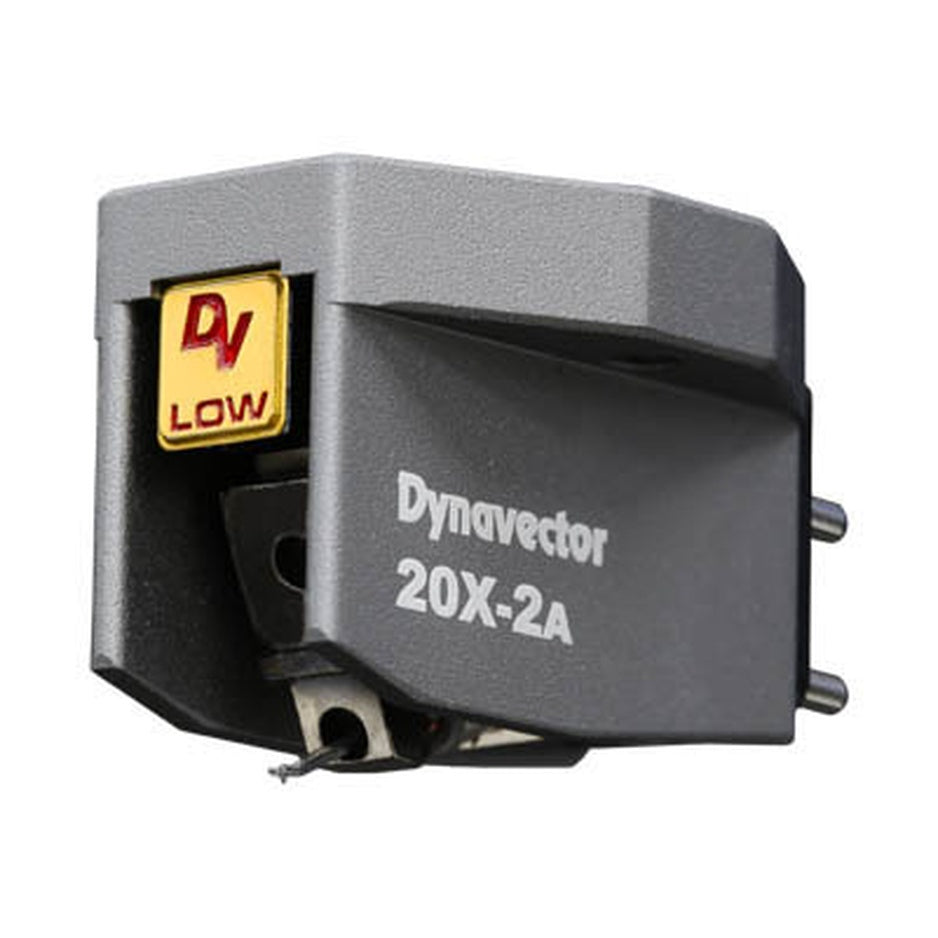

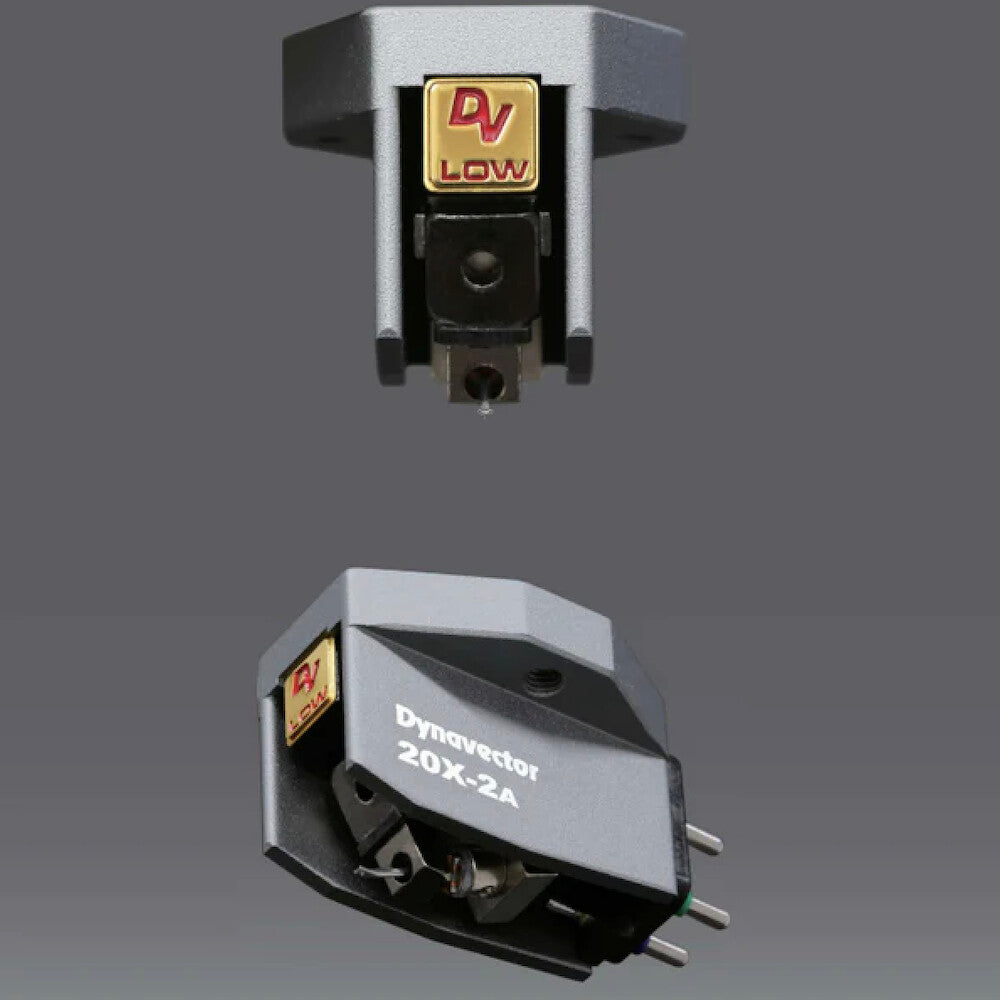

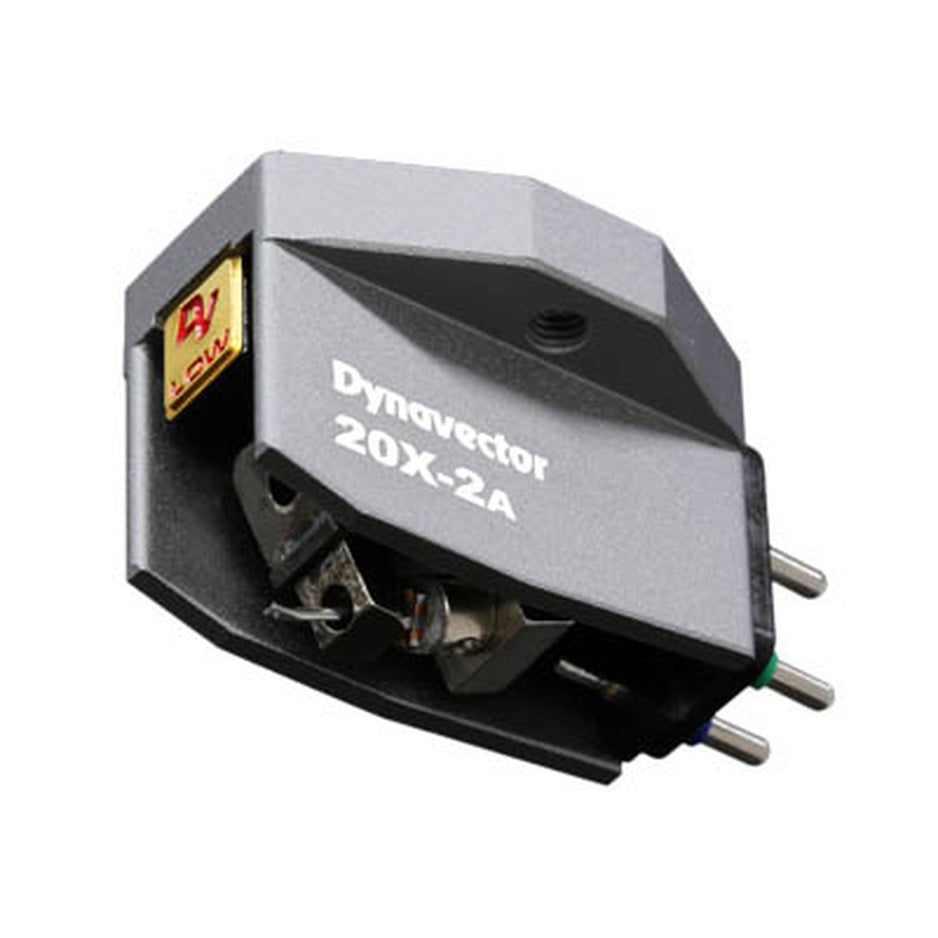

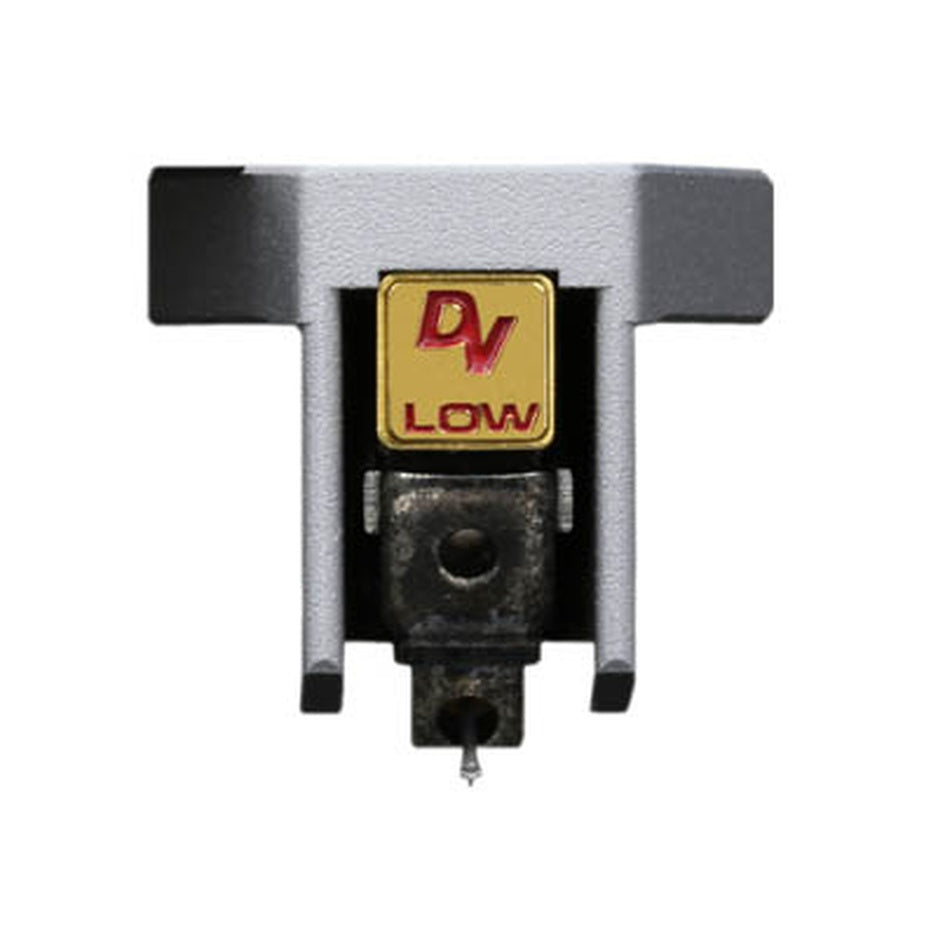

Dynavector DV-20X2A Moving Coil Phono Cartridge

The Dynavector DV-20X2A builds on the proven 20X2 platform with a newly developed magnetic circuit featuring Special Magnetic Annealing and pure iron core components. The micro-ridge nude diamond stylus (2-micron radius) extracts fine detail from vinyl grooves with exceptional precision, while the annealed magnetic circuit delivers measurably lower distortion than its predecessor. Available in low output (0.3mV) and high output (2.5mV) configurations at $1,450.

The 20X2A represents a meaningful upgrade within Dynavector's mid-range. Where the standard 20X2 already outperforms most cartridges in its price class thanks to its flux damper and micro-ridge stylus, the 20X2A refines the magnetic circuit itself. Dynavector's Special Magnetic Annealing process treats the pure iron core components to achieve more uniform magnetic behavior, which translates to improved dynamics and lower noise. If you're looking for the best cartridge under $1,500 that works with a standard MM input, the high-output 20X2A is hard to beat.

Key Features of the Dynavector DV-20X2A

• Special Magnetic Annealing: Pure iron core treated with optimized annealing process for reduced distortion and improved magnetic linearity
• Micro-Ridge Nude Diamond Stylus: 2-micron radius contact edge traces the finest groove modulations for maximum detail retrieval and minimal record wear
• Magnetic Flux Damper: Absorbs stray magnetic energy to reduce distortion and improve channel separation
• Patented Softened Magnets: Neodymium magnets with controlled field geometry minimize eddy currents and hysteresis
• Dual Output Options: Low output (0.3mV, 5 ohm) for MC stages or high output (2.8mV, 150 ohm) for MM inputs
• Pure Iron Core: Upgraded core material provides better magnetic conductivity and lower core losses than standard alloys
• Hardened Aluminum Cantilever: 6mm cantilever balances rigidity with the compliance needed for stable tracking
• Solid Aluminum Alloy Body: Machined construction eliminates resonance and ensures reliable headshell mounting

What Changed from the DV-20X2

The DV-20X2A retains the 20X2's mechanical design, including its micro-ridge stylus, hardened aluminum cantilever, and flux-damped body. The key upgrade is the magnetic circuit: the 20X2A uses pure iron core components processed with Dynavector's Special Magnetic Annealing. This heat treatment optimizes the magnetic domain structure within the iron, achieving more linear and uniform field behavior than the standard 20X2's magnetic circuit. The practical result is lower harmonic and intermodulation distortion, improved dynamic contrast, and more consistent performance across the output range. If you currently own a 20X2, the 20X2A is a direct physical replacement with the same mounting dimensions and tonearm compatibility.

Micro-Ridge Stylus with 2-Micron Radius

The micro-ridge profile on the 20X2A features a 2-micron contact radius, one of the finest contact edges available in any cartridge. This narrow profile traces groove modulations that wider styli simply skip over, retrieving high-frequency detail and spatial information that contribute to a more complete and dimensional presentation. The nude-mounted diamond eliminates the bonding layer found in cheaper cartridges, reducing tip mass and improving transient accuracy. Combined with the 6mm hardened aluminum cantilever, the assembly delivers fast, controlled tracking at the recommended 2.0g force.

Special Magnetic Annealing Technology

Dynavector's Special Magnetic Annealing is a controlled heat treatment applied to the pure iron core components of the generator assembly. The process aligns the magnetic domains within the iron to achieve more uniform field distribution. In practice, this reduces the nonlinear behavior that causes harmonic distortion in the output signal. The annealed core works in concert with the neodymium magnets (processed with Dynavector's patented softened magnet technology) and the magnetic flux damper to deliver a cleaner, more linear output than the standard 20X2.

Low Output and High Output Versions

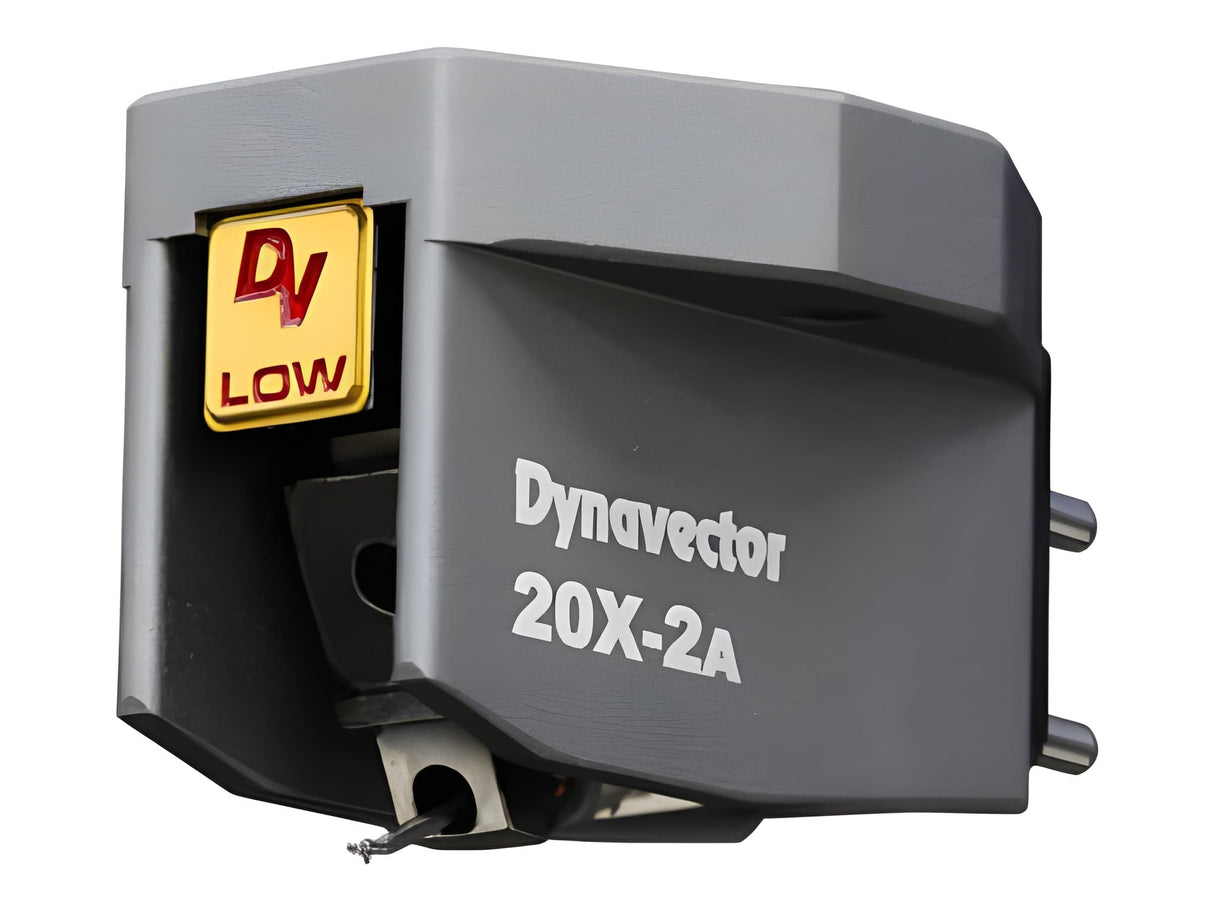

The low output DV-20X2A produces 0.3mV at just 5 ohms impedance, ideal for MC phono stages loaded at 30 ohms or higher. The low impedance ensures the cartridge presents an easy electrical load to the phono preamp. The high output version produces 2.8mV at 150 ohms, fully compatible with any standard MM phono input loaded at 1,000 ohms or above. Both versions share the same micro-ridge stylus and annealed magnetic circuit.

Explore the Full Dynavector Cartridge Lineup

The DV-20X2A is Dynavector's top mid-range offering. Here's how it fits in the lineup:

• Dynavector DV-20X2 - The original model without Special Magnetic Annealing, at a lower price.
• Dynavector DV-10X5A - Entry-level with Shibata III stylus and annealed magnetics.
• Dynavector XX-2A - Steps up to a boron cantilever for reference-level tracking.
• Dynavector Karat 17DX - Diamond cantilever in a gold-plated body for maximum detail.
