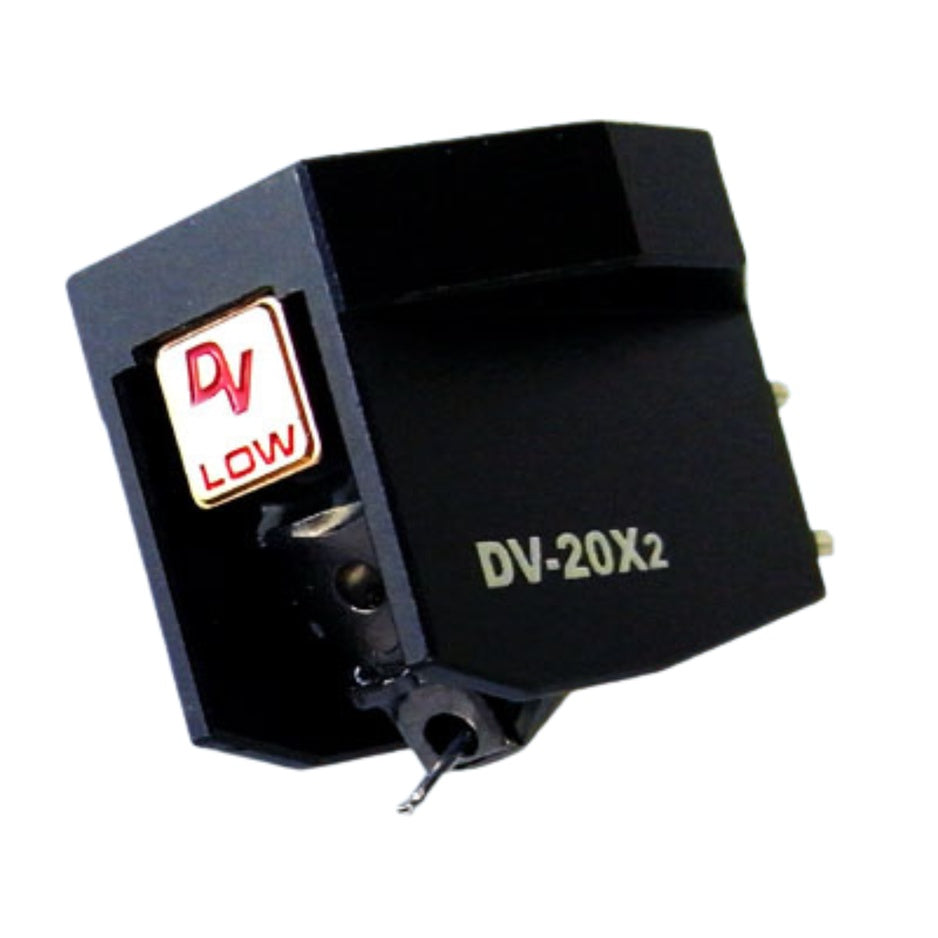

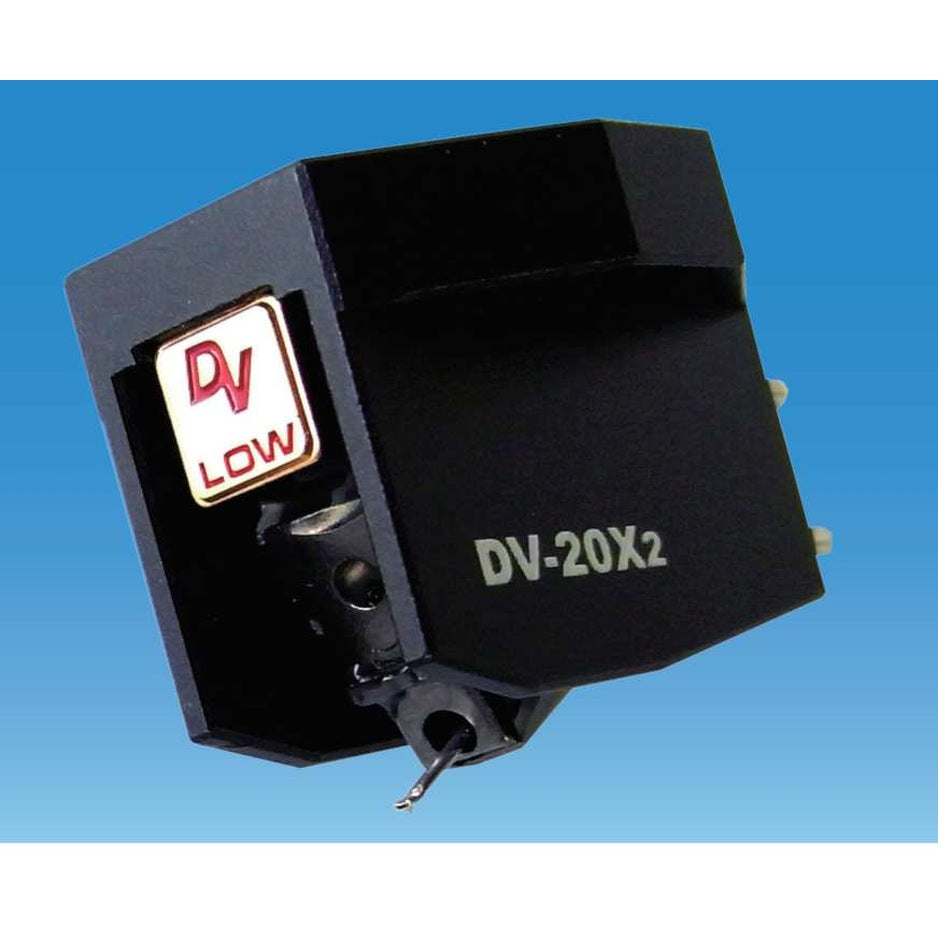

Dynavector DV-20X2 Moving Coil Phono Cartridge

The Dynavector DV-20X2 moving coil phono cartridge delivers the detail and dynamics of Dynavector's higher-end designs at a price point that makes serious analog performance accessible. Available in both low output (0.3mV) and high output (2.8mV) versions, the DV-20X2 incorporates Dynavector's proprietary flux damper and softened magnetism technologies, a micro ridge nude diamond stylus, and a solid aluminum alloy body, delivering tracking precision and musicality that punches well above its weight class.

The DV-20X2 hits a sweet spot in the Dynavector lineup. It's the entry point for their flux damper technology, which carries through every cartridge up to the flagship DRT XV-1t. If you're running a quality turntable and want a cartridge that reveals more of what's in the groove without demanding a reference-level phono stage, start here. It rewards good setup and pairs particularly well with Dynavector's own P75 Mk4 phono preamplifier.

Key Features of the Dynavector DV-20X2

• Micro Ridge Nude Diamond Stylus: Precision-cut stylus profile sits deeper in the groove wall, extracting more musical information with lower distortion and extended wear life compared to standard elliptical profiles.
• Flux Damper Technology: Dynavector's magnetic flux damping system controls unwanted electromagnetic interference within the generator, reducing distortion and improving clarity across the frequency range.
• Softened Magnetism Design: Neodymium magnets are treated with Dynavector's softened magnetism process, smoothing the magnetic field for more natural, less fatiguing sound reproduction.
• Dual Output Options: Available as Low Output (0.3mV, 5 ohm) for dedicated MC phono stages, or High Output (2.8mV, 150 ohm) for use with standard MM phono inputs.
• Solid Aluminum Alloy Body: Rigid, non-resonant construction provides a stable platform for the generator assembly, minimizing vibration-induced coloration.
• 6mm Hard Aluminum Cantilever: Short, stiff cantilever pipe provides fast transient response and accurate tracking at the recommended 1.8 to 2.2 gram tracking force.
• Wide Compatibility: 12 x 10^-6 cm/dyne compliance makes the DV-20X2 suitable for medium to high mass tonearms, including Dynavector's own DV-507 Mk2.

Dynavector's Flux Damper Technology

The DV-20X2 is the entry point in Dynavector's lineup for their flux damper system. In a moving coil cartridge, the coils move within a magnetic field to generate the audio signal. Stray magnetic flux from the magnets can interact with the signal in unwanted ways, adding a subtle haze or hardness to the sound. Dynavector's flux damper uses carefully positioned conductive elements to absorb and dissipate this stray flux before it contaminates the signal. The result is a cleaner, more transparent presentation with better separation between instruments and a lower noise floor. This same technology is used in every Dynavector cartridge from the DV-20X2 up through the flagship DRT XV-1t.

Softened Magnetism and Neodymium Magnets

Dynavector's softened magnetism approach addresses a common issue with high-energy neodymium magnets: while they produce strong, efficient magnetic fields (essential for low-output MC cartridges), their field shape can be abrupt at the edges, causing subtle distortion as the coils move through transition zones. By treating the magnets to soften these field boundaries, Dynavector achieves a more linear, gradual magnetic field. This translates to smoother tracking of complex musical passages, particularly during loud or dynamically demanding sections where the stylus excursion is greatest.

Output Options: Low vs. High

The DV-20X2 is available in two output configurations to match different phono stage setups. The Low Output version (0.3mV, 5 ohm impedance) is designed for dedicated MC phono stages or step-up transformers, with a recommended load impedance of 30 ohms or greater. The High Output version (2.8mV, 150 ohm impedance) produces enough signal to drive standard MM phono inputs rated at 47k ohms, making it an ideal upgrade path for listeners whose current phono stage doesn't support MC cartridges. Both versions share the same generator design, stylus, and body construction; the difference is solely in the coil winding.

Build Quality and Construction

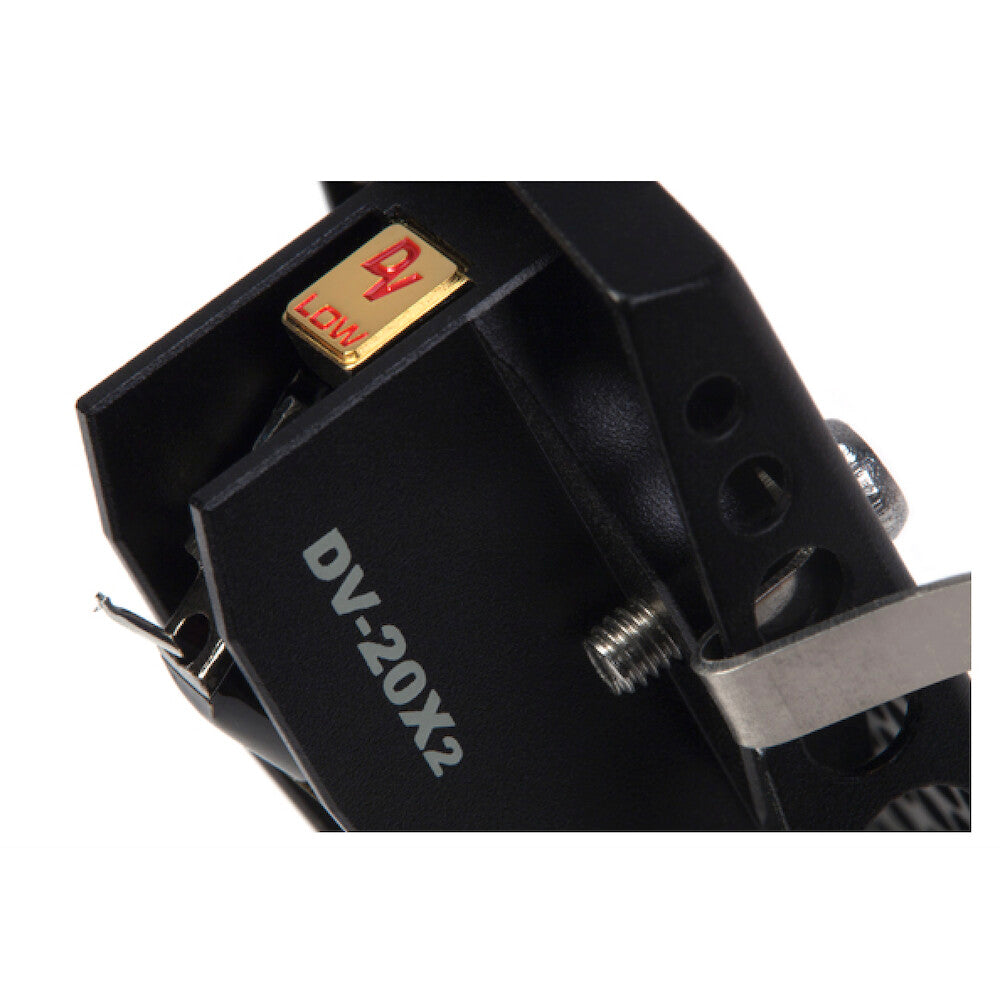

The DV-20X2's body is machined from solid aluminum alloy, providing a rigid, non-resonant housing for the generator assembly. At 9.2 grams, it sits comfortably within the mounting weight range of most tonearms. The cartridge uses standard half-inch mounting with accessible screw holes, making installation straightforward. The short 6mm hard aluminum cantilever pipe is bonded directly to the micro ridge nude diamond stylus, keeping the mechanical path between groove and generator as direct as possible.

Explore the Full Dynavector Cartridge Range

The DV-20X2 sits in the middle of Dynavector's cartridge lineup, offering flux damper technology at an accessible price. Looking for a different performance level? Explore the rest of the range:

• DV-10X5 Mk2 - Entry-level MC cartridge with nude elliptical stylus and dual output options.
• DV-20X2A - Upgraded DV-20X2 with micro-ridge diamond stylus for finer detail retrieval.
• XX-2A - Boron cantilever and line-contact stylus for reference-level tracking precision.
• Karat 17DX - Legendary diamond cantilever design in a 24-karat gold-plated body.
• Te Kaitora Rua - Flagship-tier performance with boron cantilever and softened magnetism.
• DRT XV-1s - Reference cartridge with diamond cantilever and Direct Rear Terminal construction.
• DRT XV-1t - Dynavector's ultimate statement, hand-built with the finest materials and tolerances.
