AVM Rotation R 5.3 MK2 Turntable

The AVM Rotation R 5.3 MK2 is a belt-drive turntable built on AVM's Elipso Centric belt drive and a gimbal-mounted 10-inch AVM tonearm, with a 5.5 kg aluminum platter by AVM's specification. The plinth is a massive 60 mm HDF composite frame with an aluminum cover, and a dimmable RGB platter light can be set to any color. It is sold without a cartridge.

Speed control is microprocessor-based, switching between 33 and 45 rpm.

Key Features of the AVM Rotation R 5.3 MK2

• Elipso Centric Belt Drive: With look-forward servo control for 33 and 45 rpm.
• 5.5 kg Aluminum Platter: Paired with specially designed bearing technology for smooth running.
• 10-Inch Gimbal-Mounted Tonearm: Height-adjustable, 254 mm effective length, 16 g effective mass.
• 60 mm HDF Composite Frame: A massive plinth with an aluminum cover.
• RGB Platter Light: Dimmable, switchable, in any color.
• Height-Adjustable Damper Feet and Dust Cover: AVM calls the dust cover resonance-free.

Drive, Platter and Speed Stability

The R 5.3 MK2 uses AVM's Elipso Centric belt drive with look-forward servo control. Speed changes between 33 and 45 rpm are microprocessor-controlled, and AVM rates speed variance at plus or minus 0.15% at 33 rpm and 0.10% at 45 rpm.

The platter is massive aluminum and weighs 5.5 kg. AVM pairs it with specially designed bearing technology for smooth running with minimal vibration, and quotes a signal-to-noise figure of -75 dB for the turntable.

The 10-Inch AVM Tonearm

The 10-inch AVM tonearm is gimbal-mounted and height-adjustable. It has an effective length of 254 mm and an effective mass of 16 g, and the included counterweight balances cartridges from 5 to 20 g. A 15 mm overhang adjustment lets you set stylus position precisely.

Plinth, Feet and Dust Cover

The frame is a massive 60 mm HDF composite with an aluminum cover, and it stands on height-adjustable damper feet. A resonance-free dust cover is included. AVM gives the R 5.3 MK2's dimensions as 470 x 390 x 175 mm.

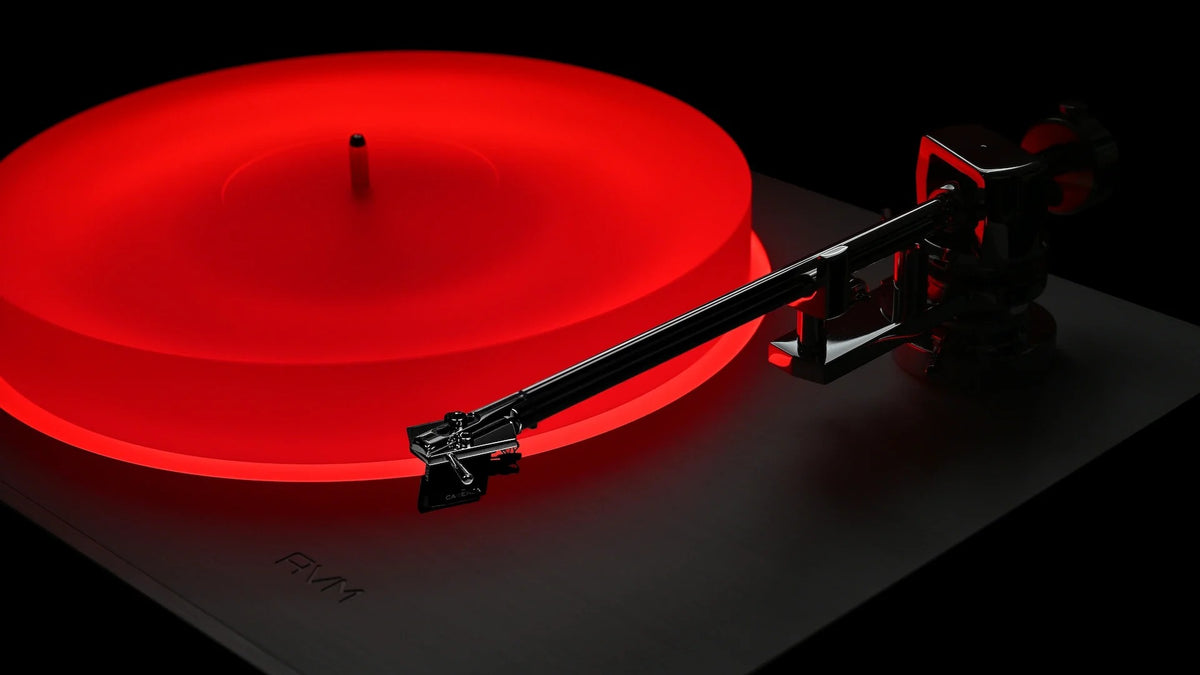

RGB Platter Light

The platter can be lit in any color. The light is dimmable and can be switched off entirely.

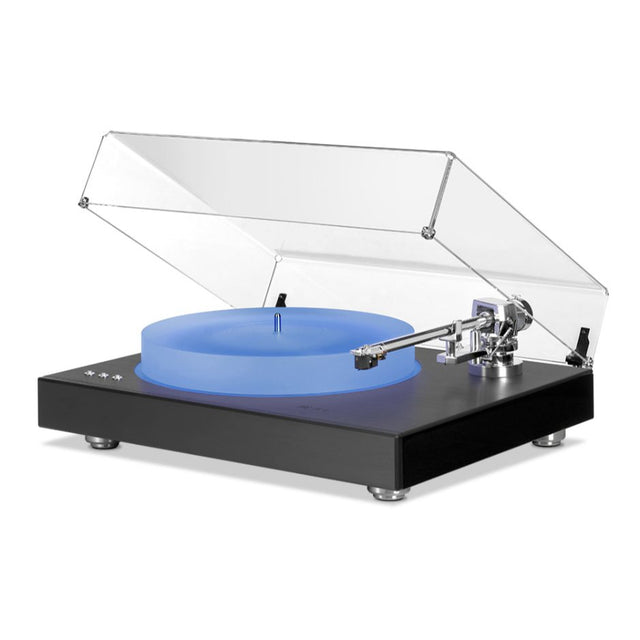

Black, Silver or Cellini Chrome

The R 5.3 MK2 comes in black or silver, or in AVM's Cellini chrome version. Every version is sold without a cartridge, so you fit the one you prefer.

Who Is AVM?

AVM Audio Video Manufaktur has built hi-fi by hand in Germany since 1986, and its products are sold in more than 50 countries. Its turntables carry the Rotation name.

More from AVM

For a phono stage from AVM, the Evolution line includes the AVM Evolution PH 3.3, a fully solid-state phono preamplifier, and the AVM Evolution PH 5.3, which has a tube output stage. Both support MM and MC cartridges. Browse the full AVM range.

The Listening Room Difference

We're a third-generation family business with a brick-and-mortar showroom in Chestertown, Maryland, and a reputation built on exceptional service and relentless passion for hifi. Whether you're visiting in person or ordering online, we bring decades of experience, personalized service, and honest guidance to every interaction. We don't just ship boxes. We help build systems, answer your questions like real humans, and make sure every detail of your setup is right, from the cables to the final connection. Our passion is helping you get the most out of your gear, with support that lasts well beyond the sale.

AVM Rotation R 5.3 MK2 Specifications
