Rega AOS MC Phono Stage

The Rega AOS MC Phono Stage is a dedicated moving coil preamplifier that brings Rega's reference-level Aura MC circuit design into a more accessible package. Built as a two-stage, all-analogue amplifier with no digital control circuitry, the AOS uses Linear Systems ultra-low noise FETs in a symmetrical Class A configuration to extract every detail from your MC cartridge while keeping the noise floor vanishingly low. With adjustable resistance and capacitance loading plus switchable gain, the AOS handles everything from the Rega Ania to the Aphelion 2 and third-party MC cartridges with equal precision.

Key Features of the Rega AOS MC Phono Stage

• Aura-Derived Circuit Topology: Two-stage Class A amplification based directly on Rega's flagship Aura MC reference phono stage, using the same FET compound pair design for ultra-low noise performance.
• Linear Systems Ultra-Low Noise FETs: Symmetrical complementary input stage with no coupling components between the cartridge and the amplifier, preserving every nuance of the signal.
• Adjustable MC Loading: Rear-panel dip switches for resistive loading (70, 100, 150, 400 ohms) and capacitive loading (1000pF, 4300pF), matching the AOS to virtually any MC cartridge on the market.
• Switchable Gain: Two gain settings (69.3dB and 63.5dB at 1kHz) to accommodate both low and very low output MC cartridges without compromise.
• RIAA Accuracy: Better than +/-0.2dB from 65Hz to 70kHz, ensuring faithful reproduction of every recording's tonal balance from deep bass through the upper harmonics.
• Self-Adjusting Servo Control: Innovative temperature compensation circuit maintains consistent performance regardless of ambient or operating temperature changes.

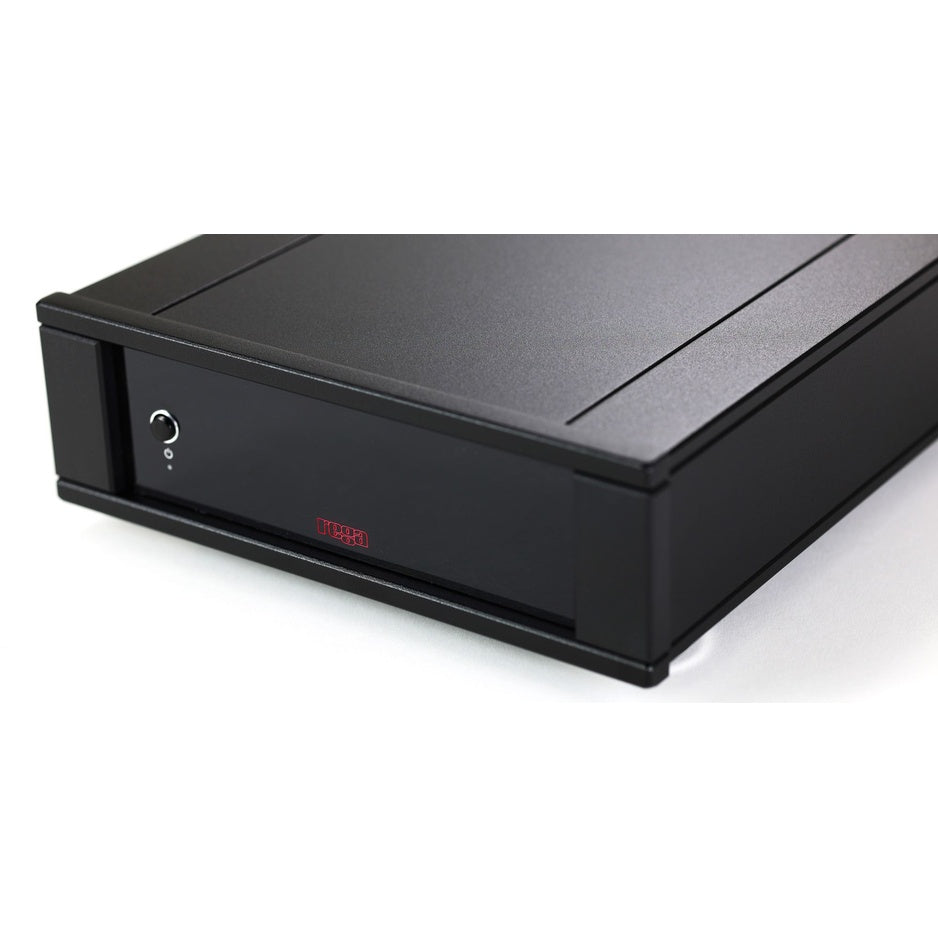

• Custom Half-Width Aluminium Case: Precision-machined Rega half-width enclosure (220 x 80 x 330mm) provides rigid, non-resonant housing with a clean, modern aesthetic.
• Factory Pre-Set for Rega Cartridges: Ships configured for optimal performance with Rega's own MC cartridge lineup, with full adjustability for third-party cartridges via rear-panel switches.

Aura-Derived Circuit Design

The AOS represents a direct distillation of the technology inside Rega's flagship Aura MC phono stage. At its heart is a FET compound pair configuration borrowed from the Aura, using Linear Systems ultra-low noise FETs in a symmetrical complementary Class A arrangement. This topology ensures that no bias current flows through the cartridge coil, a critical design choice that allows the delicate moving coil generator to operate without electrical interference from the amplifier itself. The result is a purer, more transparent signal path from stylus to line output.

Unlike less sophisticated phono stages that rely on operational amplifiers in the critical first gain stage, the AOS uses a fully discrete circuit with no coupling components between the cartridge and the input FETs. This direct-coupled approach eliminates potential sources of coloration and phase distortion, letting the cartridge's character come through without editorializing. The all-analogue signal path contains no digital control circuitry of any kind.

Precision MC Cartridge Loading

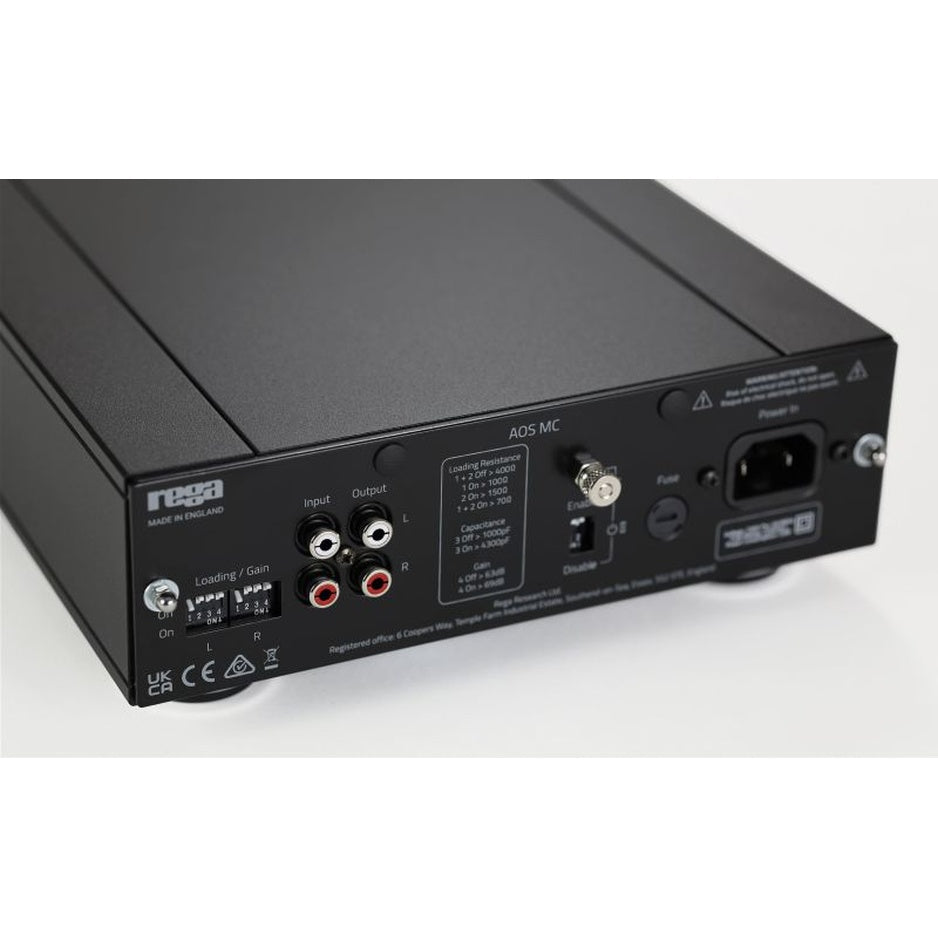

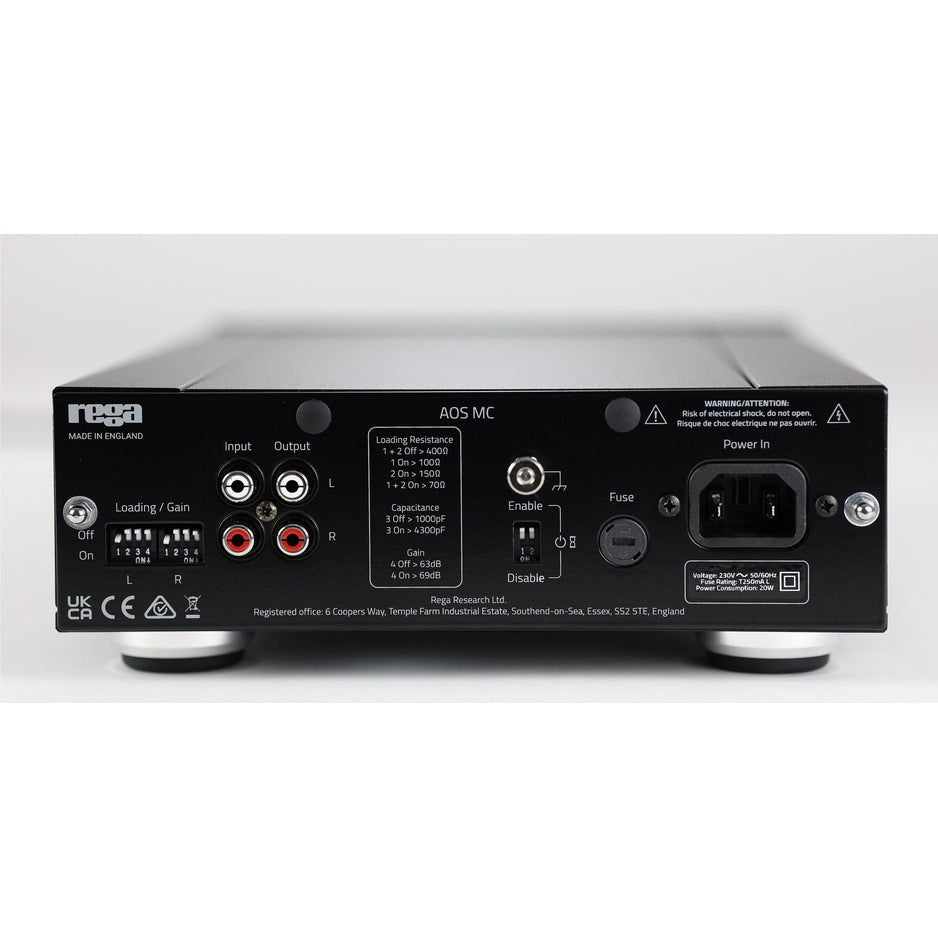

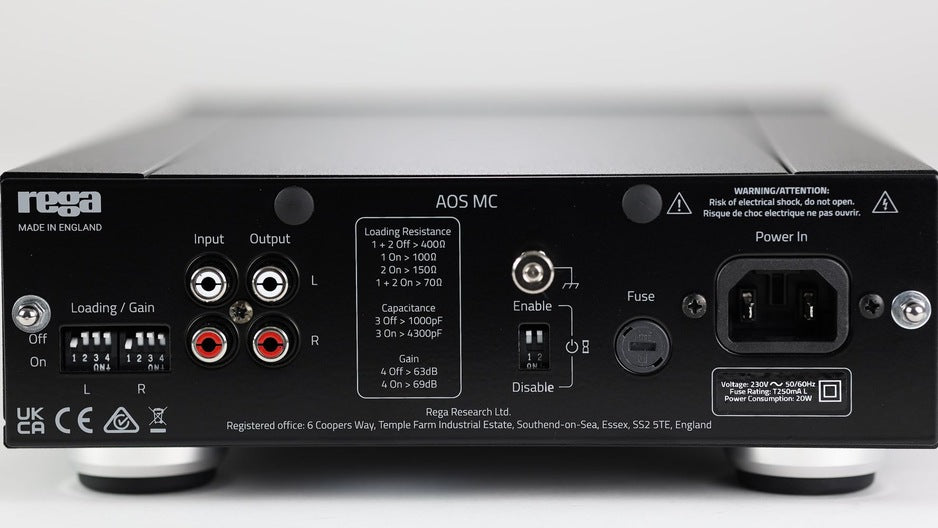

Matching a phono stage to your specific MC cartridge is essential for extracting its full potential, and the AOS provides comprehensive adjustability through clearly labeled dip switches on the rear panel. Resistive input loading can be set to 70, 100, 150, or 400 ohms using two switches in combination, covering the optimal range for the vast majority of MC cartridges from budget models through high-end designs. A separate capacitive loading switch toggles between 1000pF and 4300pF, allowing fine-tuning of high-frequency behavior.

The dual gain settings add another layer of versatility. With the gain switch in the high position, the AOS delivers 69.3dB of amplification at 1kHz, enough headroom for even the lowest output MC cartridges. Switching to the low setting drops the gain to 63.5dB, better suited to medium-output MC designs where excessive gain could push the downstream amplifier into overload. All loading and gain adjustments are made via the rear-panel dip switches while the unit is powered off, with a printed reference chart on the back panel for quick setup.

Two-Stage Rega AOS MC Signal Path

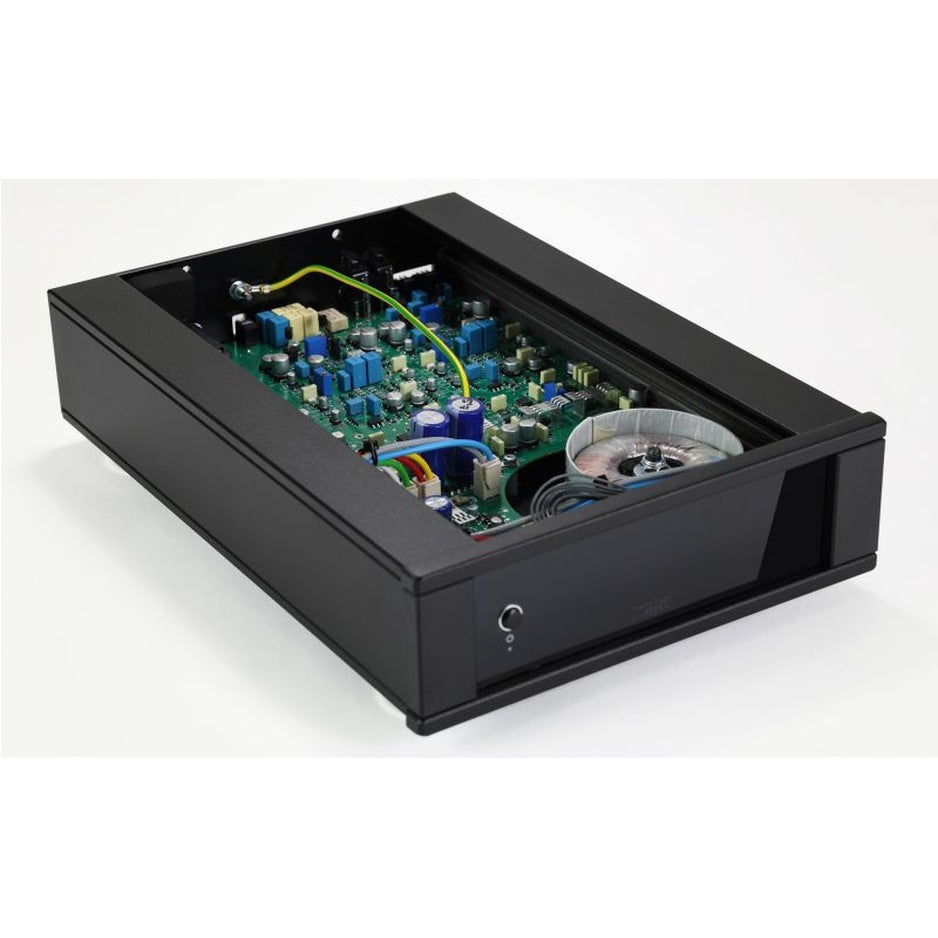

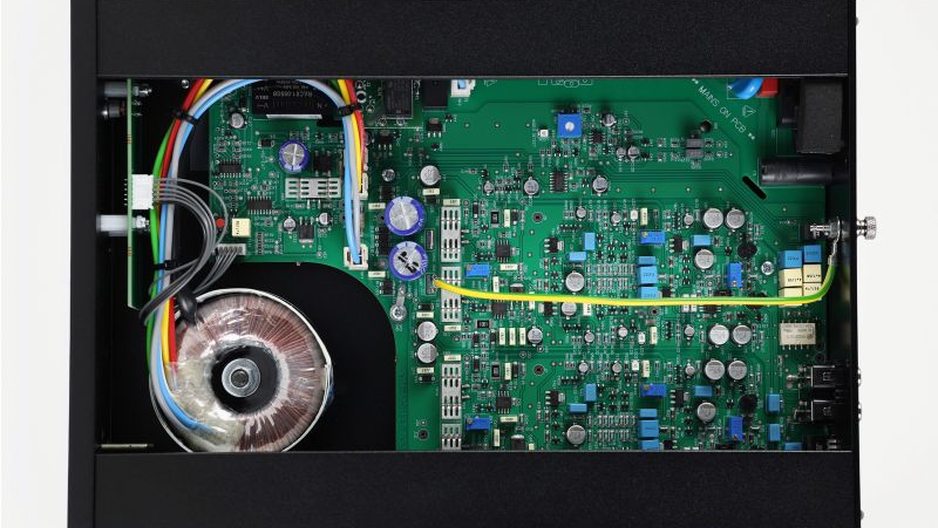

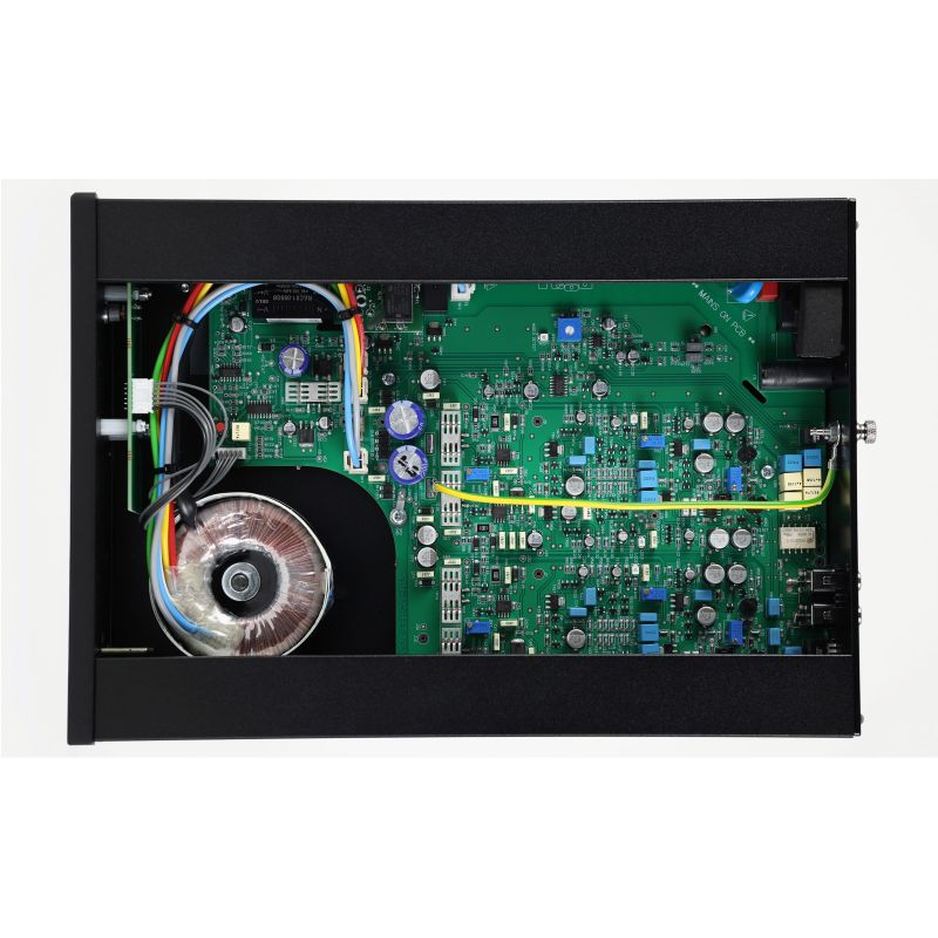

The AOS implements its amplification across two carefully optimized stages. The first stage is a symmetrical complementary Class A amplifier built around the Linear Systems ultra-low noise FETs. This input stage handles the initial amplification of the cartridge's tiny signal (often just fractions of a millivolt) with the lowest possible noise contribution. The symmetrical topology means both halves of the signal receive identical treatment, preserving the natural balance and spatial characteristics of the recording.

The second stage is a symmetrical Class A differential amplifier with a common base driver stage. This section serves double duty: it provides additional gain while simultaneously functioning as the active amplifier in the RIAA low-frequency equalization network. By integrating RIAA correction into the second amplification stage rather than treating it as a passive filter, Rega achieves tighter adherence to the RIAA curve (better than +/-0.2dB across the audible range) with lower noise and distortion than separate filter designs. Total harmonic distortion measures just 0.03%, and the frequency response extends from 17.5Hz (-3dB) out to 100kHz (-0.2dB).

Built for Stability and Long-Term Reliability

Rega has engineered several features into the AOS to ensure consistent, reliable performance over years of use. The self-adjusting servo control circuit continuously compensates for variations in ambient or operating temperature, maintaining stable bias points and consistent sound quality whether the unit has just been switched on or has been playing for hours. This eliminates the warm-up drift that can affect less sophisticated phono stages.

An automatic standby function puts the AOS into a low-power sleep mode (0.4W) after a period of no signal detection, extending component life and reducing energy consumption. This feature can be deactivated via a dedicated dip switch on the rear panel if you prefer to leave the unit in active mode. The custom-machined aluminium half-width case provides rigid mechanical isolation and effective RFI shielding, protecting the sensitive low-level circuitry from external electromagnetic interference. Rega backs the AOS with a lifetime warranty against manufacturing defects.

Rega AOS MC Phono Stage Video

Designed for Rega MC Cartridges

The AOS ships factory pre-set for optimal performance with Rega's lineup of moving coil cartridges. Whether you are running the Rega Ania as an entry point into MC playback, the Rega Ania Pro for its refined tracking ability, the Rega Apheta 3 for its articulate midrange, or the Rega Aphelion 2 for reference-level detail, the AOS is configured to work straight out of the box. For third-party MC cartridges, the rear-panel dip switches provide full control over loading and gain to dial in the ideal match.

For listeners exploring MC playback at a lower price point, the Rega Fono MC MK4 offers Rega's proven MC amplification with a similar loading adjustment system in a more compact package. For those seeking the absolute reference in Rega phono amplification, the Rega Aura MC delivers the full-scale implementation of this circuit topology with additional refinements in power supply regulation and component selection.
