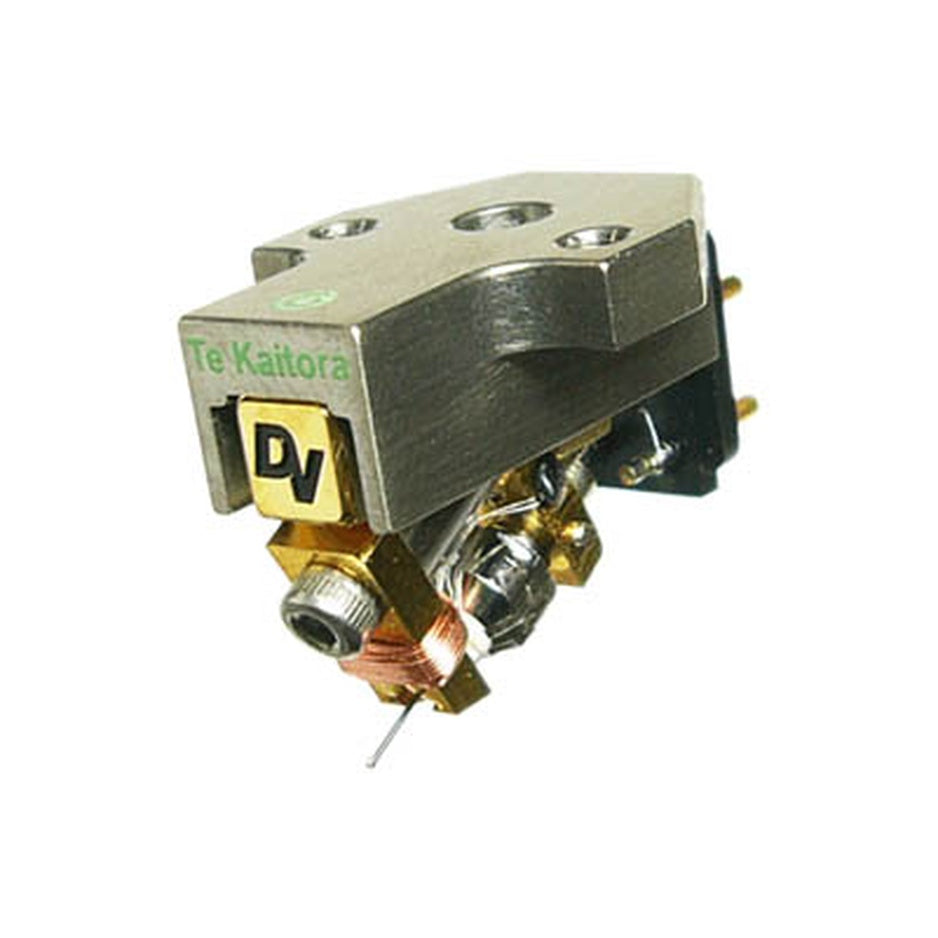

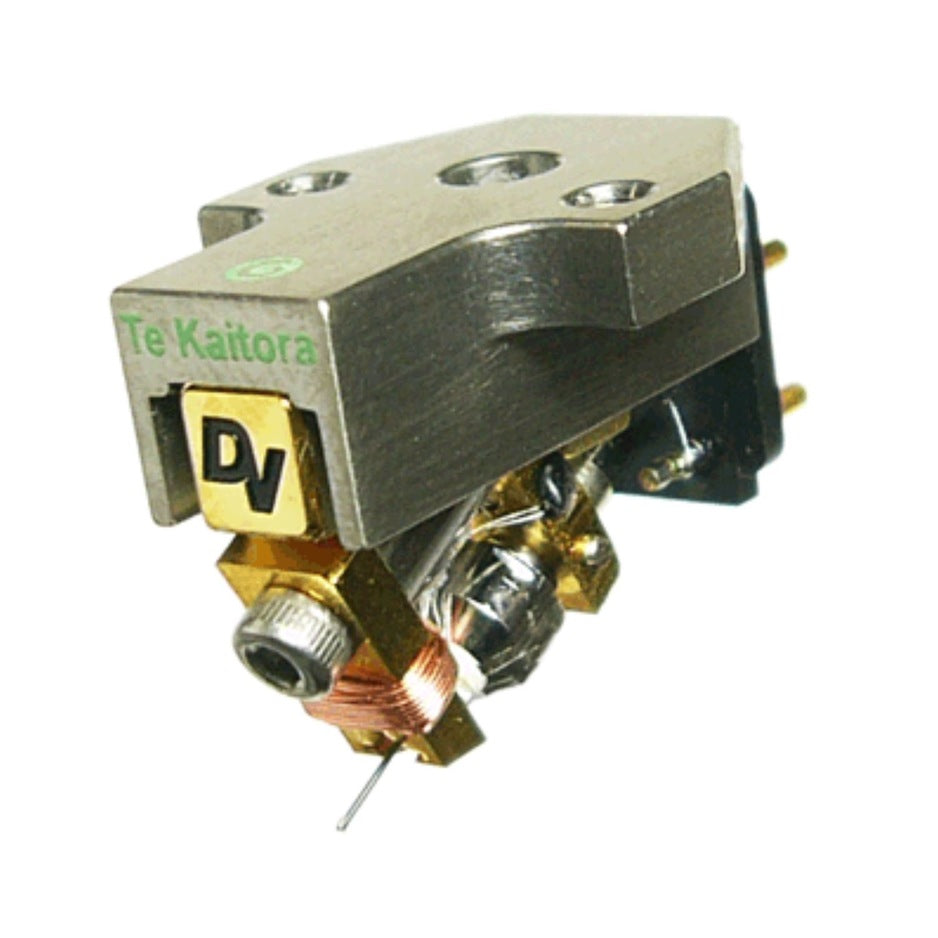

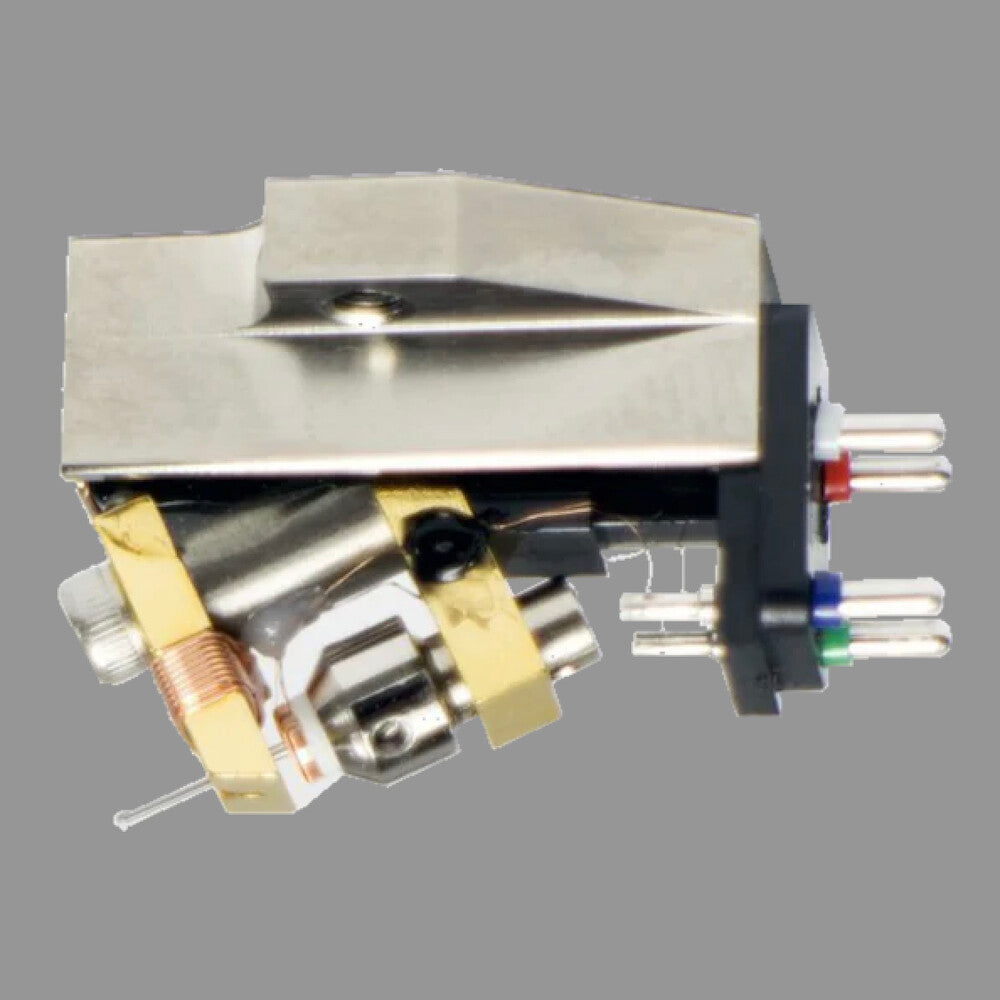

Dynavector Te Kaitora Rua Moving Coil Phono Cartridge

The Dynavector Te Kaitora Rua combines a solid boron cantilever, PF line-contact stylus, and PCOCC copper coils in a titanium headpiece, delivering 0.26mV of signal with 30dB channel separation and ±1dB frequency response from 20Hz to 20kHz. It's a cartridge built to disappear, leaving nothing between the stylus and the music.

Named after the Maori word for "The Discoverer, Second Version," the Te Kaitora Rua inherits technologies from Dynavector's flagship XV-1 series and refines them into a more accessible package. The PCOCC copper coil wire, titanium headpiece, and square-shaped armature design all trickle down from the top of the range. It occupies a sweet spot in the lineup where the engineering is genuinely reference-grade but the price hasn't crossed into five figures. We carry it because customers at this level want no compromises in the signal path, and the TKR delivers.

Key Features of the Dynavector Te Kaitora Rua

• Solid Boron Cantilever: 6mm boron rod offers the highest stiffness-to-mass ratio outside of diamond, for precise tracking and fast transient response
• PF Line Contact Stylus: 7 x 30 micron contact radius reads deep groove detail with minimal wear and low inner-groove distortion
• PCOCC Copper Coil Wire: Single-crystal copper winding eliminates grain boundaries for smoother, more coherent signal transmission
• Titanium Headpiece: Maximum rigidity construction coupled to the magnetic circuit via stainless steel bolts with precision torque
• Alnico Magnet: High flux density with low magnetic resistance for natural transient behavior and wide dynamic range
• Square-Shaped Armature: Improved linearity in magnetic flux distribution compared to conventional round armature designs
• Flux Damper and Softened Magnetism: Dual magnetic optimization technologies reduce stray flux and noise for a blacker background

PCOCC Copper Coils

The Te Kaitora Rua uses PCOCC (Pure Copper by Ohno Continuous Casting) wire for its generator coils. Standard copper wire contains grain boundaries at regular intervals, each one creating a micro-junction that can impede signal flow. PCOCC copper is drawn as a single continuous crystal, eliminating these boundaries entirely. The audible result is smoother high-frequency reproduction and a more natural, coherent presentation across the full bandwidth. It's a material upgrade that Dynavector reserves for their upper-tier cartridges.

Titanium Headpiece Construction

The headpiece is the structural foundation of any cartridge, and the Te Kaitora Rua uses titanium for its combination of extreme rigidity and low mass. The magnetic circuit components are secured to the titanium body with stainless steel bolts torqued to precise specifications during assembly. This mechanical coupling ensures that vibration energy from the stylus tip travels directly through the cantilever to the generator without being absorbed or distorted by body flex. The result is better micro-dynamic resolution and tighter bass control.

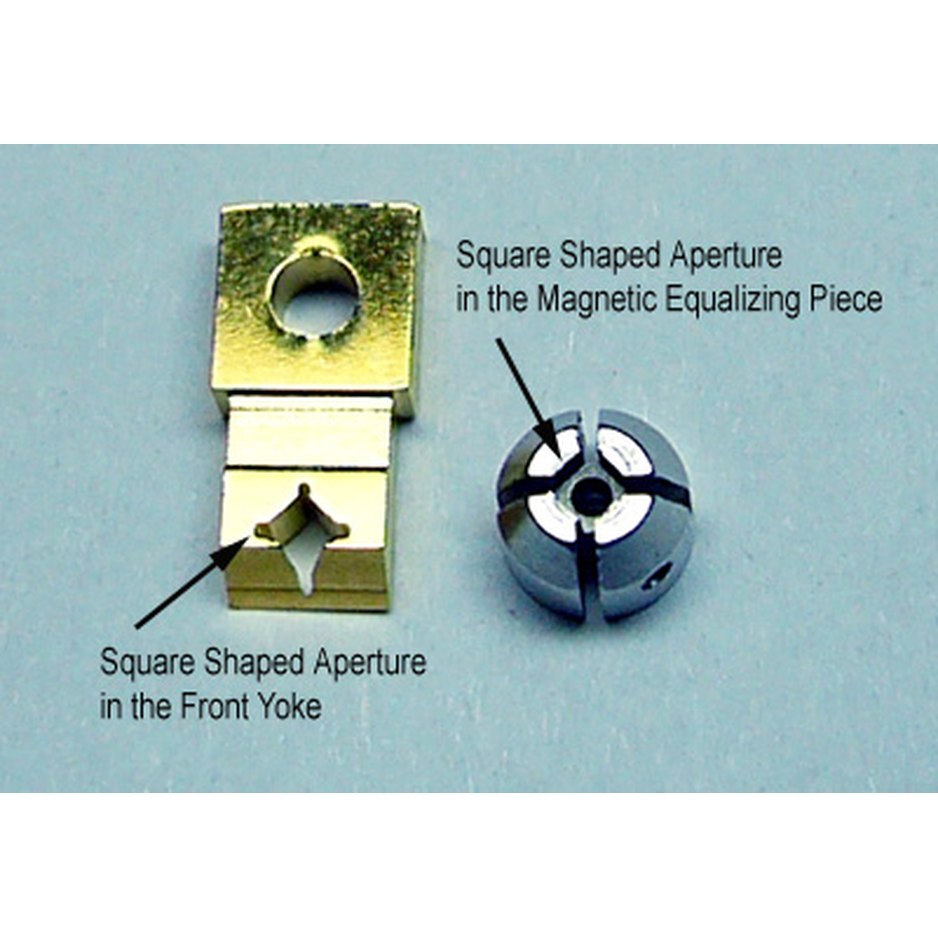

Square-Shaped Armature Design

Most MC cartridges use a round armature in the magnetic gap. The Te Kaitora Rua employs a square-shaped armature that provides more uniform magnetic flux distribution across the coil's range of motion. This improved linearity means the generator produces a more accurate electrical representation of the stylus movement, particularly during complex musical passages where the stylus is tracing multiple frequencies simultaneously. It's a detail that only matters at this level of playback resolution, and it's one of the technologies inherited from the XV-1 series.

Alnico Magnet Circuit

Like the XX-2A above it, the Te Kaitora Rua uses an alnico magnet rather than the neodymium or samarium-cobalt found in most modern designs. Alnico provides high flux density with inherently low magnetic resistance, which translates to natural transient response and wide dynamic range. The magnetic circuit components undergo Dynavector's proprietary annealing process to restore their crystal structure after machining, and the flux damper stabilizes the air gap for consistent, linear operation regardless of signal amplitude.

Setup and Loading

At 9.8 grams and 10mm/N compliance, the Te Kaitora Rua is optimized for medium to medium-high mass tonearms. The 6-ohm impedance and 0.26mV output require a quality MC phono stage or step-up transformer with adequate gain. Dynavector recommends a minimum load impedance of 30 ohms, though many owners find their preferred loading between 100 and 500 ohms. Tracking force is 1.8-2.2g with 2.0g nominal. Standard half-inch mount with the titanium headpiece accommodating a range of headshell and integrated arm configurations.

Explore the Full Dynavector Cartridge Range

The Te Kaitora Rua builds on the XX-2A's boron cantilever platform with PCOCC coils, titanium construction, and the square armature design. Below it, the XX-2A offers the same cantilever and stylus profile at a more accessible price. Above, the DRT XV-1s and XV-1t represent Dynavector's ultimate expression: diamond cantilevers, direct rear terminal construction, and stainless steel bodies with the full complement of magnetic technologies.

THE LISTENING ROOM DIFFERENCE

We're a third-generation family business with a brick-and-mortar showroom in Chestertown, Maryland, and a reputation built on exceptional service and relentless passion for hifi. Whether you're visiting in person or ordering online, we bring decades of experience, personalized service, and honest guidance to every interaction. We don't just ship boxes. We help build systems, answer your questions like real humans, and make sure every detail of your setup is right, from the cables to the final connection. Our passion is helping you get the most out of your gear, with support that lasts well beyond the sale.

Dynavector Te Kaitora Rua Specifications

Explore the Dynavector Moving Coil Range

The Te Kaitora Rua sits near the top of Dynavector's cartridge lineup, just below the reference DRT models. Consider these alternatives depending on your system and budget:

• Dynavector Karat 17DX - Short-bodied design with a micro-ridge diamond stylus on a solid boron cantilever. A different approach to detail retrieval at a lower price point.
• Dynavector DRT XV-1s - The reference-grade step up with DR-T softened magnetic circuit, solid boron cantilever, and African ebony body.
• Dynavector P75 Mk4 - Dynavector's own phono stage with Phono Enhancer mode, purpose-built for their MC cartridges.
