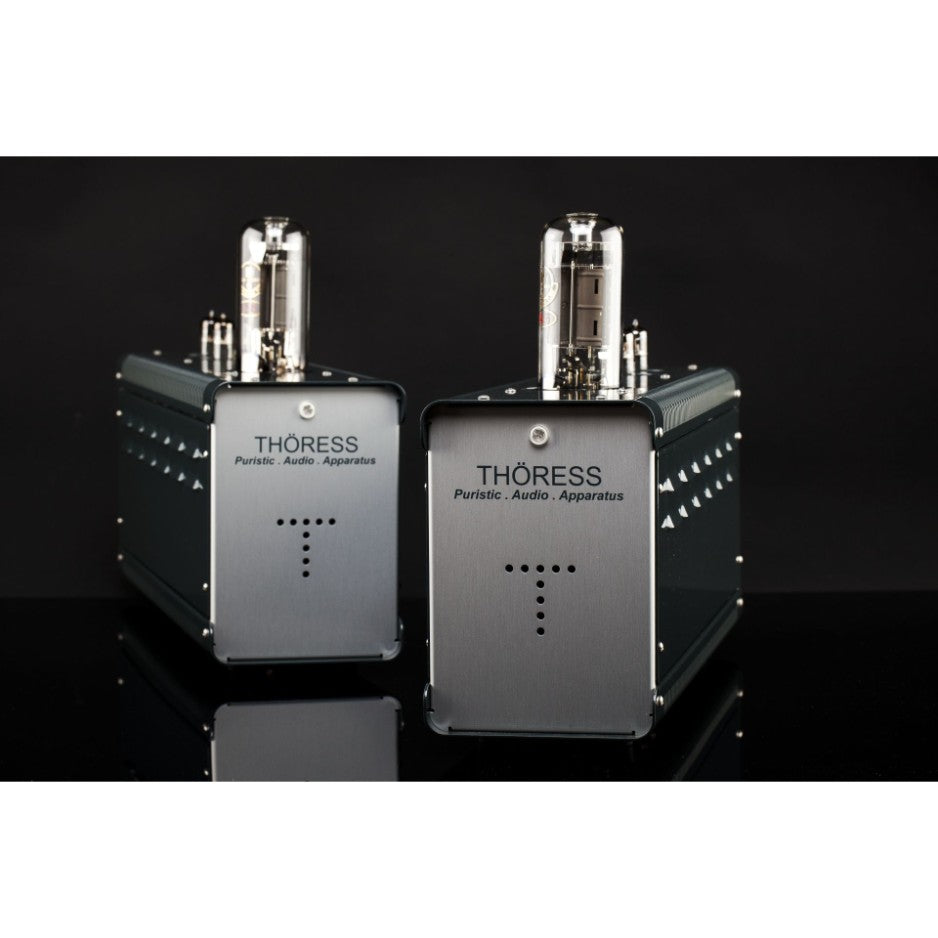

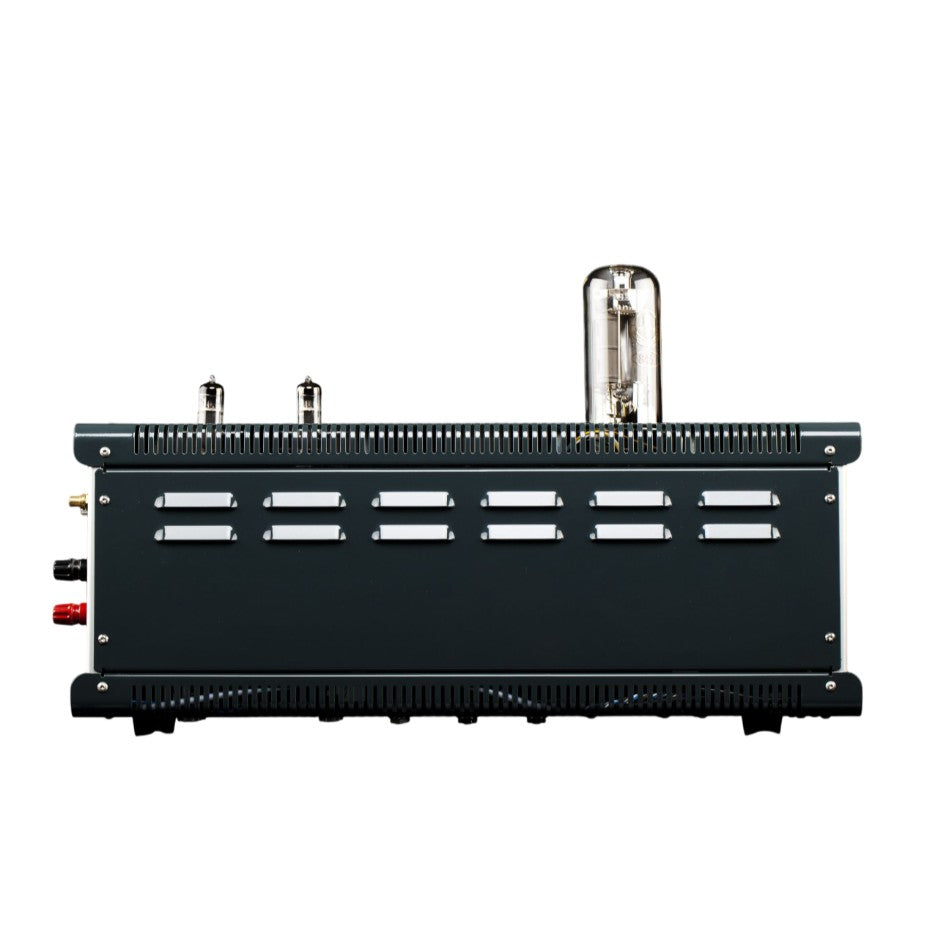

THÖRESS SE-845 Mono Power Amplifier (Pair)

The THÖRESS SE-845 Mono Power Amplifier represents the absolute pinnacle of Reinhard Thöress’s all-tube amplifier range. Designed to unlock the full potential of the legendary 845 filamentary power triode, these monoblocks operate in pure Single-Ended Class-A mode to deliver 20 Watts of musically potent output. Unlike typical designs that struggle to drive the demanding 845 tube, the SE-845 features a highly sophisticated single-stage driver circuit tailored around EL822 power pentodes. This robust architecture, combined with custom-made in-house C-core output transformers, allows the amplifier to exert iron-fisted control over loudspeakers while retaining the richly textured, holographic, and flowing presentation that only the finest single-ended triodes can achieve.

Key Features:

• Pure Single-Ended Class-A: Delivers 20 Watts of unadulterated Class-A power using the famous 845 filamentary triode for ultimate linearity and tone.
• Advanced Driver Stage: Utilizes a powerful single-stage driver tailored around two EL822 (CV2382) power tubes operated in triode mode to fully excite the 845 grid.
• In-House C-Core Transformers: Features proprietary tape-wound cut core (C-core) output transformers with dual-coil windings, manufactured in-house for vanishingly low distortion.
• Zero Global Feedback: Employs a minimalist circuit topology with absolutely no global feedback, preserving the natural phase integrity and dynamics of the signal.
• DC Heated 845: The 845 tube is DC heated with a cathode balance adjustment to eliminate residual hum and heater voltage ripple for a pitch-black background.
• Point-to-Point Wiring: Built entirely by hand in Germany using meticulous point-to-point wiring techniques for superior reliability and signal purity.

Taming the 845 Giant

The 845 power triode is revered for its sonic capability but is notoriously difficult to drive, requiring a massive voltage swing (approx. 300V peak-to-peak) at the control grid. The SE-845 solves this with a unique single-stage driver circuit using a pair of EL822/CV2382 power tubes running in triode mode at high idle current. This driver stage provides the necessary swing and low output impedance to fully wake up the 845, resulting in a sound that combines the delicacy of a 300B with the scale, authority, and dynamic slam of a high-power amplifier.

The Heart of the System: In-House Transformers

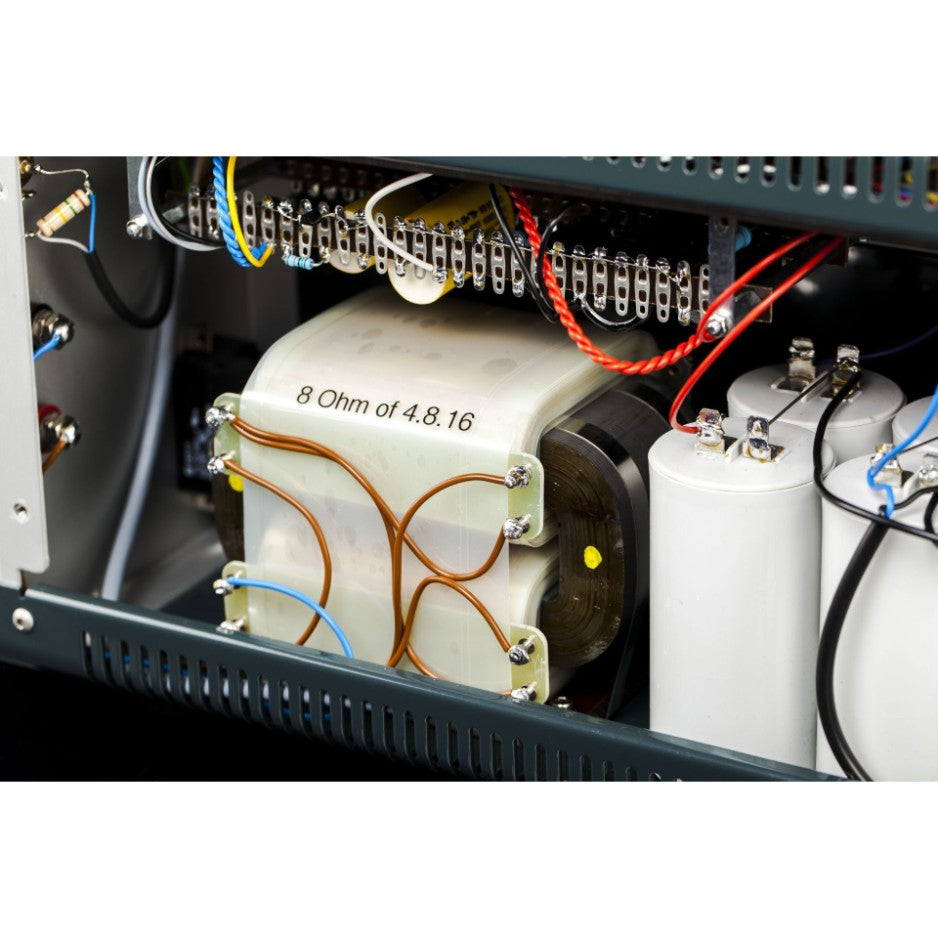

In any Single-Ended amplifier, the output transformer (OPT) is the most critical component. THÖRESS manufactures their OPTs in-house using an exceptionally large tape-wound cut core (C-core). This design offers far superior permeability and linearity compared to standard EI cores. The dual-coil winding technique ensures excellent frequency response and minimal phase shift, allowing the SE-845 to drive 4, 8, and 16-ohm loads with transparency and grip often missing from lesser SET designs.

Silence is Golden

To ensure the music emerges from a silent background, the SE-845 employs specific low-noise design choices. The 845 tube is heated via a filtered DC supply, and a rotary potentiometer allows the user to balance the cathode point perfectly against the filament, nulling out any residual hum. Furthermore, the mains transformer is also produced in-house and mounted on isolation elements to prevent mechanical vibration from reaching the sensitive audio circuit.

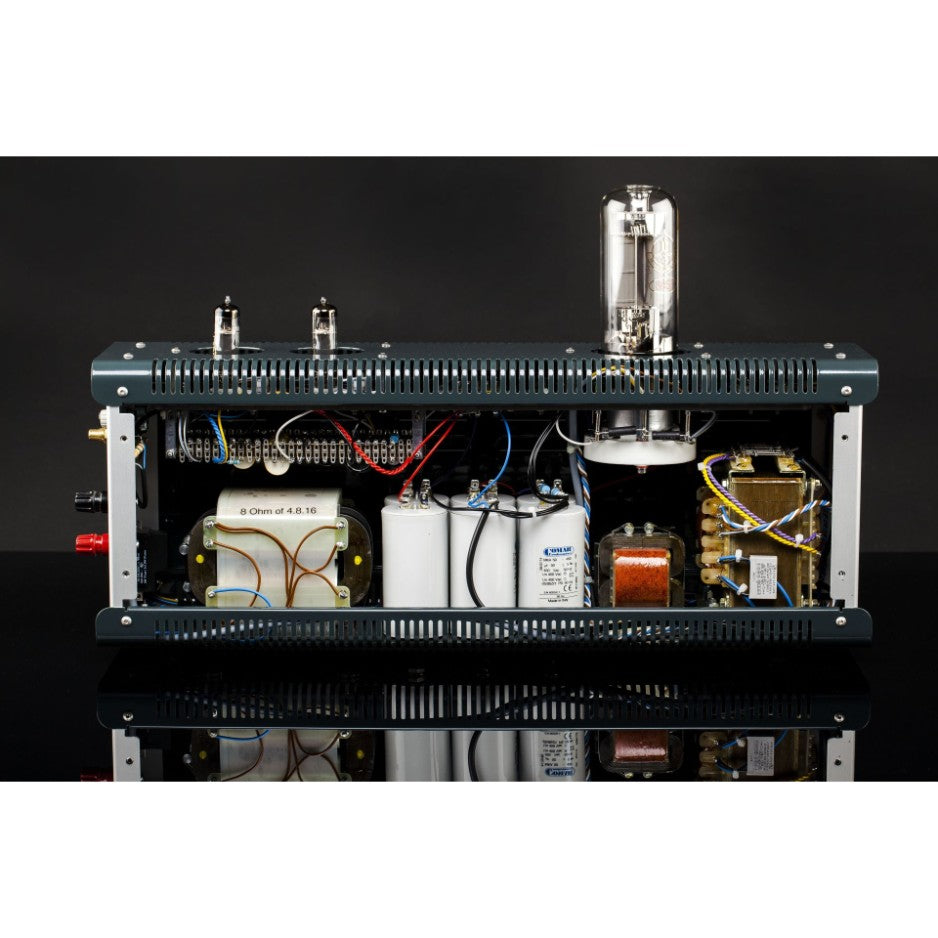

Purist Construction

True to the THÖRESS philosophy, the SE-845 eschews balanced circuitry (XLR) in favor of a pure single-ended (RCA) topology, which Thöress believes offers superior sonic fidelity. The chassis is non-magnetic aluminum, powder-coated in the brand’s signature retro-lab aesthetic. Inside, high-grade German-made electrolytic capacitors and a C-core filter choke ensure the power supply is as robust as the signal path is pure.
