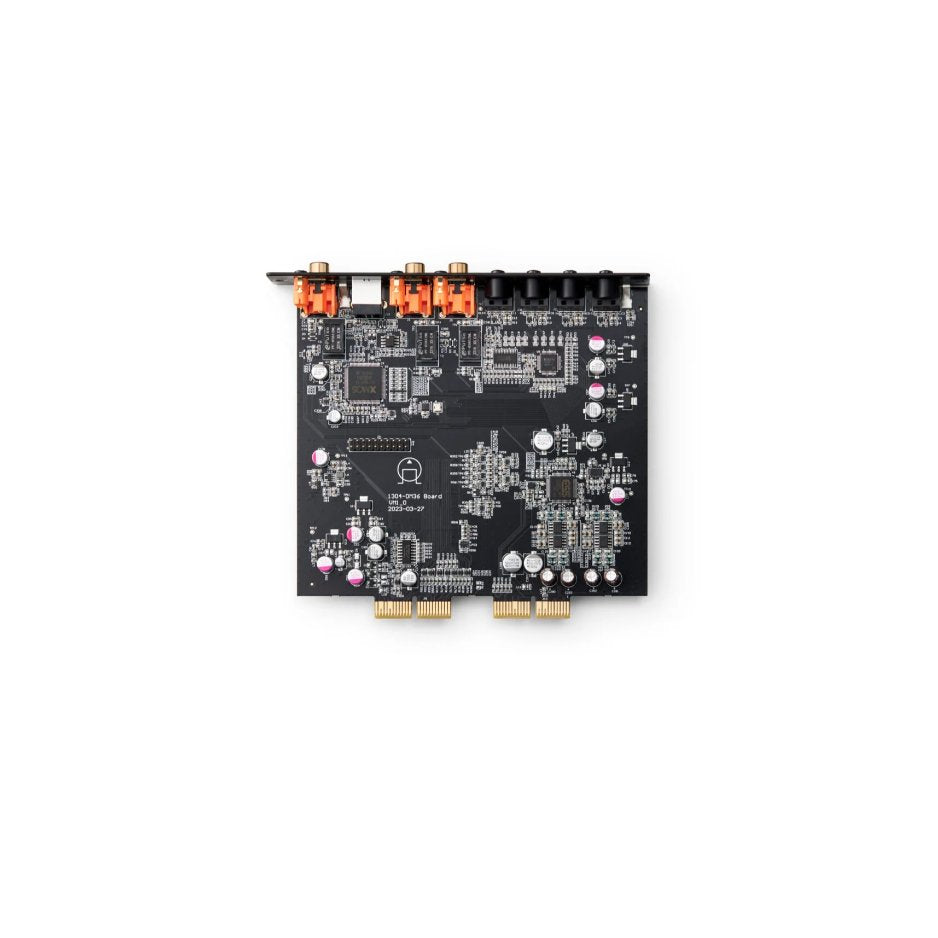

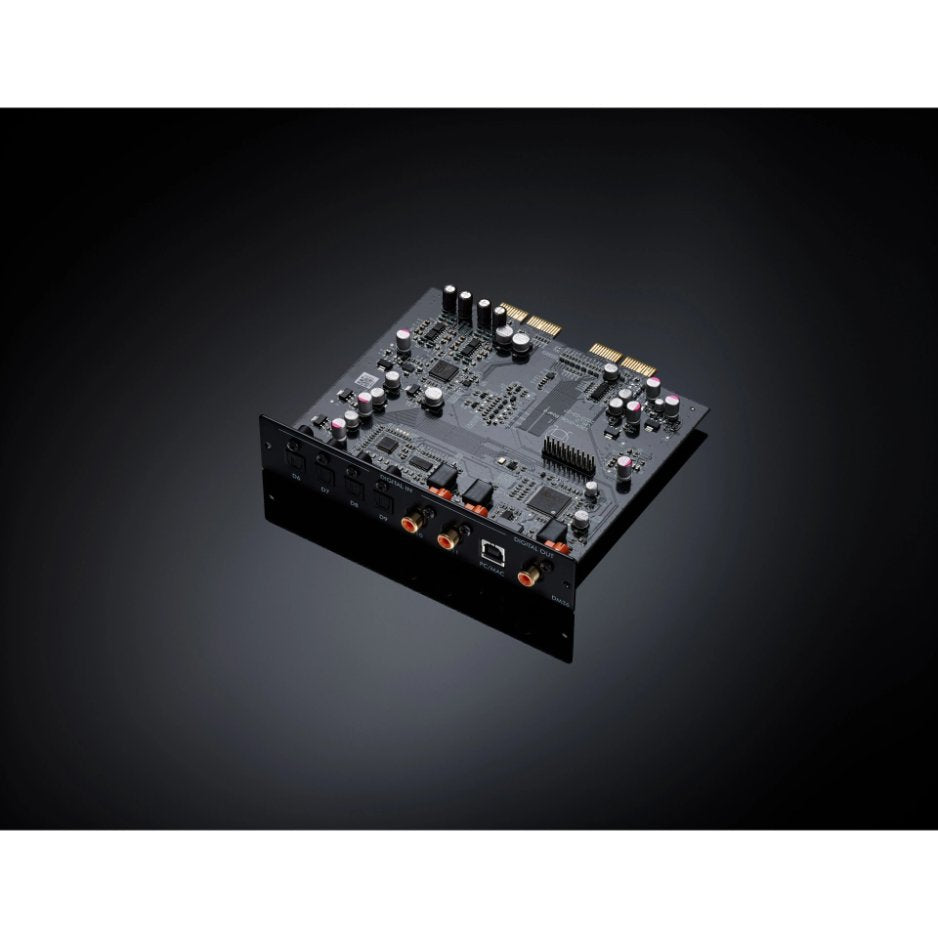

Primare DM 36 DAC Module

Primare DM36: The Ultimate Digital Upgrade

The Primare DM36 is a sophisticated Digital-to-Analog Converter (DAC) module designed to elevate the performance of your Primare I25, I35, or PRE35 component to new heights. Replacing the previous DM35, the DM36 is a complete redesign built around the advanced ESS ES9068A chipset. It significantly improves resolution, detail, and realism, offering a larger, more three-dimensional soundstage. This module transforms your integrated amplifier or preamplifier into a world-class digital hub, capable of processing high-resolution PCM and DSD files with stunning clarity and musicality.

Key Features:

• Advanced ESS Chipset: Utilizes the ESS ES9068A DAC chip for superior processing power, lower noise, and richer, more lifelike sound.
• High-Resolution Support: Capable of handling PCM files up to 384kHz/32-bit and DSD files up to DSD256 (11.2MHz).
• MQA Processing: Provides full MQA processing capabilities, allowing for the final unfold of Master Quality Authenticated files for studio-quality sound.
• Comprehensive Connectivity: Features 4 optical (Toslink) and 2 coaxial (RCA) inputs for up to 192kHz resolution, plus a USB-B input for computer connection.
• Digital Output: Includes an RCA coaxial digital output that passes native digital signals or selectable 48/96kHz output from analog sources.
• PCM Up-Sampling: A new user-selectable option up-samples lower resolution signals (16/44.1kHz, 24/48kHz) to higher bitrates for improved conversion accuracy.

A Leap in Sonic Performance

The DM36 represents a significant evolution in Primare's digital engineering. By moving to the ESS ES9068A chipset, the module delivers a sound that is more "fleshed out" and organic than its predecessor. Listeners will notice a richer tonal balance, improved texture in the midrange, and a more precise placement of instruments within the soundstage. Whether you are streaming via Prisma (requires SM35 module) or connecting a CD transport, the DM36 ensures you are hearing the full potential of your digital music library.

Full MQA Unfold

For subscribers of TIDAL HiFi and other high-resolution services, the DM36 is a game-changer. It supports full MQA processing, meaning it can perform the final "unfold" of MQA files up to 384kHz. This ensures that you are hearing the original master recording exactly as the artist intended, with all the timing and spatial information preserved. This feature integrates seamlessly with Primare's Prisma network player module (SM35) and compatible CD players.

Versatile Connectivity

The DM36 turns your amplifier into a digital control center. With a total of seven digital inputs, you can connect virtually any source—from a TV and game console via Optical, to a high-end CD transport via Coaxial, to a dedicated music server via USB-B. The USB input is particularly robust, supporting the highest resolution files available today, ensuring your system is future-proofed for years to come.

Customizable Upsampling

New to the DM36 is the ability to engage PCM up-sampling. This feature allows standard resolution audio (like CD quality) to be up-sampled before conversion, potentially smoothing out the digital staircase and providing a more analog-like presentation. This user-selectable feature allows you to tailor the digital processing to your specific taste and system synergy.

The Listening Room Difference

We’re a third-generation family business with a brick-and-mortar showroom in Chestertown, Maryland, and a reputation built on trust, not hype. Whether you’re visiting in person or ordering online, we bring decades of experience, personalized service, and honest guidance to every interaction. We don’t just ship boxes. We help build systems, answer your questions like real humans, and make sure every detail of your setup is right, from the cables to the final connection. Our passion is helping you get the most out of your gear, with support that lasts well beyond the sale.

Specifications
