Wilson Benesch Tessellate Ti-D Cartridge

The Wilson Benesch Tessellate Ti-D is the flagship of the Tessellate range, pairing a diamond cantilever with Wilson Benesch's SLS titanium cartridge platform to create a moving coil cartridge with the fastest transient response and highest resolution the line can deliver. Diamond is the stiffest, lightest cantilever material available, and when combined with Wilson Benesch's hybrid cantilever technology and tessellated titanium body, the Ti-D extracts information from vinyl grooves at a level that puts it among the finest cartridges made today.

Key Features of the Wilson Benesch Tessellate Ti-D Cartridge

• SLS Titanium Body: 3D-printed titanium housing with tessellated architecture achieves the stiffness of an 18mm solid titanium structure at less than 30% of the mass
• Diamond Cantilever: Solid diamond rod paired with a micro ridge stylus (3x80 micrometer tip) for the fastest transient response and highest detail retrieval in the Tessellate range
• Hybrid Cantilever Technology: Uni-directional carbon fiber damping sleeve at the cantilever midpoint controls resonance behavior with virtually zero added mass
• Pure Iron Square Coil Generator: 0.35mV output at 6 ohms impedance, housed in a non-magnetic titanium body that eliminates external field interference
• Widest Bandwidth: 20-32,000Hz frequency response within plus or minus 1dB, with channel separation exceeding 35dB at 1kHz
• Includes the FIN: Tessellated titanium resonance control accessory that mounts opposite the cartridge body to lower the noise floor
• Three Finish Options: Matt Titanium (raw SLS texture), Polished Silver (hand-polished mirror), and Polished Gold (vapor-deposited gold coating)

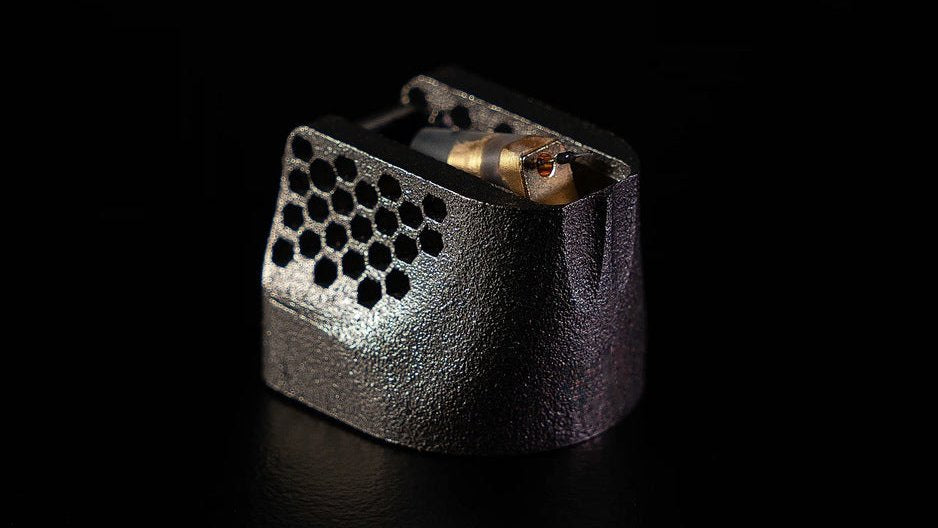

SLS Titanium Body with Tessellated Architecture

The Ti-D shares its body with every cartridge in the Tessellate range: a one-piece titanium structure built using Selective Laser Sintering additive manufacturing in partnership with Renishaw PLC. The SLS process constructs the body layer-by-layer from titanium alloy powder, creating a semi-open, tessellated geometry drawn from the biomimetic principles of natural bone tissue optimization. Wilson Benesch's topology-optimized design achieves the stiffness equivalent of an 18mm solid titanium structure at less than 30% of the mass, with zero material redundancy. Tessellated cavities filled with viscoelastic adhesive convert mechanical energy to heat across a broad surface area, while the curved semi-open headshell geometry eliminates reflective surfaces and avoids high-Q resonances near the cantilever.

Diamond Cantilever with Micro Ridge Stylus

Diamond is the hardest naturally occurring material and possesses the highest speed of sound of any cantilever material used in phono cartridge design. This translates to ultra-fast transient response with life-like immediacy, where musical attacks and decays are rendered with a speed and precision that other cantilever materials cannot match. The Ti-D's hybrid cantilever technology adds Wilson Benesch's uni-directional carbon fiber damping sleeve, positioned asymmetrically at the cantilever's midpoint. This world-first combination adds virtually no mass yet provides significant additional stiffness and damping, controlling the resonance behavior that even diamond cantilevers exhibit. The micro ridge stylus with its 3x80 micrometer tip radius reads the finest groove modulations, retrieving low-level musical detail that wider stylus profiles leave behind.

Pure Iron Square Coil Generator

The Ti-D's generator uses pure iron square coils, delivering an output voltage of 0.35mV at 3.54cm/s with an internal impedance of 6 ohms. Recommended loading is between 100 and 330 ohms. The non-magnetic titanium body ensures complete isolation of the generator from external field interactions, preserving signal integrity at the source. This is a meaningful advantage over aluminum-bodied cartridges, where the body material itself can introduce magnetic interference.

Reference-Level Performance

The diamond cantilever extends the Ti-D's frequency response to 20-32,000Hz within plus or minus 1dB, the widest bandwidth in the Tessellate range. Channel separation exceeds 35dB at 1kHz, and tracking ability reaches 85 micrometers at 315Hz, the highest figure across all three models. Dynamic compliance of 15 micrometers per millinewton ensures excellent groove tracing, while the optimum tracking force of 1.3 grams (slightly lower than the Ti-B and Ti-S) reflects the diamond cantilever's superior efficiency in translating groove modulations to electrical signal. The Ti-D's sonic character is very neutral, with tight, impactful bass, maximum micro-detail retrieval, and an extended, clean treble free of glare.

The FIN Resonance Control

The Ti-D ships with the FIN, a tessellated titanium accessory that mounts opposite the cartridge body to mitigate resonances at their source. At this price level, every fraction of performance matters, and the FIN's contribution to lowering the noise floor is readily audible. When paired with Wilson Benesch's own tonearms featuring helical-wound carbon fiber headshells and cork gasket interfaces, the system creates a comprehensive resonance management pathway from stylus tip to tonearm pivot.

The Wilson Benesch Tessellate Ti-D in Your System

At 17.1 grams with a recommended tracking force range of 1.1 to 1.4 grams, the Ti-D is designed for medium-mass tonearms. Wilson Benesch recommends an optimum operating temperature of 23 degrees Celsius and a 30-hour break-in period. The Ti-D represents the culmination of decades of Wilson Benesch cartridge research, from their pioneering carbon fiber cartridge bodies of the 1990s developed with Benz-Micro through to today's SLS titanium platform. For those seeking the absolute best the Tessellate architecture can deliver, the Ti-D is the cartridge.

The Tessellate Ti-D sits at the top of a three-cartridge range. The Tessellate Ti-B offers the range's entry point with a boron cantilever and elliptical stylus, while the Tessellate Ti-S bridges the gap with a sapphire cantilever and micro ridge stylus. All three cartridges pair naturally with the Wilson Benesch Graviton Ti tonearm and the Wilson Benesch GMT ONE System turntable.

Three Finish Options

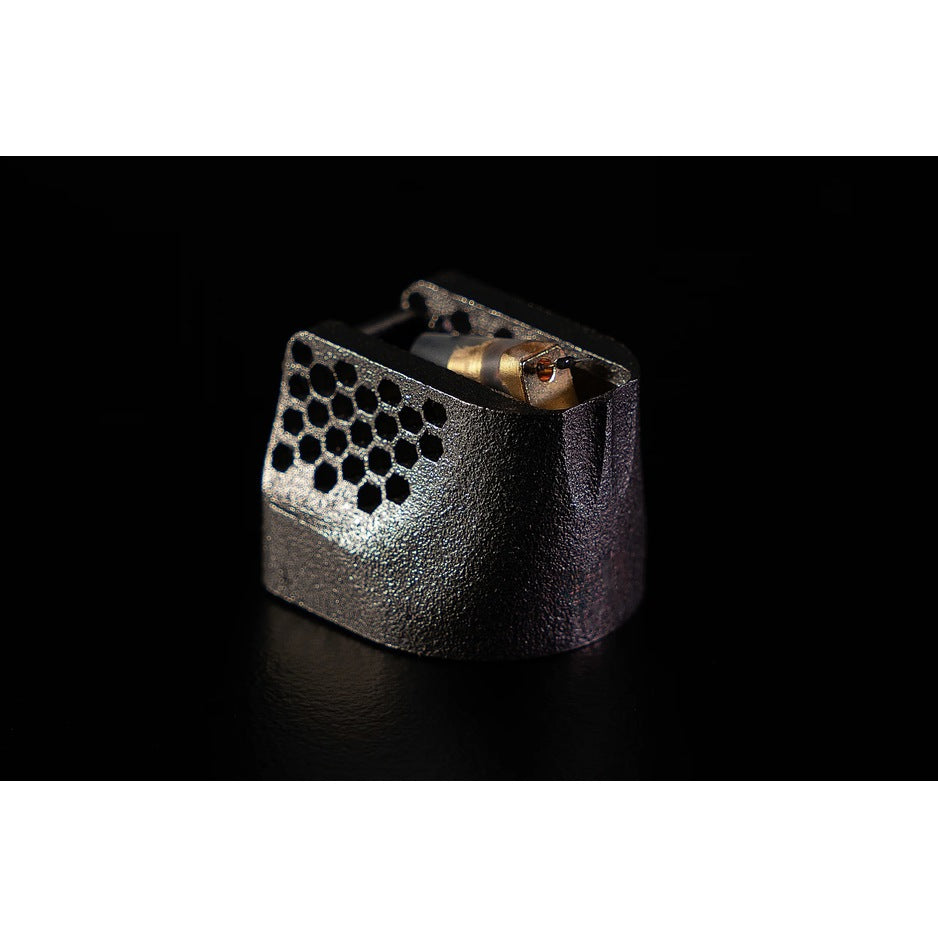

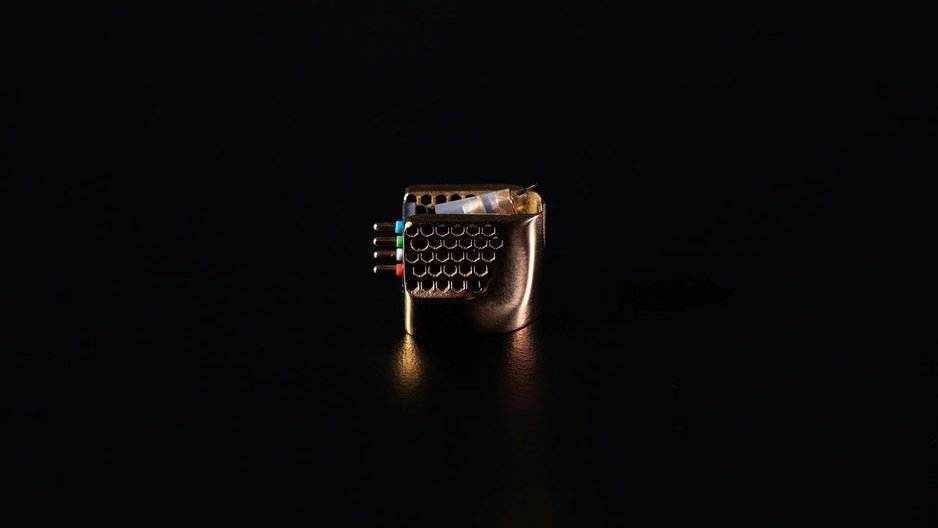

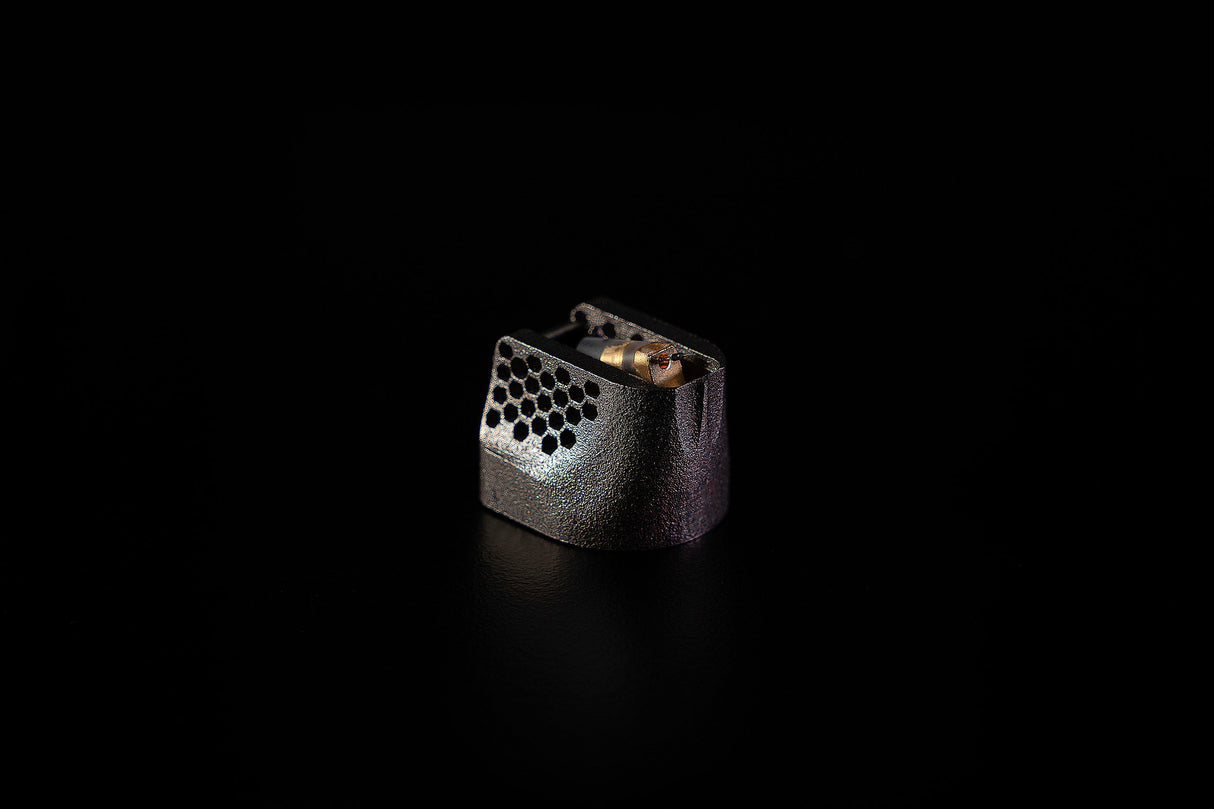

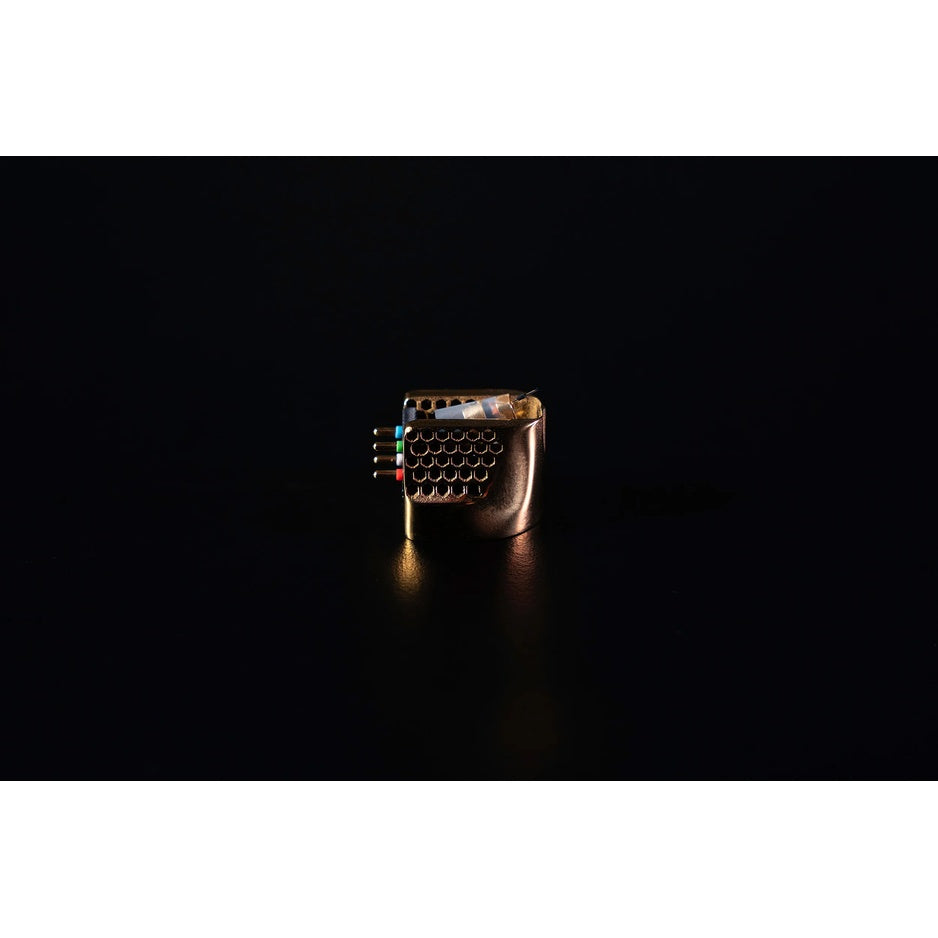

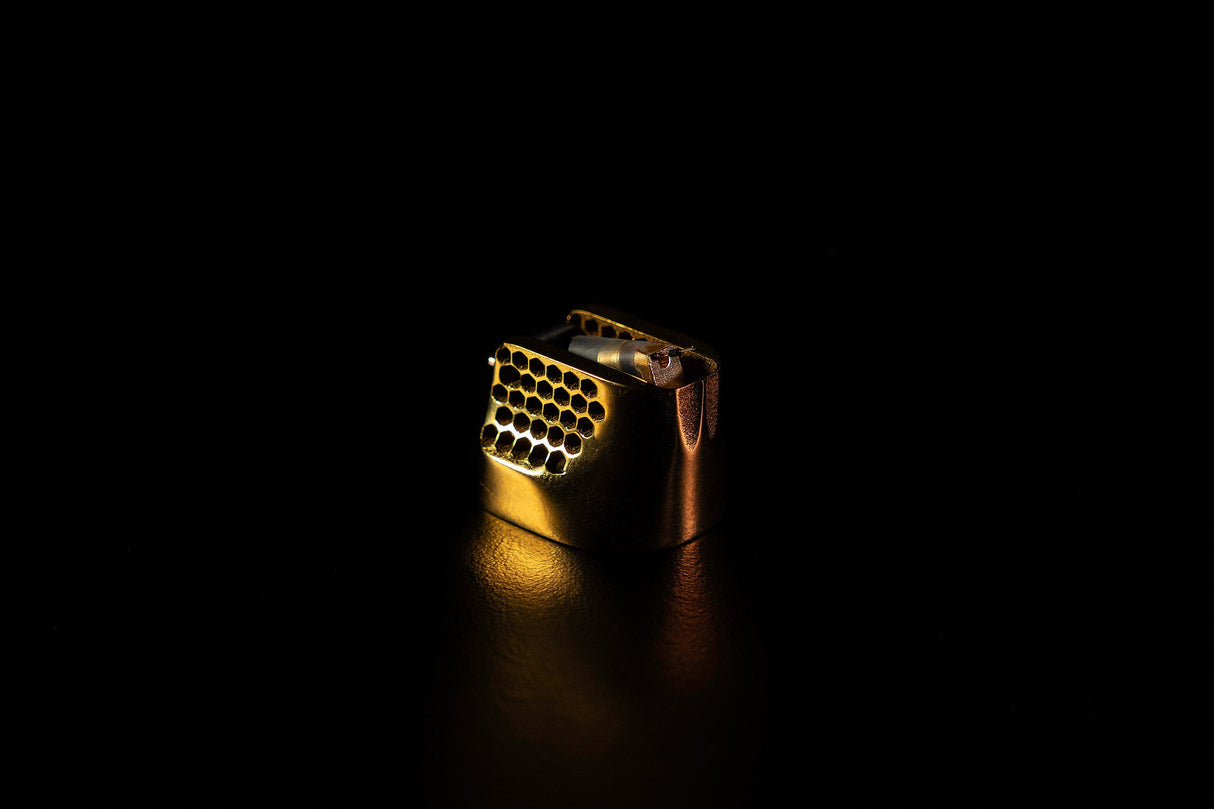

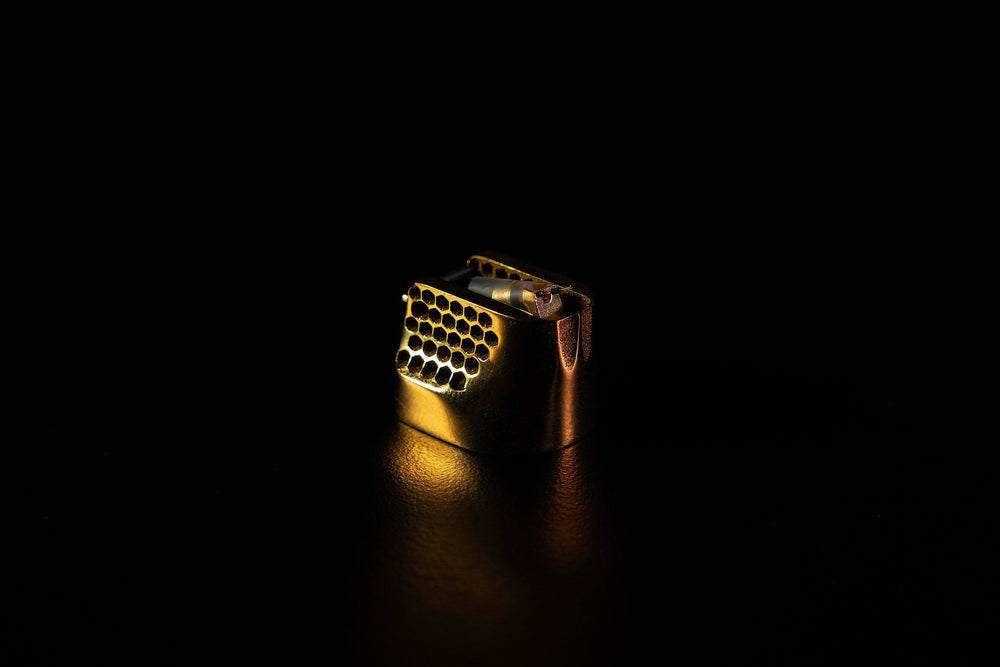

The Tessellate Ti-D is available in Matt Titanium, which retains the raw texture of the SLS manufacturing process; Polished Silver, with a hand-polished mirror finish; and Polished Gold, featuring a vapor-deposited gold coating over the hand-polished surface. All finishes are purely aesthetic with no impact on acoustic performance.
