Wilson Benesch Graviton Ti Armwand

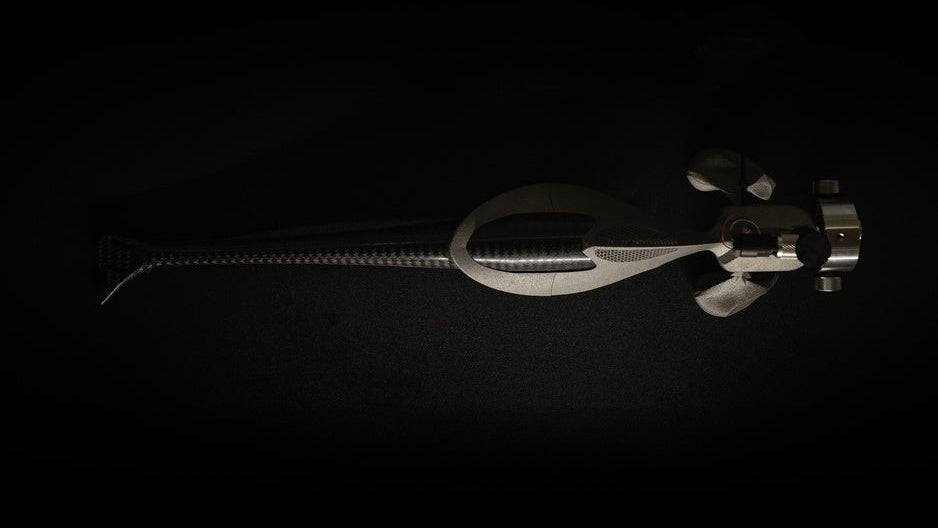

The Wilson Benesch Graviton Ti Armwand is a 12-inch tonearm that draws on over three decades of composite engineering and additive manufacturing research to deliver what may be the most technically advanced arm ever fitted to a turntable. Built around a hand-laid graphene-reinforced carbon fiber arm tube married to 3D-printed titanium structures, it pursues a single goal: sonic invisibility, letting the cartridge and record speak without coloration or mechanical interference. Designed as the reference arm for the Wilson Benesch GMT ONE System, the Graviton Ti is also available as a standalone armwand for compatible turntables, and it pairs naturally with Wilson Benesch's own Tessellate Ti-B, Ti-S, and Ti-D cartridges.

Key Features of the Wilson Benesch Graviton Ti Armwand

• Hand-laid graphene-reinforced carbon fiber arm tube with quadruple helical ply orientation and Rohacell sandwich core
• SLS (Selective Laser Sintered) titanium counterbalance and pivot structures with tessellated internal geometry
• Zirconium-based kinematic bearing system with hybrid tri-point contact for stiction-free movement
• Piezo VTA system capable of 1-nanometer adjustment increments (on Wilson Benesch turntables)
• STAGE One over-arm cable routing with copper-shielded enclosure and less than one inch of unshielded signal path
• Monolithic headshell and arm tube molded as a single continuous structure

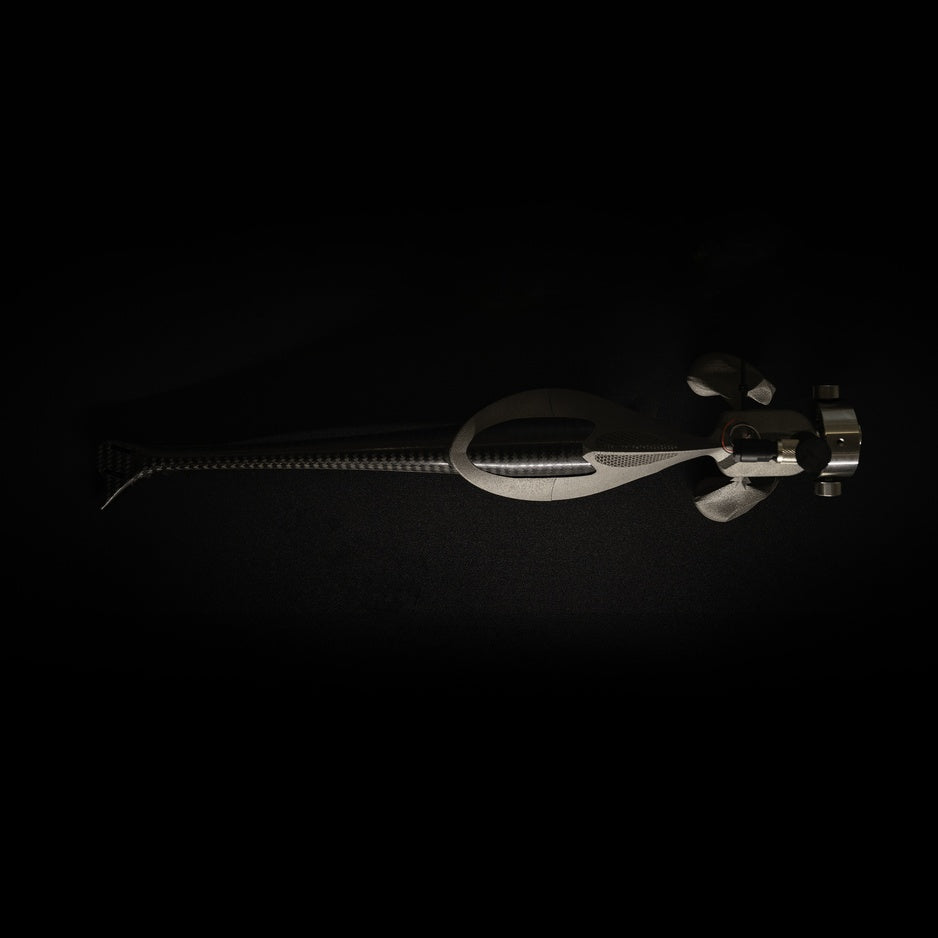

• EcoGrip hydraulic chuck for stress-free armtube-to-bearing-hub union
• 4N high-purity silver internal wiring with Teflon insulation and 5-pin DIN connector

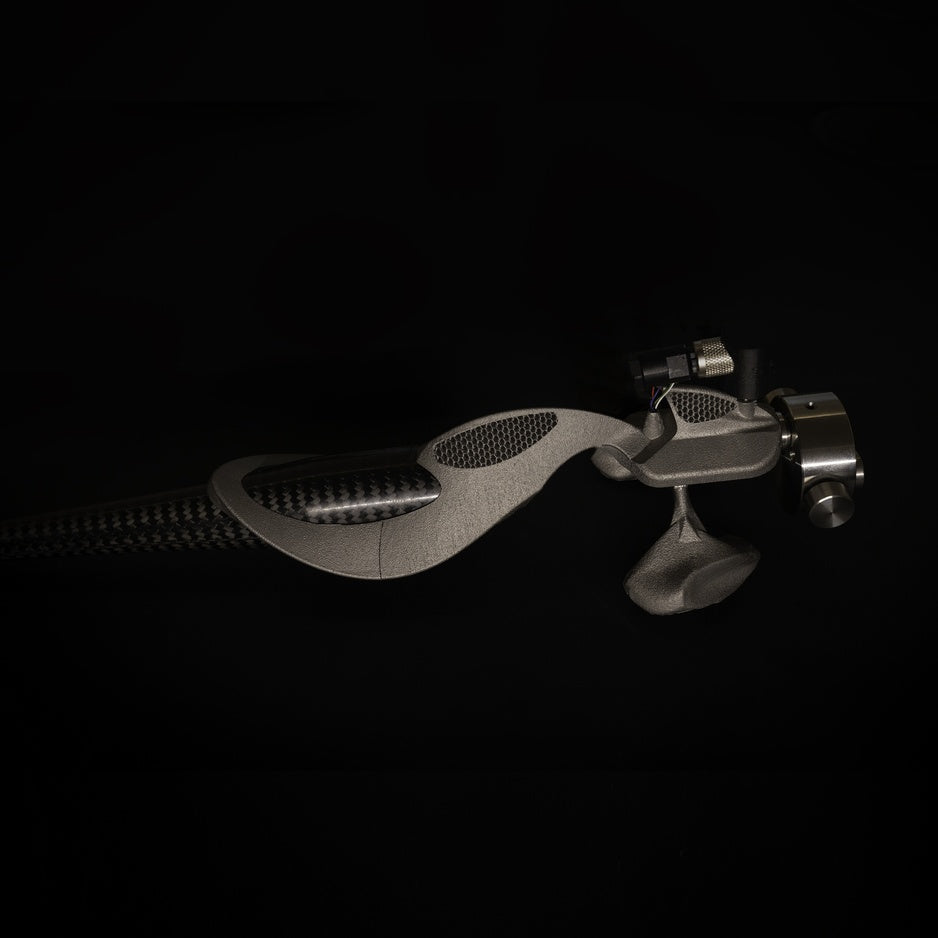

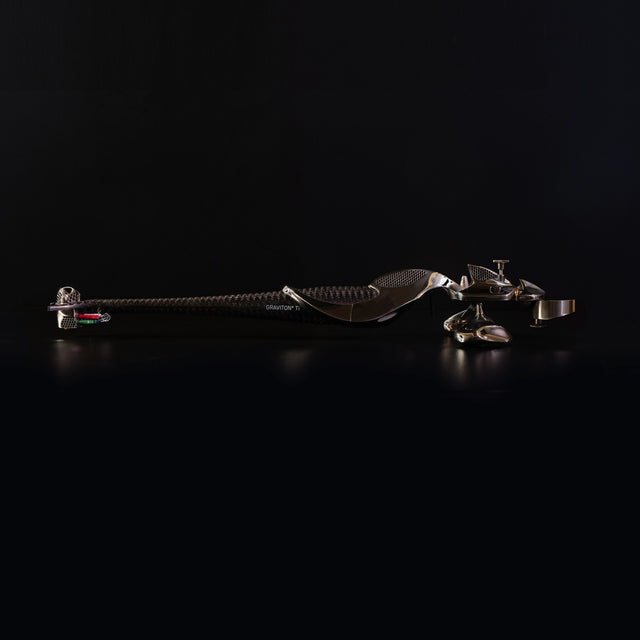

• Three titanium finishes: Matt Titanium, Polished Silver, and Polished Gold
• 1.5m phono cable included

Graphene Carbon Fiber Arm Tube

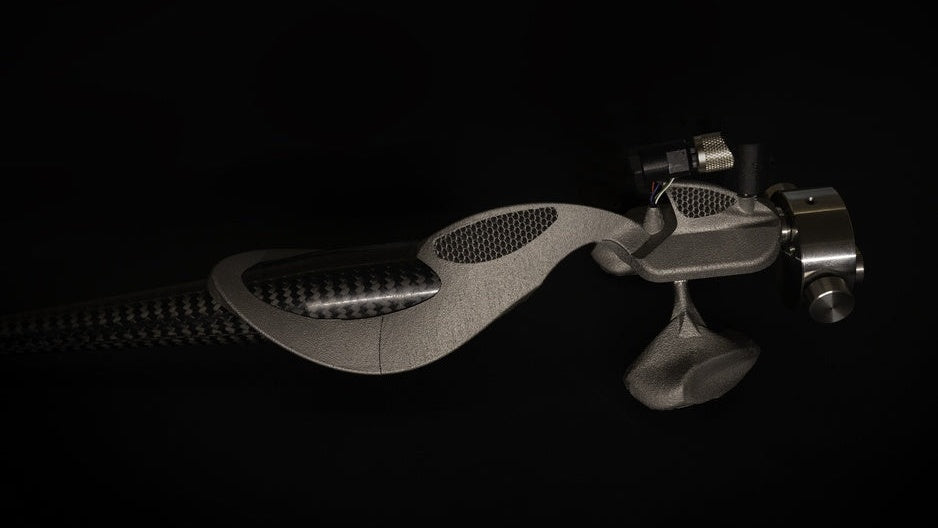

The heart of the Graviton Ti is its arm tube, and Wilson Benesch builds it entirely in-house at their Sheffield, England facility using a proprietary Vacuum Resin Transfer Moulding (VRTM) process. Uni-directional carbon fibers are hand-laid in a quadruple helical pattern around a Rohacell sandwich core, then infused with a graphene epoxy matrix. The resulting structure follows a hyperbolic curve geometry, validated through Wilson Benesch's participation in the EU-funded SSUCHY research project at France's FEMTO Institute.

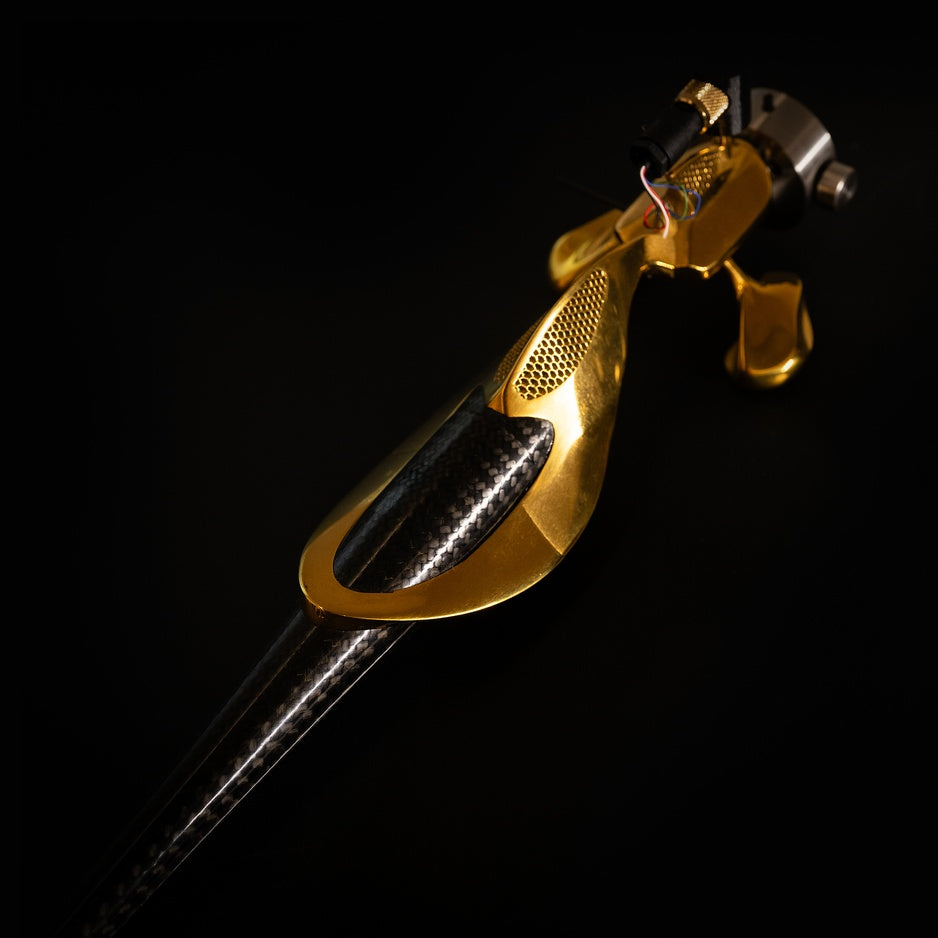

This is not a generic off-the-shelf carbon tube. The quad-helix layup distributes stiffness and damping anisotropically across multiple axes, while the graphene matrix adds rigidity without adding mass. Under testing, the arm tube deflects just 0.003mm when subjected to 1,232 psi of stress. The headshell is molded as a continuous extension of the arm tube itself, eliminating the reflective junction found in conventional arms where a separate headshell bolts onto the wand. Vibrational energy travels through a single uninterrupted path and is dissipated rather than reflected back toward the stylus.

SLS Titanium Manufacturing

The counterbalance, pivot housing, and structural elements of the Graviton Ti are manufactured through Selective Laser Sintering, a 3D printing process that builds titanium structures layer by layer from metal powder. Wilson Benesch developed these components in collaboration with the Advanced Manufacturing Research Centre (AMRC) at the University of Sheffield and Renishaw PLC, a world leader in precision metrology and additive manufacturing.

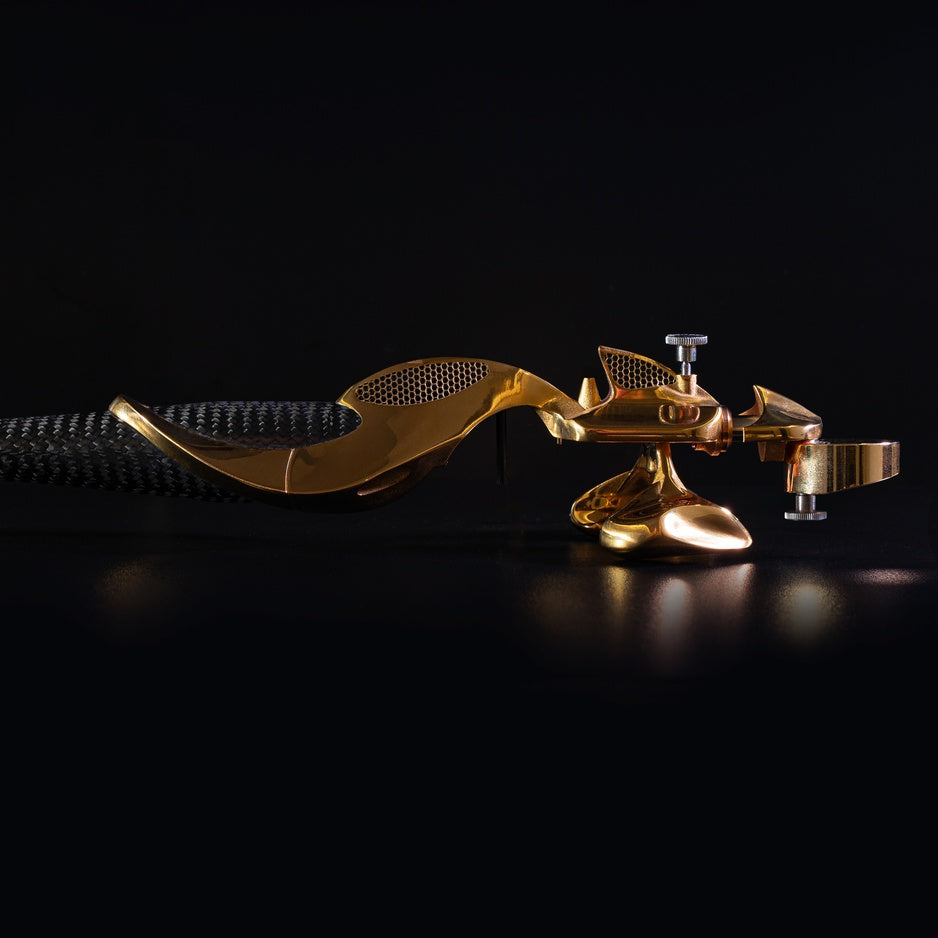

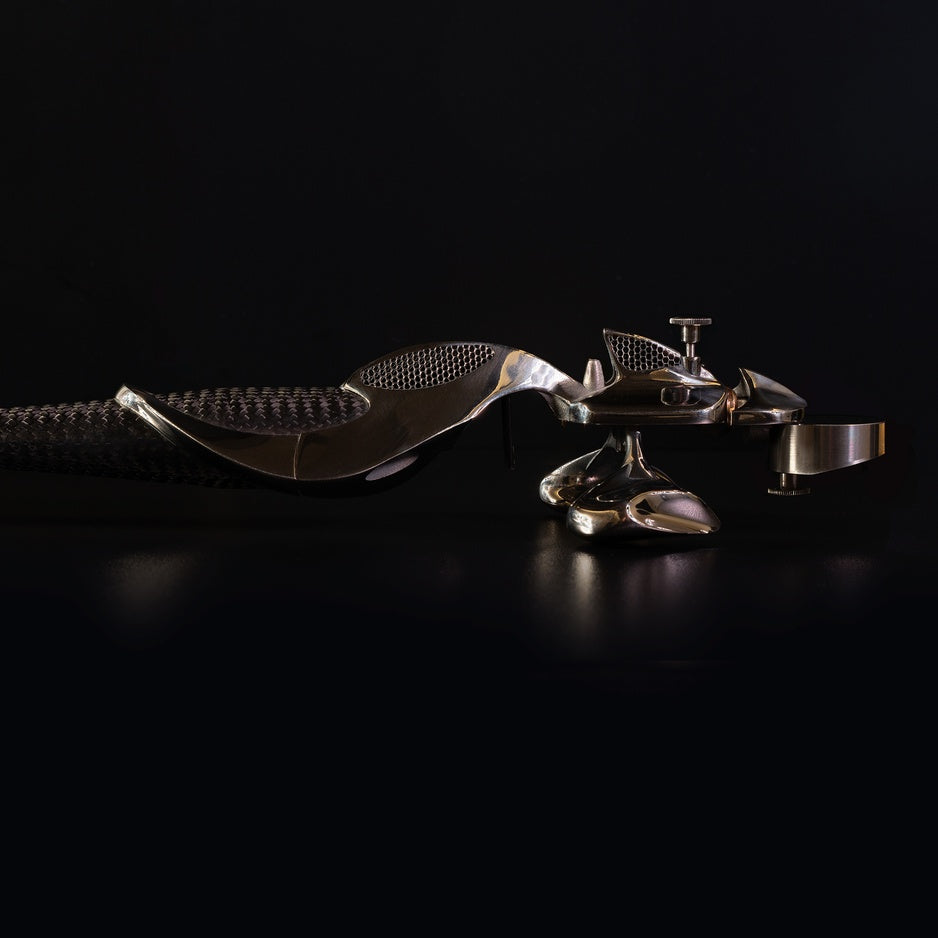

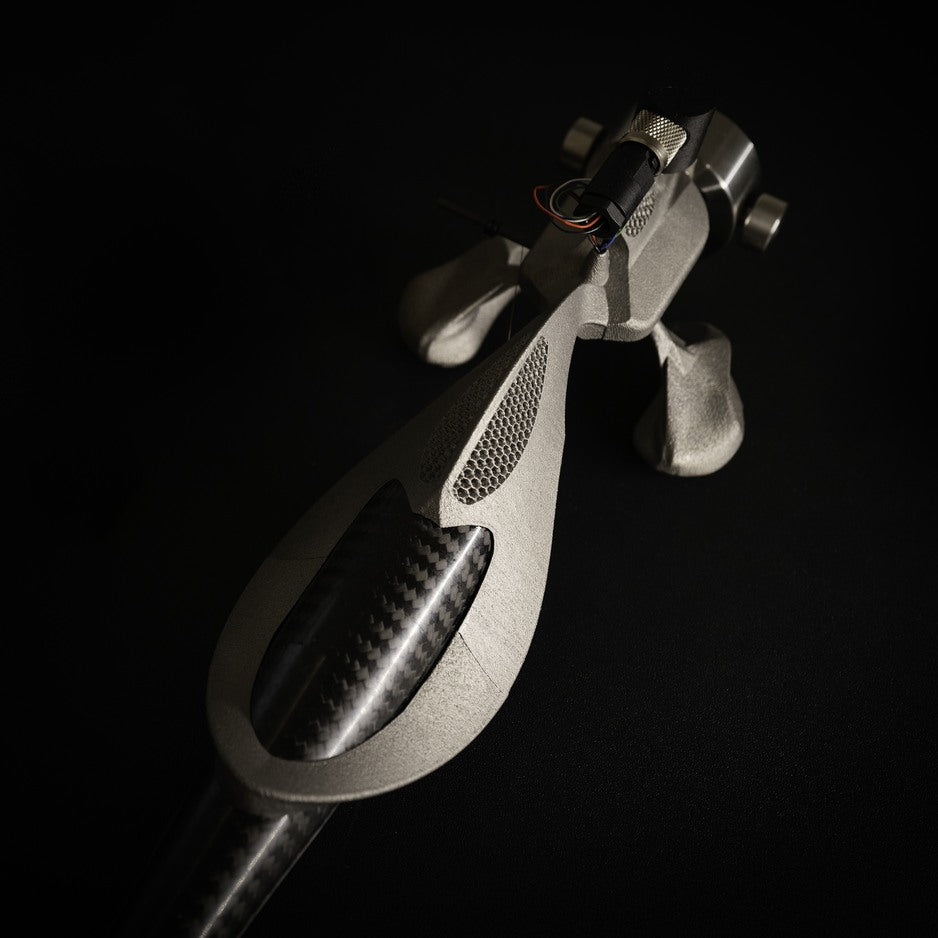

What makes this process relevant to sound quality is how it enables internal geometries that are impossible to achieve through conventional machining. The counterbalance structure transitions from hollow sections near the arm, to tessellated lattice sections under the pivot, to solid form at the bearing interface. Each zone is optimized for its mechanical purpose. The tessellated geometry, inspired by natural structures, maximizes the stiffness-to-weight ratio while providing built-in vibration damping through un-sintered titanium powder retained within the lattice. The titanium structures follow the helix of the carbon fiber layup, creating a large, precisely matched surface area interface for efficient energy transfer between materials.

Zirconium Kinematic Bearing System

The Graviton Ti's bearing system uses three 1mm balls arranged in a kinematic configuration: two zirconium balls and one conductive steel ball that also provides the ground path. This tri-point arrangement creates infinitesimal, perfectly defined contact points that eliminate the stiction (static friction) that plagues conventional bearing designs. The result is that the arm moves with virtually zero resistance, allowing the stylus to track groove modulations with a fidelity that simply is not available from arms with greater bearing friction.

The kinematic approach means each ball sits in a precision-machined seat, and the bearing position is defined by geometry rather than by clamping force. There is no play, no slop, and no stick-slip behavior at the transition between static and dynamic friction. The arm simply follows wherever the groove leads.

Piezo VTA System

When the Graviton Ti is fitted to a Wilson Benesch turntable (the GMT ONE System or Prime Meridian), it gains access to the Piezo VTA adjustment system. This piezo-driven mechanism adjusts Vertical Tracking Angle in increments as fine as 1 nanometer, approximately 80,000 to 100,000 times finer than the width of a human hair. VTA position is displayed numerically through the GMT Control App, and settings can be saved and recalled for different records or cartridges.

The VTA column also incorporates a damping reservoir for resonance control, ensuring that the precision of the adjustment mechanism is not undermined by mechanical resonance at the mounting point. For users running the Graviton Ti on third-party turntables, VTA is set manually through the armboard mount.

STAGE One Cable Routing and Signal Path

Most tonearms route their internal wiring out the back of the arm, creating a cable loop that exerts torsional force on the bearing assembly. Wilson Benesch's STAGE One design takes a fundamentally different approach: the tonearm wire exits vertically, directly above the pivot point, into a compact copper-shielded enclosure. Less than one inch of cable is exposed between the arm tube and the shielded chamber.

The internal wiring itself is flexible high-purity 4N silver with Teflon insulation, terminating into a 5-pin DIN connector that feeds into the STAGE One interface. From there, a 1.5m phono cable carries the signal to the phono stage. By eliminating the conventional cable loop and minimizing the unshielded signal path, the STAGE One design reduces both mechanical interference from cable drag and electromagnetic interference from environmental noise sources. At the microvolt signal levels that a phono cartridge produces, these are meaningful improvements.

The FIN and Tessellate Cartridge Integration

The Graviton Ti includes the FIN, a titanium arch manufactured via SLS that connects the cartridge body to the tonearm headshell. The FIN is specifically designed for integration with Wilson Benesch's Tessellate Ti cartridge range (the Ti-B, Ti-S, and Ti-D), creating a rigid, low-mass mechanical interface between transducer and arm. The FIN's geometry distributes mounting stress evenly and provides a direct path for vibrational energy from the cartridge body into the arm tube, where it is dissipated by the carbon fiber and graphene matrix.

While the Graviton Ti accepts standard-mount cartridges from any manufacturer, the engineering synergy with the Tessellate line is deliberate. The arm's 14g effective mass pairs well with medium-compliance moving coil cartridges, and the FIN interface eliminates the mechanical compromises inherent in conventional headshell bolt patterns.

Design Heritage and Engineering Validation

Wilson Benesch has been building carbon fiber tonearms since 1989, when the A.C.T. One became the first-ever carbon fiber tonearm. The Graviton Ti represents the culmination of that lineage, informed by decades of research in composite materials, bearing systems, and signal path design. Key principles, including the hyperbolic curve geometry, the 0/90-degree fiber orientation for maximum torsional stiffness, and the monolithic headshell construction, were validated through collaborative research with Sheffield Hallam University and France's FEMTO Institute as part of the EU SSUCHY Project.

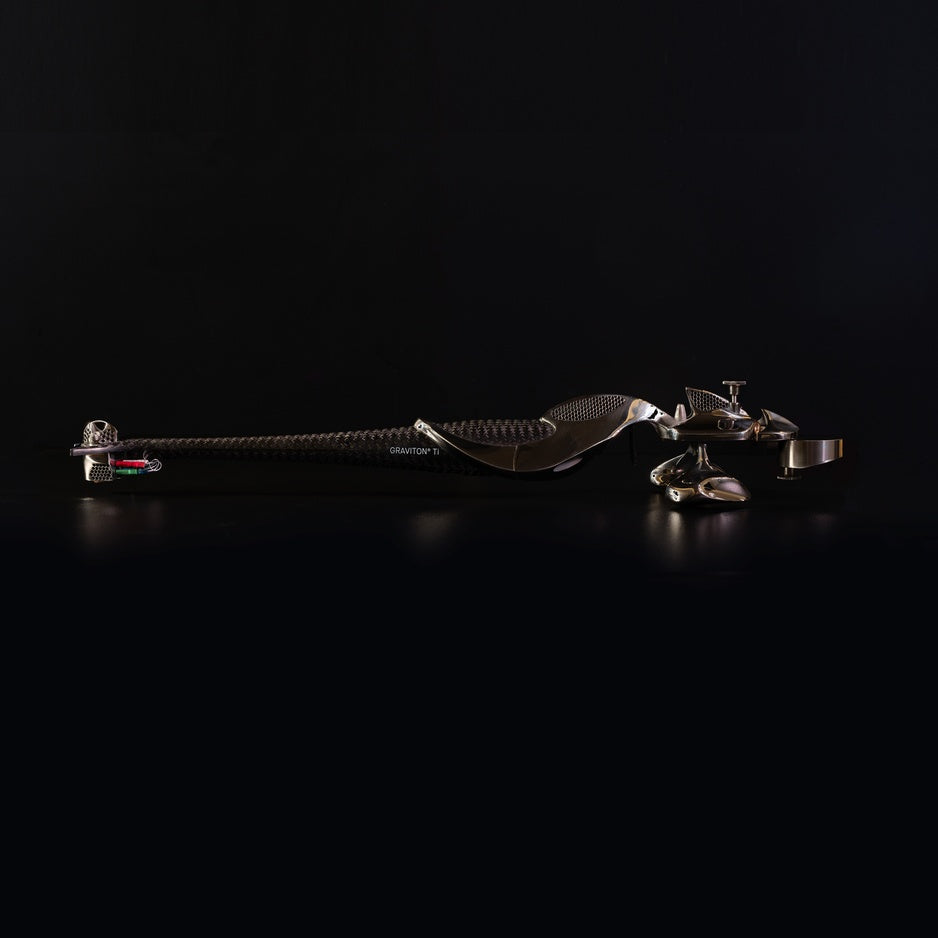

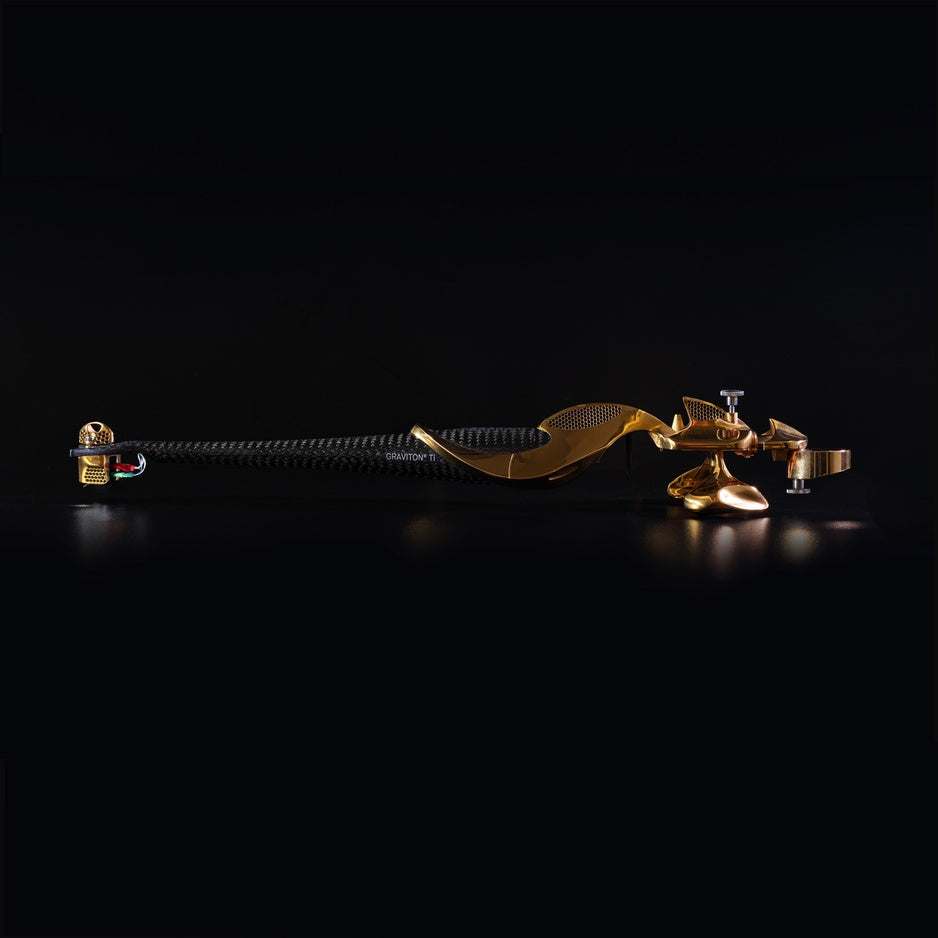

The arm is manufactured entirely in Sheffield, England. Every arm tube is hand-laid by Wilson Benesch's composite team, every titanium structure is printed and finished in-house, and every unit is individually assembled and tested. Available in three titanium finishes (Matt Titanium, Polished Silver, and Polished Gold), the Graviton Ti is both a technical instrument and a visual statement.
