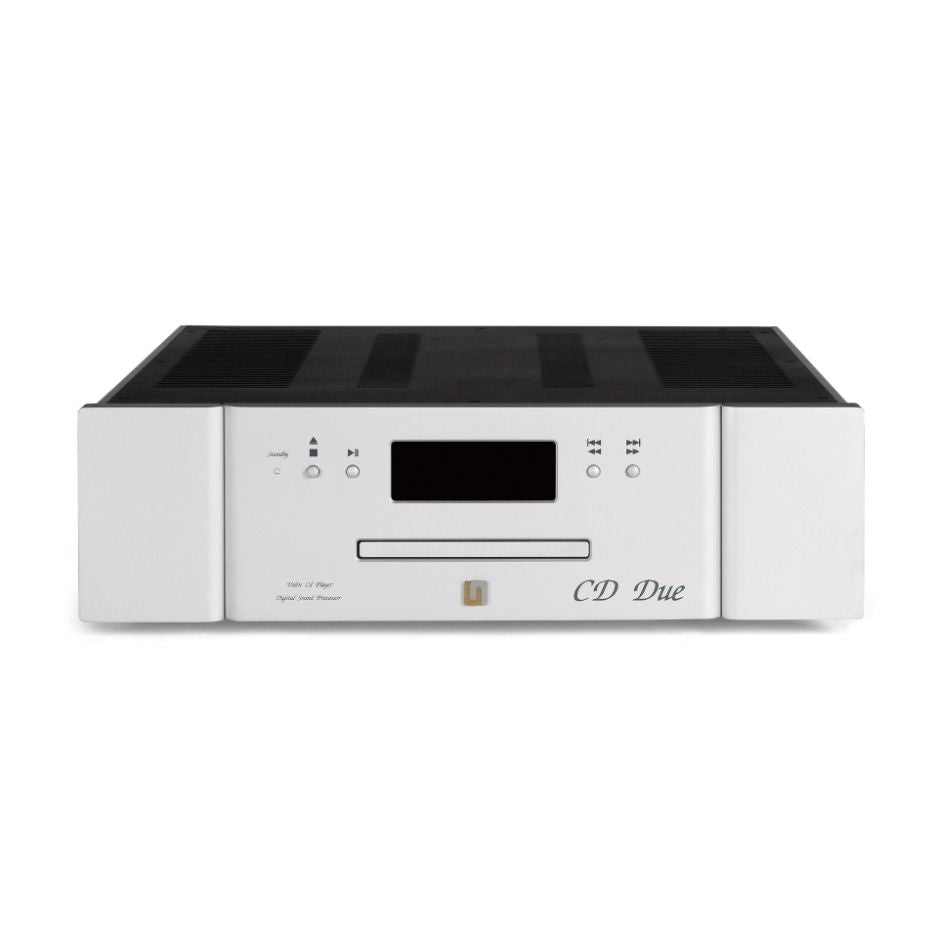

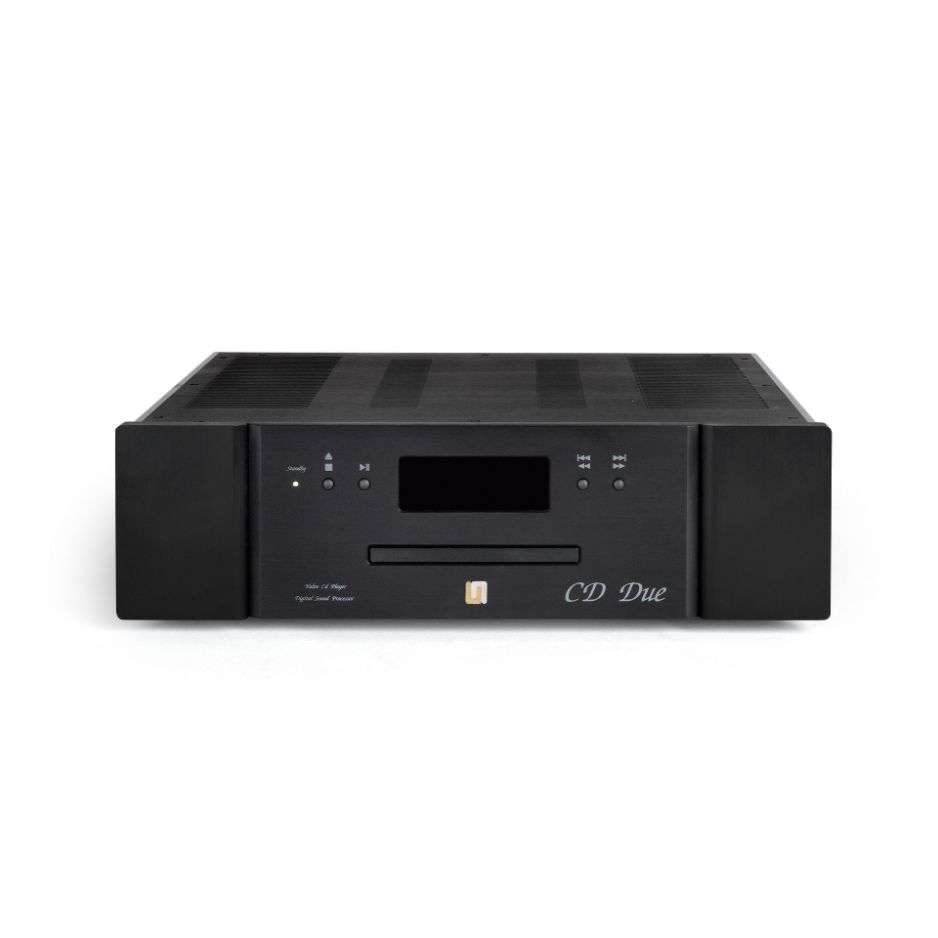

Unison Research Unico CD Due CD Player

The Unison Research Unico CD Due is a high-end digital-to-analog converter (DAC) with an integrated CD player, blending classic analog sound with modern digital capabilities. Designed for both CD playback and high-resolution audio files from various sources, the CD Due offers flexibility and exceptional audio performance. Its solid build quality and extensive feature set make it an excellent choice for enhancing any high-fidelity audio system.

Key Features

• Hybrid Tube Output Stage: Utilizes four ECC83 tubes for a rich, detailed sound.

• Versatile Digital Inputs: USB, Bluetooth, S/PDIF, AES/EBU, and Toslink inputs for easy connectivity.

• High-Resolution Playback: Supports up to 384kHz PCM and 11.2MHz DSD for top-notch audio quality.

• User-Friendly Display: White OLED display with clear visibility and adjustable brightness.

• Customizable Sound: Three digital filters to adjust sound characteristics to your preference.


About Unison Research

Unison Research, founded in Italy, has a long-standing reputation for crafting high-fidelity audio equipment that marries traditional craftsmanship with cutting-edge technology. Each product reflects their passion for music and dedication to producing equipment that delivers both sonic excellence and visual beauty.

Design and Build Quality

The Unico CD Due features a sleek design that complements the Unico 150 and Unico 90 amplifiers, with a distinctive three-fold faceplate, white LED indicators, and a clear OLED display. The display can be turned off for a distraction-free listening experience. Built with a metal chassis and a shielded CD mechanism, the CD Due is designed to reduce vibrations and ensure long-lasting durability.

Sound Performance

The sound quality of the CD Due is defined by its hybrid tube output stage. Using four ECC83 tubes in a totem pole configuration, the unit combines the warm, engaging sound of tubes with the dynamic performance of solid-state technology. High-quality Wima and Mundorf capacitors further enhance clarity and reduce noise, providing a balanced, immersive listening experience suitable for various music genres.

Connectivity and Versatility

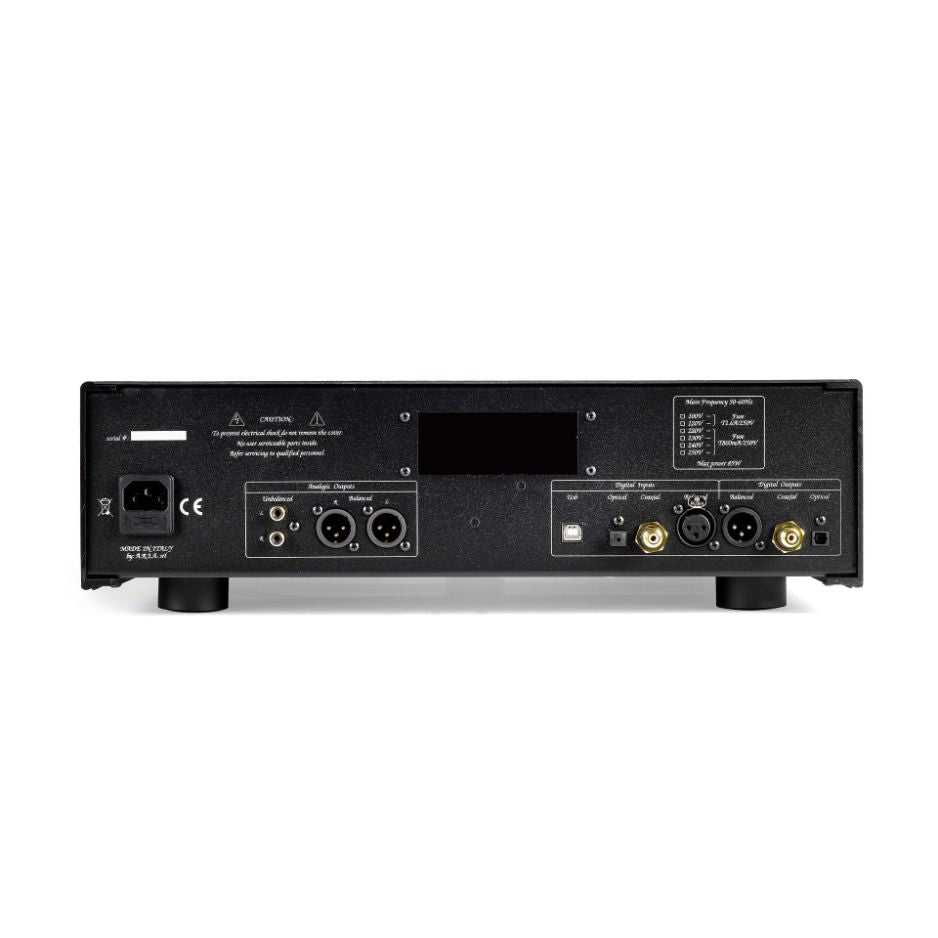

The Unico CD Due is equipped with a wide range of digital inputs, including USB, coaxial S/PDIF, balanced AES/EBU, optical Toslink, and a built-in Bluetooth receiver for wireless streaming from smartphones, tablets, and computers. These inputs make it easy to connect the CDDue to nearly any digital audio source, from standard CDs to high-resolution digital files. The CDDue also offers both balanced and unbalanced analog outputs for flexible integration with different audio systems.

Advanced Digital Processing

The CD Due uses the ESS Sabre ES9018K2M DAC chip, known for its high signal-to-noise ratio of 128 dB and low distortion of 0.0003%. An FPGA processor enhances the responsiveness and functionality of the digital section, providing better handling of audio data. Users can choose from three digital filters to fine-tune the sound to their liking, whether they prefer enhanced temporal coherence, phase accuracy, or impulse response.

The Listening Room Experience

At The Listening Room, we take pride in offering more than just high-fidelity audio equipment. We provide expert advice, personalized service, and a commitment to helping you find the perfect sound system for your space. From delivery to custom setup, our goal is to ensure that every piece of equipment you purchase performs at its absolute best in your environment. Trust us to be your partners in the pursuit of exceptional sound.

Specifications

• Digital Inputs:
  • 1 x USB 2.0: 44.1 – 384 kHz , DSD128, DSD256 Ready Res: 16 to 32 bits
  • 1 x S/PDIF: 0.5Vpp on 75 Ohms, 44.1 -192 kHz, DSD64 (DoP) Res: 16 to 24 bits
  • 1x AES/EBU: 2Vpp on 110 Ohms, 44.1 -192 kHz, DSD64 (DoP) Res: 16 to 24 bits
  • 1 x Toslink™ : 44.1 – 96 Res.: 16 to 24 bits
  • 1 x Bluetooth™ 3.0 : 44.1, 48kHz Res: 16 bits
• Digital Output:

  • 1x  S/PDIF 0.5Vpp on 75 Ohms
  • 1x  AES/EBU 2Vpp on 110 Ohms
  • 1x Toslink™
• Transport CD-Loader
• Display: 128 X 64 White OLED graphic display
• DAC: ESS Sabre ES9018K2M SNR: 128dB (0dBFS, 1kHz, 192kHz, “A” weighted )
• THD+N: 0.0003% (0dBFS, 1kHZ, 20Hz-20kHZ)
• I/V Converter: AD8597/AD8599 ultra low distortion and ultra low noise
• Valve Output Stage:
• Number of channels: 2
• Output stage: Duble Triode, pure class A differential Totem-poleValve model: 4 x ECC83
• Output audio connectors: 2 x RCA, 2 x XLR
• Filters: 3 Digital Filters selectable by R.C.
  • FLT 1: Fast Roll-Off, linear Phase
  • FLT 2: Fast Roll-Off, minimum Phase
  • FLT 3: Slow Roll-Off, linear Phase
• Solid state output selectable
• Selectable absolute Phase
• Dimension: 45cm x 38cm x H 13cm
• Net weight: 10Kg / 22 lb
